RF372BXEQ0 05 – DOOR, LIT/OPTIONAL

RF372BXEQ0 05 – DOOR, LIT/OPTIONAL

Written by

in

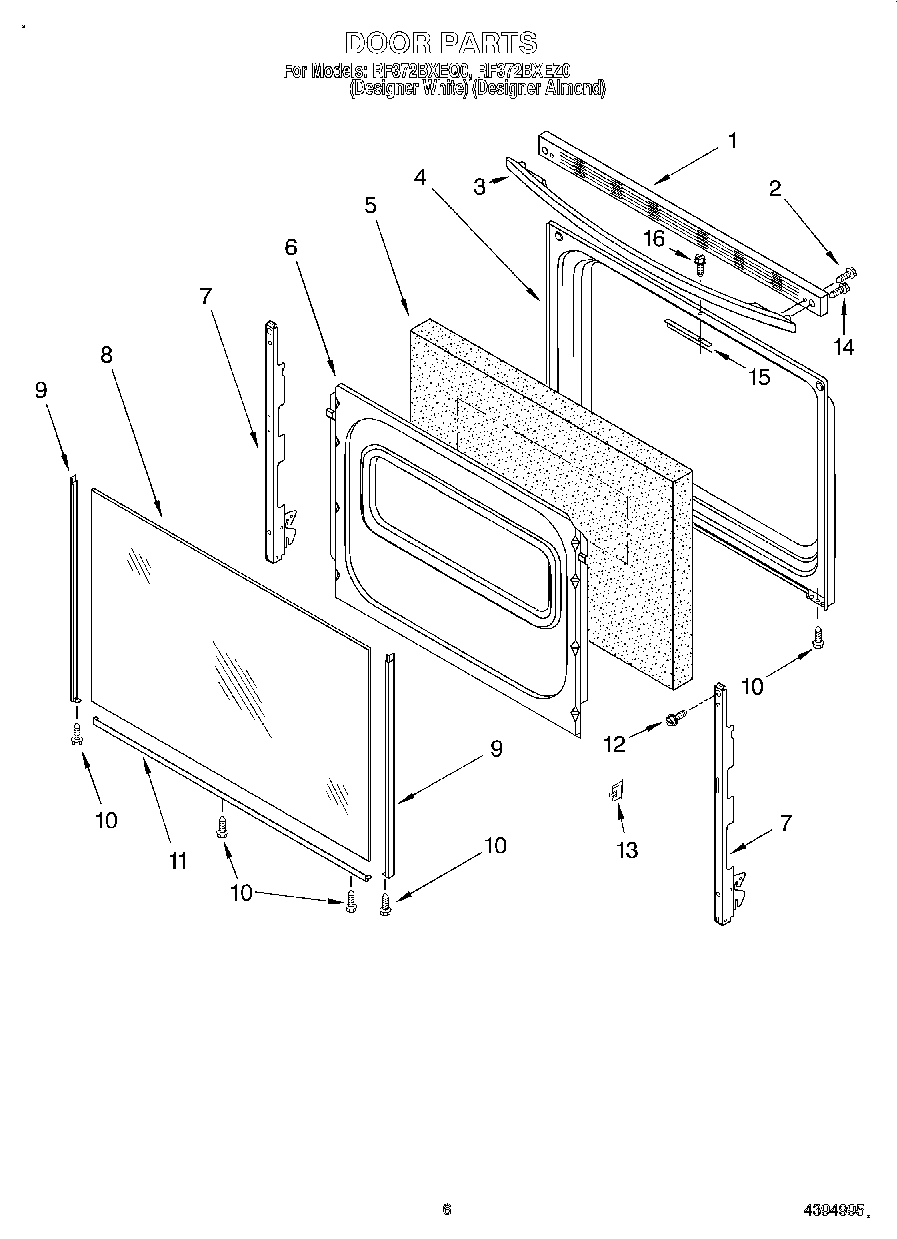

RF372BXEQ0 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	3184020 Whirlpool Oven Wire
	Harness, Wire (Door Switch)
	WP3196154 Whirlpool Screw Assembly
	Literature (Installation, Instructions (Template))
	W11396691 Whirlpool Element Receptacle and Wire Kit
	WPL 3196697
	W11244557 Whirlpool Screw
	3400964 Whirlpool Oven Clip
	3196696 Whirlpool Clip
	WPL LIT3195944
	WPL LIT3196147
	WPL 3196483
	Clip, Ground Wire
	WPL LIT3196277
1	Trim, Top (Almond)
1	WPW10016370 Whirlpool Door Trim
2	WP3196164 Whirlpool Screw
3	Handle, Door (Almond)
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	W11699790 Whirlpool Retainer
7	Hinge, Door (2)
8	Glass, Outer Door (Almond)
8	Glass, Outer Door (White)
10	W10491985 Whirlpool Screw
11	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
11	8184860 Whirlpool Oven Door Trim
12	238614 Whirlpool Bumper Hinge
13	Clip, Glass (4)
14	WP179051 Whirlpool Screw
15	Bracket, Latch
16	Golden Harvest
16	Wire (14 Ga. 200 c Brown)
16	1
16	WP3400832 Whirlpool Screw
16	paint, spray 13 oz. (coffee)
16	8212471 Whirlpool Oven Paint
16	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
16	Grease
16	18 Ga. 80~c Rating (Red)
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	350942 Whirlpool Spray Paint
16	WPL 72112
16	Platinum (Uncut)
16	Enamal, Toast (1 Qt. Uncut)
16	Paint, Spray (13 Oz.) (Platinum)
16	Toast
16	Golden Harvest (Uncut)
16	72113 Whirlpool Touch-Up Paint
16	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	511873 Whirlpool Refrigerator Paint
16	WPL 799832
16	WPW10208653 Whirlpool Insulation
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
16	Paint, Spray 13 Oz. (Avocado)
16	Paint, Touch-Up 1/2 Oz. (Coffee)
16	72109 Whirlpool Dacor Avocado Touch-Up Paint
16	285006 Whirlpool Spray
16	Wire, 25“ Roll (White 14 GA.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25` Roll (Black 14 Ga.)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	350930 Whirlpool White Spray Paint
