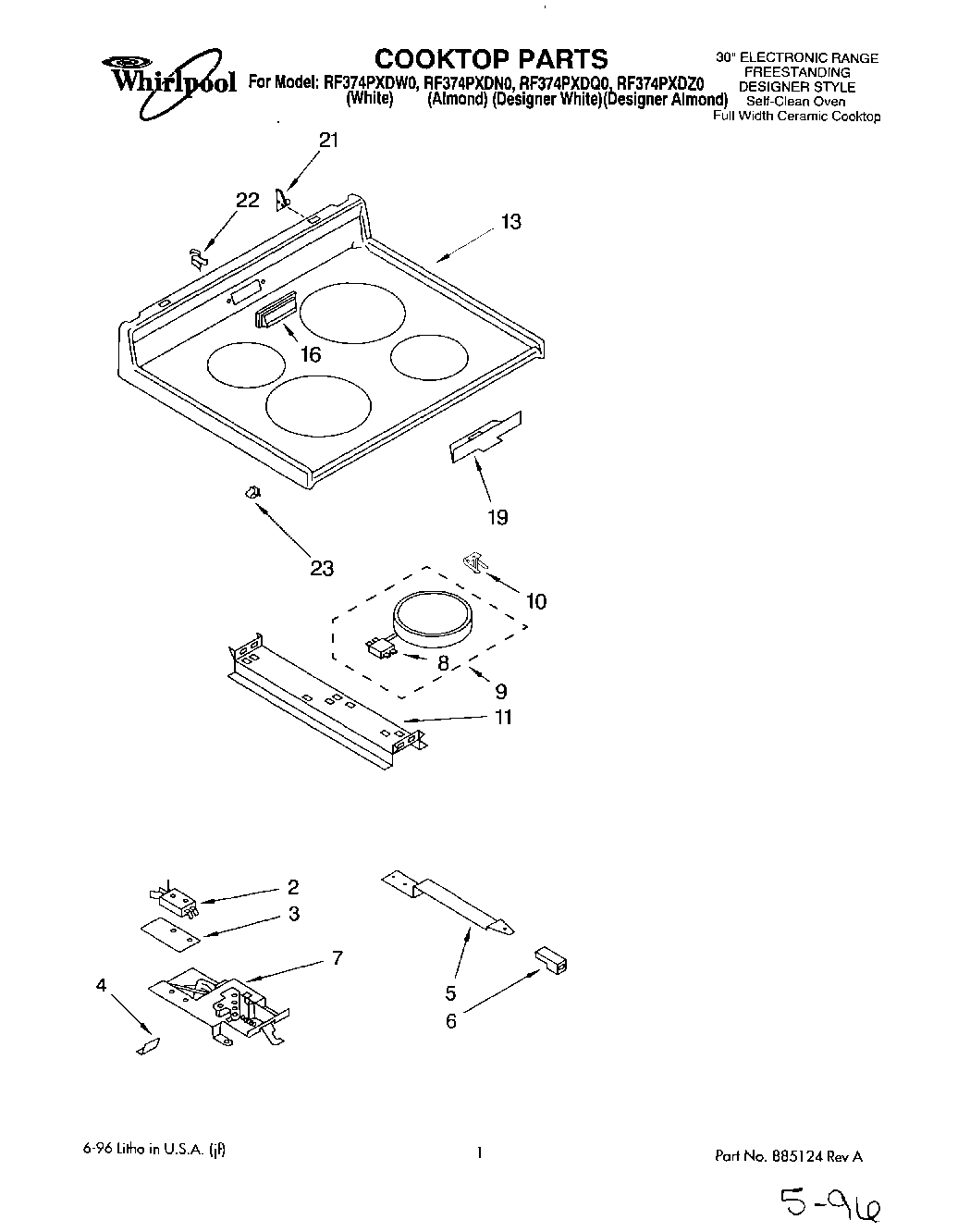

RF374PXDN0 01 – COOKTOP, LITERATURE

Products

Position	Product
	Instructions, Installation
	WPL LIT3150400
	Use and Care Guide
	Tech Sheet
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
6	Designer Almond
6	Knob, Latch
7	Latch Mechanism
8	Switch, Limit (Use W/3183200 Element)
8	Limiter, Temp. (2100W, LF-RR)
9	Element, Surface (2100W Right Rear)
9	Element, Surface (1700W Right Front)
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
11	Back Splash (Screw (4) 10AB x 1/2“)
13	Cooktop (Designer White Mdl)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop Asm. (Almond Mdl.)
16	Cover, Vent (White)
16	cover, vent (almond)
19	Shield, Probe
21	Bracket, Cooktop (Left)
21	Bracket, Cooktop (Right)
21	SCREW
22	Clip, Vent Cover
23	Clip
