RF374PXDN0 02 – CONTROL PANEL
Written by
in

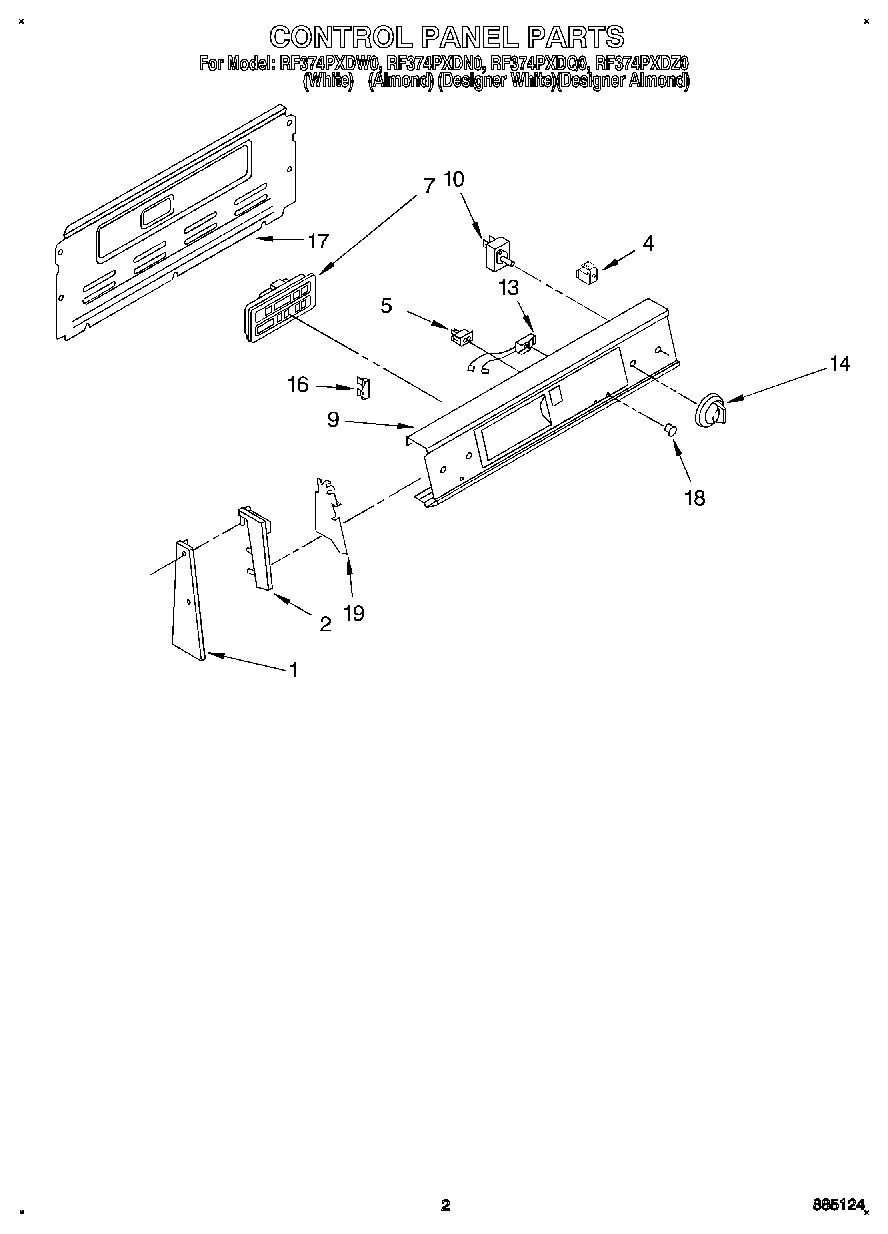

RF374PXDN0 02 – CONTROL PANEL
Products
Position
Product
1
End Trim (R.H. White)
1
End Trim R.H.
1
End Trim L.H.
1
End Trim (L.H. Almond)
1
End Trim (R.H. Almond)
1
End Trim (L.H. White)
2
End Cap, R.H. (Black)
2
End Cap L.H. (Black)
2
End Cap R.H. (Designer White)
2
End Cap L.H. (Designer White)
2
End Cap R.H. (Designer Almond)
2
End Cap L.H. (Designer Almond)
4
Adapter, Terminal
5
Switch, Rocker (White)
5
Switch, Rocker
5
Switch, Rocker (Designer Almond)
7
Electronic Control (White/Almond Mdl.)
7
Electronic Control (Designer White Mdl)
7
Timer, ERC Control (Designer Almond)
9
Panel, Control (Screw, 8-18 x 5/8 (4))
9
Panel, Control (Designer White)
9
Panel, Control (Designer Almond)
9
Panel, Control (Black)
10
WP3148952 Whirlpool Oven Infinite Switch
10
SWITCH-INF
10
Screw, 8-32 x 3/16 (2)
13
Indicator Light (Surface Unit On)
13
Light, Indicator (Hot Surface (1))
14
WPL 3188723
14
WP3196232 Whirlpool Knob
14
WP3196231 Whirlpool Knob
16
Fuse, Thermal
16
Screw (2)
17
Rear Cover Contr
17
SCREW
18
Lens, Amber
19
Shield (2)
19
WP965173 Whirlpool Dishwasher Screw
←
