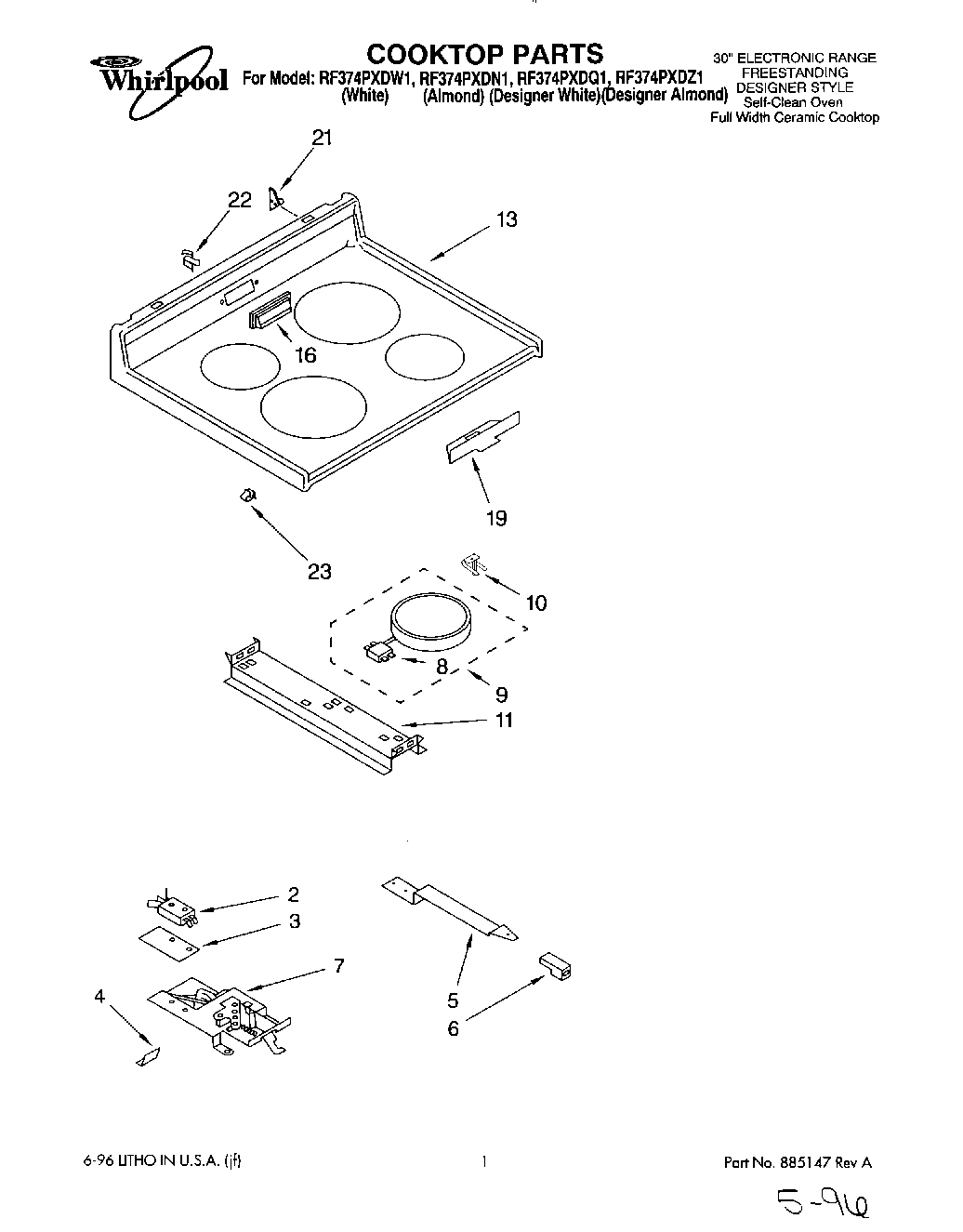

RF374PXDN1 01 – COOKTOP, LITERATURE

Products

Position	Product
	Instructions, Installation
	WPL LIT3150400
	Tech Sheet
	Use and Care Guide
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
5	Handle, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
6	Designer Almond
7	Latch Mechanism
8	Limiter, Temp. (2100W, LF-RR)
8	Limiter, Temp. (1700W, RF-LR)
9	Element, Surface (Includes No.1) (2100W, LF-RR)
9	Element, Surface (Includes No.1) (1700W, RF-LR)
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Back Splash (Screw (4) 10AB x 1/2``)
11	Bracket, (2) Element Support
13	Cooktop (Designer White Mdl)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop Asm. (Almond Mdl.)
16	cover, vent (almond)
16	Cover, Vent (White)
19	Shield, Probe
21	Bracket, Cooktop (Right)
21	Bracket, Cooktop (Left)
21	SCREW
22	Clip, Vent Cover
23	Clip
