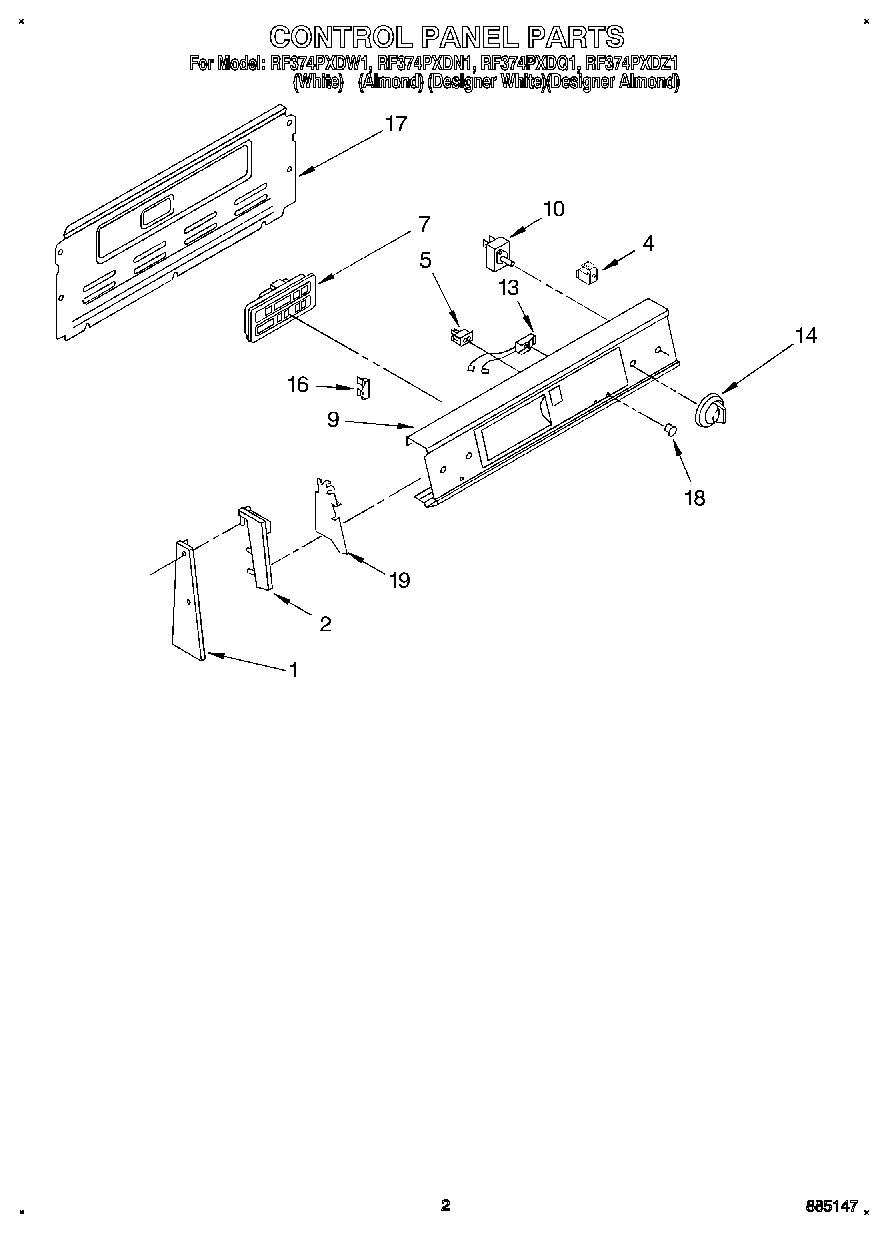

RF374PXDN1 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (L.H. White)
1	End Trim (L.H. Almond)
1	End Trim (R.H. White)
1	End Trim (R.H. Almond)
1	End Trim R.H.
1	End Trim L.H.
1	End Trim
2	End Cap L.H. (Black)
2	End Cap R.H. (Designer Almond)
2	End Cap, R.H. (Black)
2	End Caps
2	End Cap L.H. (Designer Almond)
2	End Cap L.H. (Designer White)
2	End Cap R.H. (Designer White)
4	Adapter, Terminal
5	Switch, Rocker (Designer Almond)
5	Switch, Rocker (White)
5	Switch, Rocker
7	Electronic Control (White/Almond Mdl.)
7	Electronic Control (Designer White Mdl)
7	Timer, ERC Control (Designer Almond)
9	Panel, Control (Screw, 8-18 x 5/8 (4))
9	Panel, Control (Black)
9	Panel, Control (Designer Almond)
9	Panel, Control (Designer White)
9	Panel, Control (White)
9	Panel, Control (Almond)
10	Screw, 8-32 x 3/16 (2)
10	WP3148952 Whirlpool Oven Infinite Switch
10	SWITCH-INF
13	Indicator Light (Surface Unit On)
13	Light, Indicator (Hot Surface (1))
14	WP3196232 Whirlpool Knob
14	WPL 3188723
14	WP3196231 Whirlpool Knob
16	Screw (2)
16	Fuse, Thermal
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
