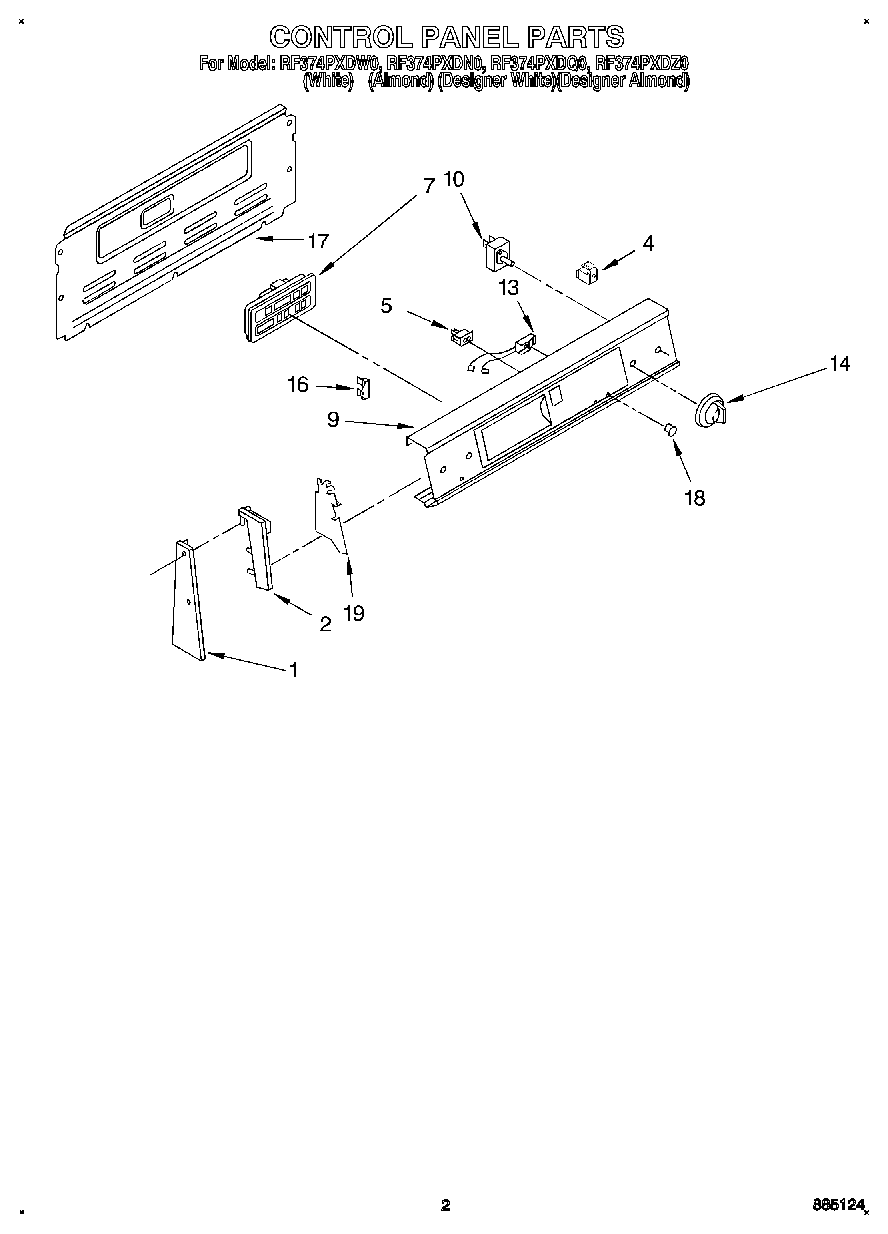

RF374PXDQ0 02 – CONTROL PANELadmin2025-04-26T12:23:48+00:00RF374PXDQ0 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Trim (R.H. White) |
| 1 | End Trim R.H. |
| 1 | End Trim L.H. |
| 1 | End Trim (L.H. Almond) |
| 1 | End Trim (R.H. Almond) |
| 1 | End Trim (L.H. White) |
| 2 | End Cap, R.H. (Black) |
| 2 | End Cap L.H. (Black) |
| 2 | End Cap R.H. (Designer White) |
| 2 | End Cap L.H. (Designer White) |
| 2 | End Cap R.H. (Designer Almond) |
| 2 | End Cap L.H. (Designer Almond) |
| 4 | Adapter, Terminal |
| 5 | Switch, Rocker (White) |
| 5 | Switch, Rocker |
| 5 | Switch, Rocker (Designer Almond) |
| 7 | Electronic Control (White/Almond Mdl.) |
| 7 | Electronic Control (Designer White Mdl) |
| 7 | Timer, ERC Control (Designer Almond) |
| 9 | Panel, Control (Screw, 8-18 x 5/8 (4)) |
| 9 | Panel, Control (Designer White) |
| 9 | Panel, Control (Designer Almond) |
| 9 | Panel, Control (Black) |
| 10 | WP3148952 Whirlpool Oven Infinite Switch |
| 10 | SWITCH-INF |
| 10 | Screw, 8-32 x 3/16 (2) |
| 13 | Indicator Light (Surface Unit On) |
| 13 | Light, Indicator (Hot Surface (1)) |
| 14 | WPL 3188723 |
| 14 | WP3196232 Whirlpool Knob |
| 14 | WP3196231 Whirlpool Knob |
| 16 | Fuse, Thermal |
| 16 | Screw (2) |
| 17 | Rear Cover Contr |
| 17 | SCREW |
| 18 | Lens, Amber |
| 19 | Shield (2) |
| 19 | WP965173 Whirlpool Dishwasher Screw |
