RF374PXDQ1 02 – CONTROL PANEL
Written by
in

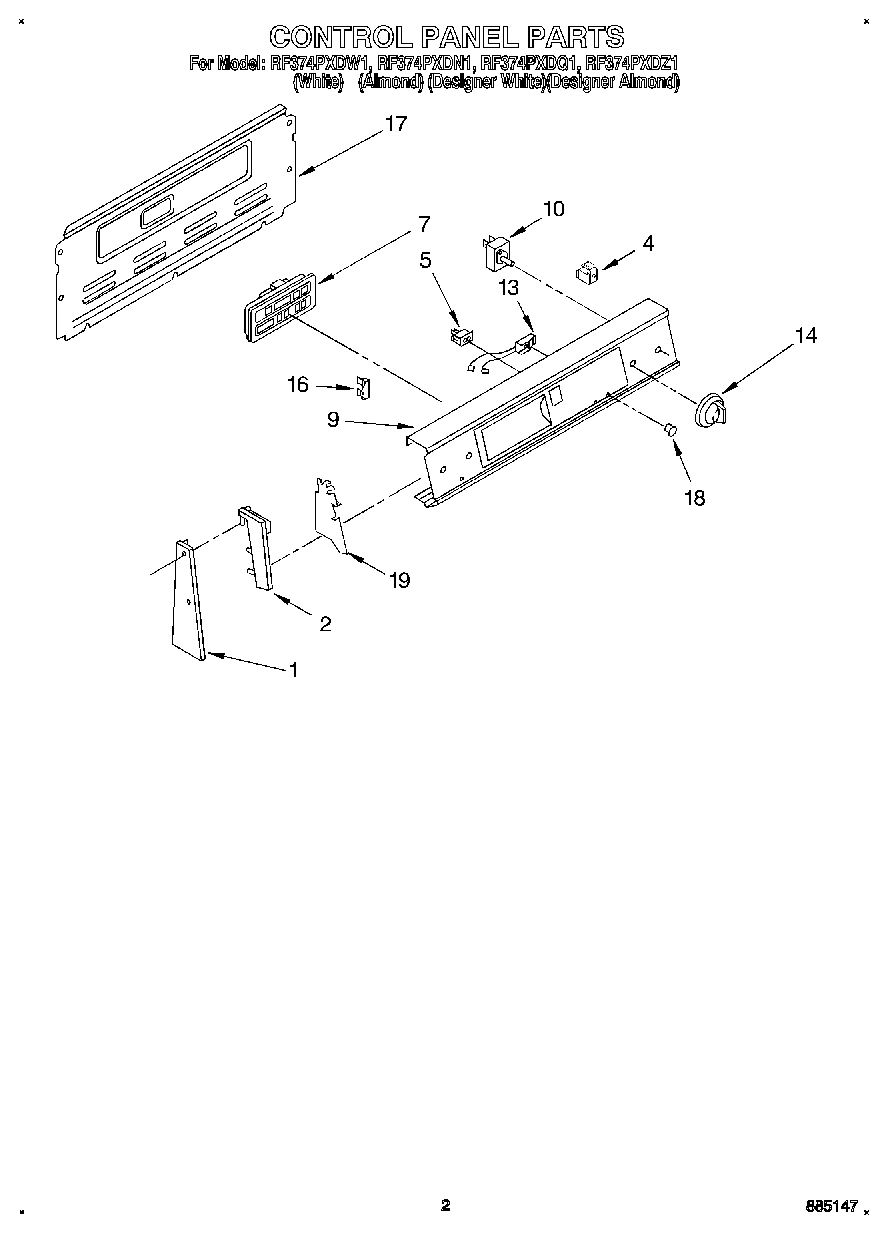

RF374PXDQ1 02 – CONTROL PANEL
Products
Position
Product
1
End Trim (L.H. White)
1
End Trim (L.H. Almond)
1
End Trim (R.H. White)
1
End Trim (R.H. Almond)
1
End Trim R.H.
1
End Trim L.H.
1
End Trim
2
End Cap L.H. (Black)
2
End Cap R.H. (Designer Almond)
2
End Cap, R.H. (Black)
2
End Caps
2
End Cap L.H. (Designer Almond)
2
End Cap L.H. (Designer White)
2
End Cap R.H. (Designer White)
4
Adapter, Terminal
5
Switch, Rocker (Designer Almond)
5
Switch, Rocker (White)
5
Switch, Rocker
7
Electronic Control (White/Almond Mdl.)
7
Electronic Control (Designer White Mdl)
7
Timer, ERC Control (Designer Almond)
9
Panel, Control (Screw, 8-18 x 5/8 (4))
9
Panel, Control (Black)
9
Panel, Control (Designer Almond)
9
Panel, Control (Designer White)
9
Panel, Control (White)
9
Panel, Control (Almond)
10
Screw, 8-32 x 3/16 (2)
10
WP3148952 Whirlpool Oven Infinite Switch
10
SWITCH-INF
13
Indicator Light (Surface Unit On)
13
Light, Indicator (Hot Surface (1))
14
WP3196232 Whirlpool Knob
14
WPL 3188723
14
WP3196231 Whirlpool Knob
16
Screw (2)
16
Fuse, Thermal
17
Rear Cover Contr
17
SCREW
18
Lens, Amber
19
Shield (2)
19
WP965173 Whirlpool Dishwasher Screw
←
