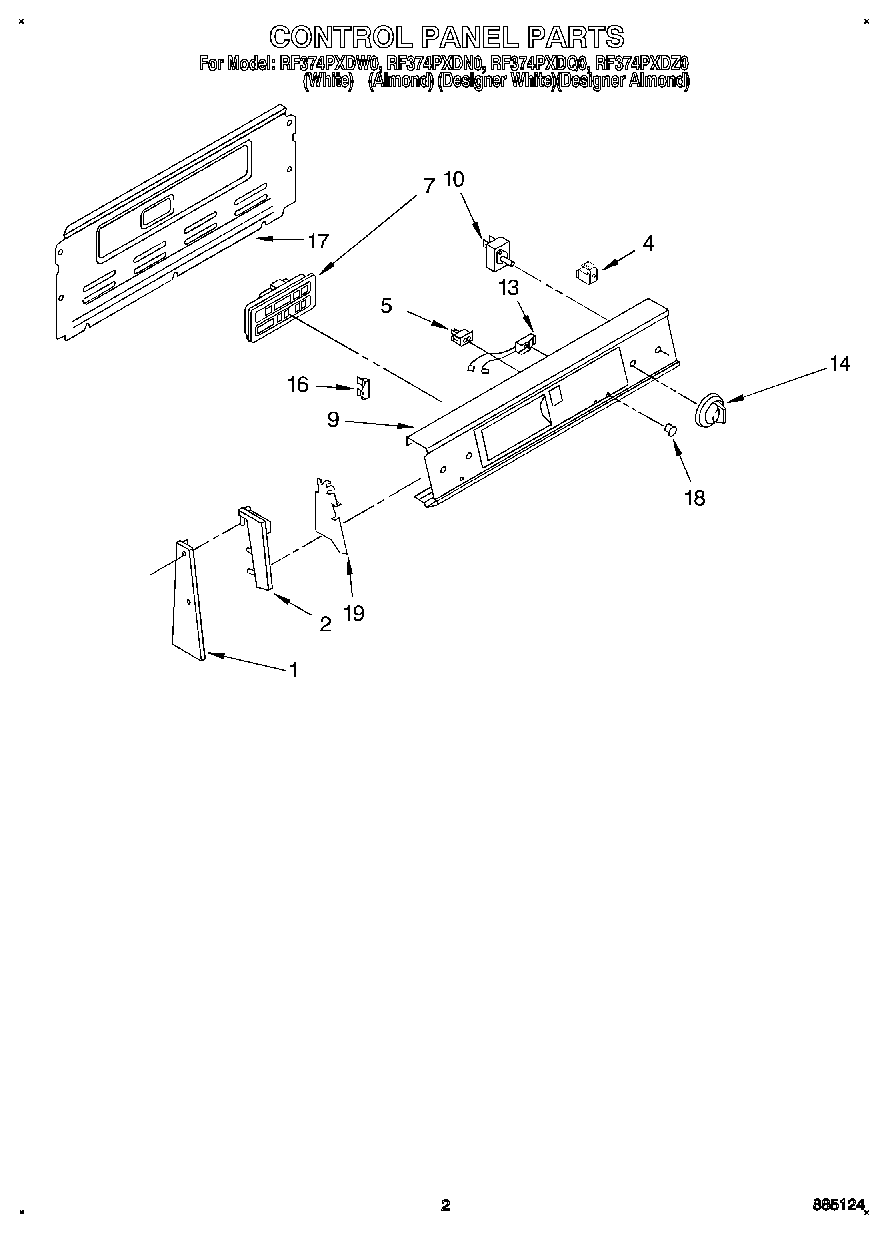

RF374PXDW0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (R.H. White)
1	End Trim R.H.
1	End Trim L.H.
1	End Trim (L.H. Almond)
1	End Trim (R.H. Almond)
1	End Trim (L.H. White)
2	End Cap, R.H. (Black)
2	End Cap L.H. (Black)
2	End Cap R.H. (Designer White)
2	End Cap L.H. (Designer White)
2	End Cap R.H. (Designer Almond)
2	End Cap L.H. (Designer Almond)
4	Adapter, Terminal
5	Switch, Rocker (White)
5	Switch, Rocker
5	Switch, Rocker (Designer Almond)
7	Electronic Control (White/Almond Mdl.)
7	Electronic Control (Designer White Mdl)
7	Timer, ERC Control (Designer Almond)
9	Panel, Control (Screw, 8-18 x 5/8 (4))
9	Panel, Control (Designer White)
9	Panel, Control (Designer Almond)
9	Panel, Control (Black)
10	WP3148952 Whirlpool Oven Infinite Switch
10	SWITCH-INF
10	Screw, 8-32 x 3/16 (2)
13	Indicator Light (Surface Unit On)
13	Light, Indicator (Hot Surface (1))
14	WPL 3188723
14	WP3196232 Whirlpool Knob
14	WP3196231 Whirlpool Knob
16	Fuse, Thermal
16	Screw (2)
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
