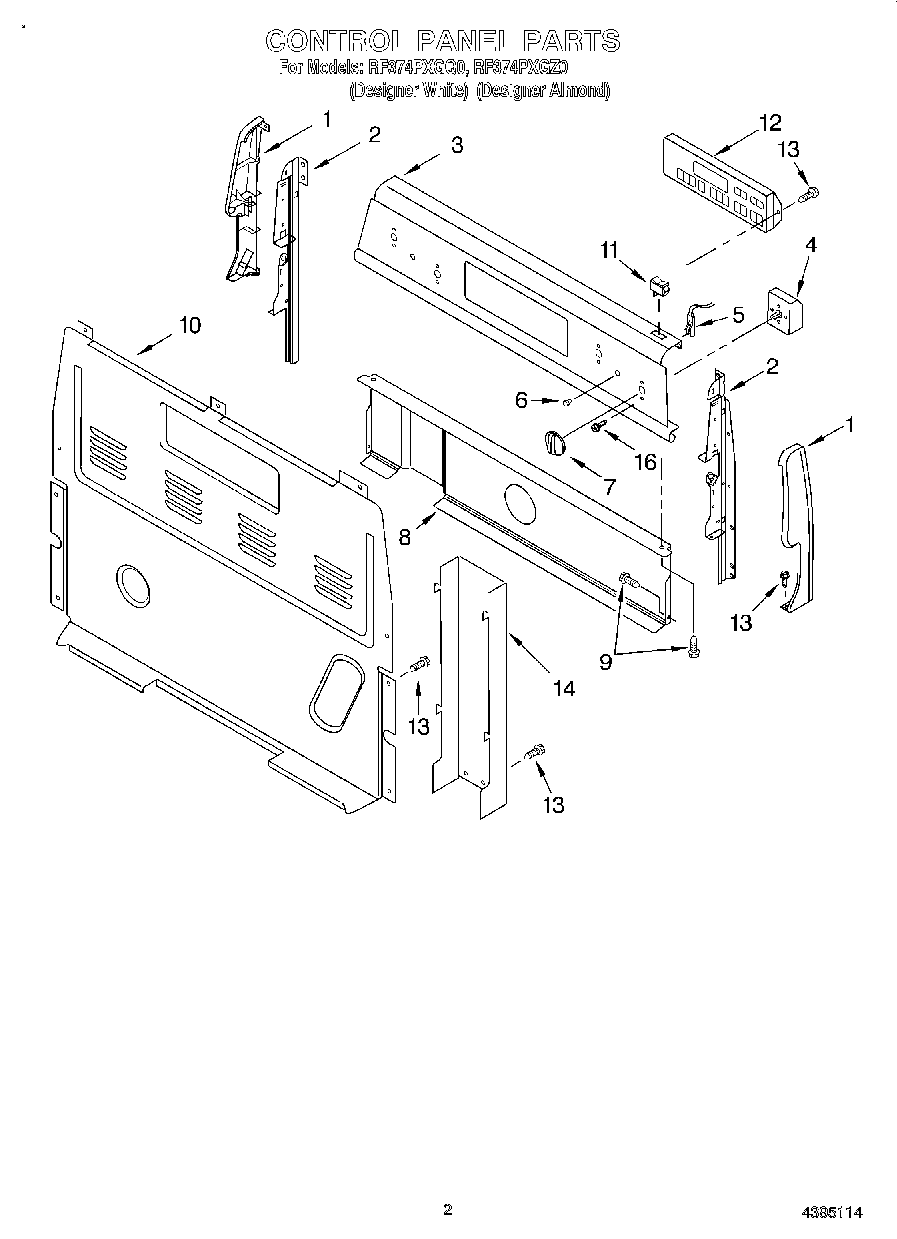

RF374PXGQ0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Almond Right Hand)
1	Endcap (Almond Left Hand)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
2	Support, Endcap (Left Hand)
2	Support, Endcap (Right Hand)
3	Panel, Backguard (White)
3	Panel, Backguard (Almond)
4	WP3148952 Whirlpool Oven Infinite Switch
4	SWITCH-INF
5	Light, Indicator (Surface Unit (2))
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4) (Almond)
7	WP3196232 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	3149360 Whirlpool Light Switch
11	Switch, Rocker (Almond)
12	Control, Range (White)
12	Control, Range (Almond)
13	SCREW
14	WPW10326122 Whirlpool Black Cover
16	WP3400882 Whirlpool Screw
