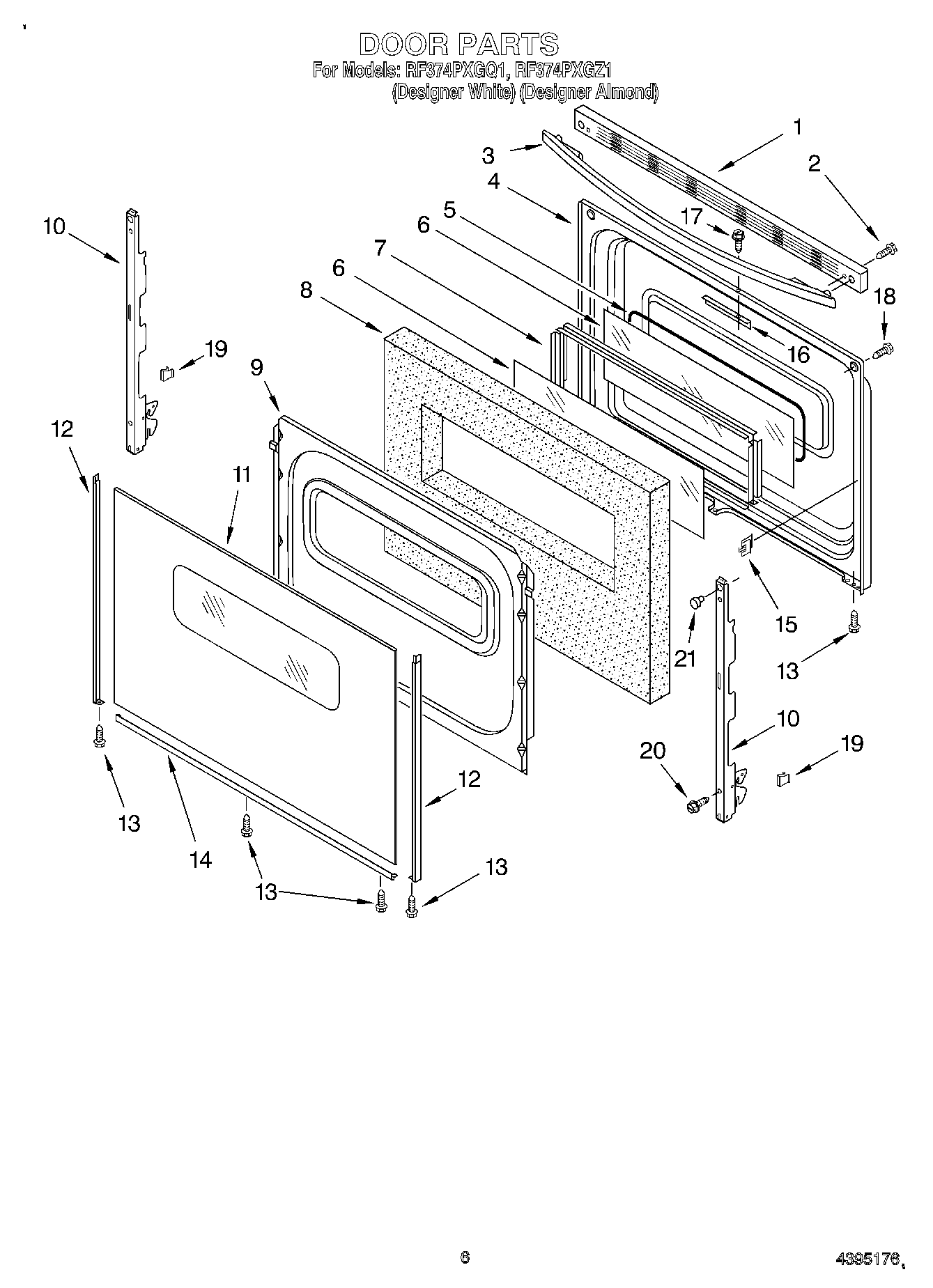

RF374PXGZ1 05 – DOOR, OPTIONAL

RF374PXGZ1 05 – DOOR, OPTIONAL

Written by

in

RF374PXGZ1 05 – DOOR, OPTIONAL

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
1	Trim, Door Top (Almond)
2	WP3196164 Whirlpool Screw
3	WPW10202216 Whirlpool Door Handle
3	Handle, Door (Almond)
4	Liner, Door
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	WPW10278991 Whirlpool Insulation
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	Glass, Outer Door (Almond)
11	WP9762476 Whirlpool Door Glass
13	W10491985 Whirlpool Screw
14	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
14	8184860 Whirlpool Oven Door Trim
15	Clip, Glass (4)
16	Bracket, Latch
17	WP3400832 Whirlpool Screw
18	WP179051 Whirlpool Screw
19	WP3196925 Whirlpool Clip Assembly
20	WP3196175 Whirlpool Screw
21	18 Ga. 80~c Rating (Red)
21	Wire (12 Ga. 150 c Black)
21	Wire (14 Ga. 150 c Yellow)
21	Wire (14 Ga. 150 c Orange)
21	Wire (14 Ga. 200 c Brown)
21	1
21	Golden Harvest
21	W11244557 Whirlpool Screw
21	WPL 8272999
21	Harness, Wire (Door Switch)
21	Harness, Wire (Oven Light)
21	WPL 8053633
21	WP3196154 Whirlpool Screw Assembly
21	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
21	Grease
21	3184020 Whirlpool Oven Wire
21	8212471 Whirlpool Oven Paint
21	Wire (14 Ga. 150 c Green)
21	Wire (14 Ga. 150 c Brown)
21	511873 Whirlpool Refrigerator Paint
21	350942 Whirlpool Spray Paint
21	WPL 72112
21	Platinum (Uncut)
21	Enamal, Toast (1 Qt. Uncut)
21	Paint, Spray (13 Oz.) (Platinum)
21	Toast
21	Golden Harvest (Uncut)
21	72113 Whirlpool Touch-Up Paint
21	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
21	Almond (Uncut)
21	WP72107 Whirlpool Touchup
21	799344 Whirlpool Refrigerator Paint
21	72017 Whirlpool Appliance Touch-Up Paint White
21	350956 Whirlpool Spray Assembly
21	WPL 799832
21	238614 Whirlpool Bumper Hinge
21	WPW10208653 Whirlpool Insulation
21	Wire (14 Ga. 150 c Blue)
21	242831 Whirlpool Oven Wire
21	Clip, Ground Wire
21	3400964 Whirlpool Oven Clip
21	814381 Whirlpool Pin
21	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
21	Paint, Spray 13 Oz. (Avocado)
21	paint, spray 13 oz. (coffee)
21	Paint, Touch-Up 1/2 Oz. (Coffee)
21	72109 Whirlpool Dacor Avocado Touch-Up Paint
21	285006 Whirlpool Spray
21	Wire, 25“ Roll (White 14 GA.)
21	Wire, 25` Roll (Red 14 Ga.)
21	Wire, 25` Roll (Black 14 Ga.)
21	FOIL, ALUMINUM OVEN (18“ X 25 )
21	350930 Whirlpool White Spray Paint
