RF3750XPW0 05 – LIT/OPTIONAL

RF3750XPW0 05 – LIT/OPTIONAL

Written by

in

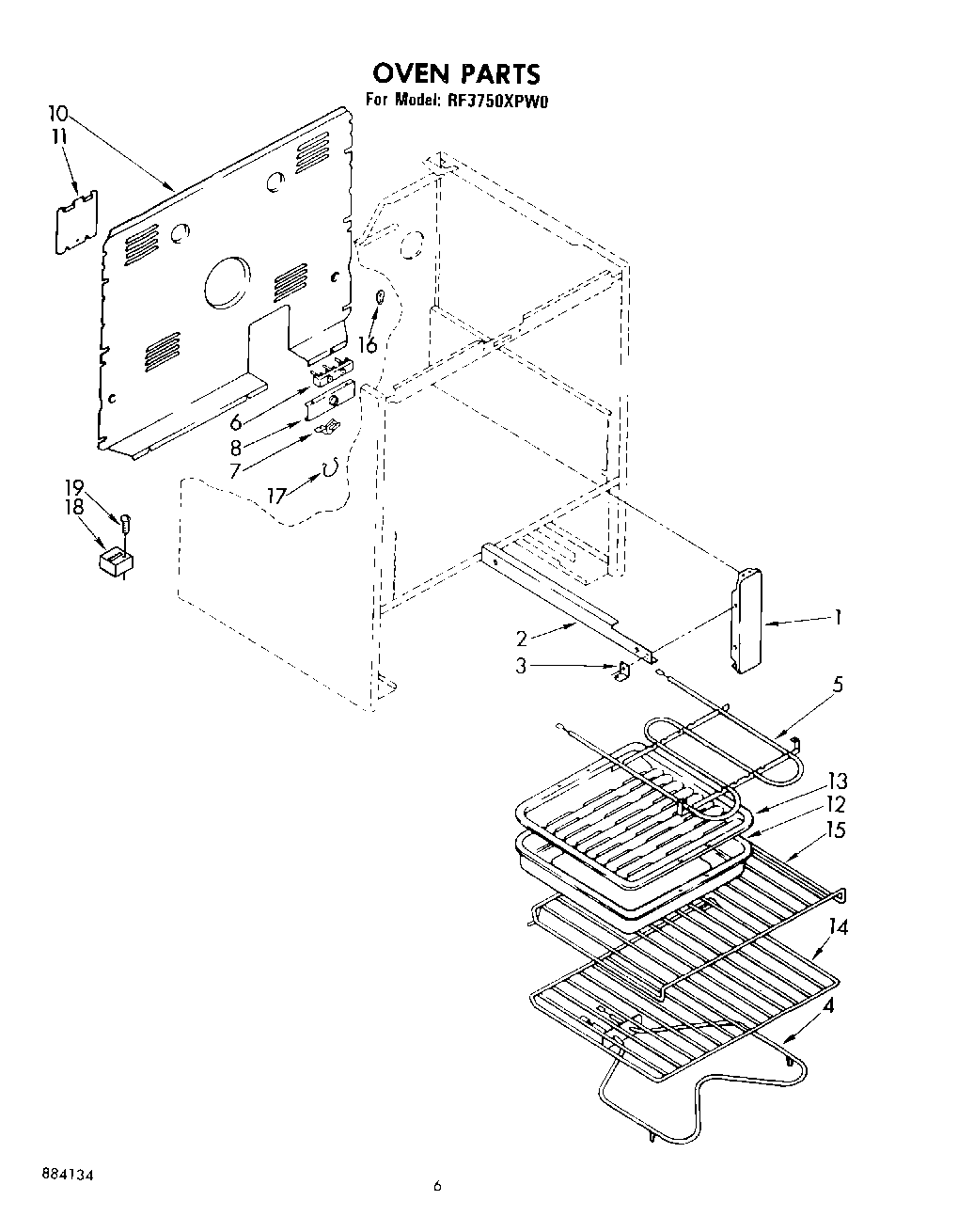

RF3750XPW0 05 – LIT/OPTIONAL

Products

Position	Product
	WPL LIT313473
	WPL 799832
	WPL LIT884134
	WPL LIT313277
	WPL LIT313358
1	Bracket, Mounting (2)
2	rail l.h. (includes illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
4	WP312309 Whirlpool Bake Element
5	Unit, Broil (208V)
5	Screw, 10-32 x 5/8 (4)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
16	Screw, 10A x 1/2 (2) (Black)
16	WPL 311982
17	16515 Whirlpool Clip
18	Block, Balance
19	Wire (14 Ga. 200 c Brown)
19	Golden Harvest (Uncut)
19	paint, spray 13 oz. (coffee)
19	Rotisserie Kit (RCK 81)
19	1
19	Enamel, Coffee (1 Qt. Uncut)
19	Enamel, New Avocado (1 Qt. Uncut)
19	Grease
19	WPL 79983
19	White
19	8212471 Whirlpool Oven Paint
19	Leveler (Thinner) (2oz.)
19	340184 Whirlpool Screw
19	18 Ga. 80~c Rating (Red)
19	Wire (12 Ga. 150 c Black)
19	511873 Whirlpool Refrigerator Paint
19	350942 Whirlpool Spray Paint
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	350930 Whirlpool White Spray Paint
19	WPW10208653 Whirlpool Insulation
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	Wire (14 Ga. 150 c Yellow)
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	Paint, Spray 13 Oz. (Avocado)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	Wire, 25` Roll (Black 14 Ga.)
19	350956 Whirlpool Spray Assembly
