RF375PCYN1 04 – UNIT, LIT/OPTIONAL

RF375PCYN1 04 – UNIT, LIT/OPTIONAL

Written by

in

RF375PCYN1 04 – UNIT, LIT/OPTIONAL

Products

Position	Product
	WPL LIT885034
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Yellow)
	Paint, Spray 13 Oz. (Avocado)
	paint, spray 13 oz. (coffee)
	Paint, Touch-Up 1/2 Oz. (Coffee)
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	285006 Whirlpool Spray
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (12 Ga. 150 c Black)
	Wiring Diagram
	Instructions, Installation
	WPL LIT3150278
	Grease
	8212471 Whirlpool Oven Paint
	Leveler (Thinner) (2oz.)
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	Enamal, Toast (1 Qt. Uncut)
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WP72107 Whirlpool Touchup
	Golden Harvest (Uncut)
	Golden Harvest
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	Platinum (Uncut)
	WPL 72112
	350930 Whirlpool White Spray Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	350956 Whirlpool Spray Assembly
	WPL 799832
	511873 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	72113 Whirlpool Touch-Up Paint

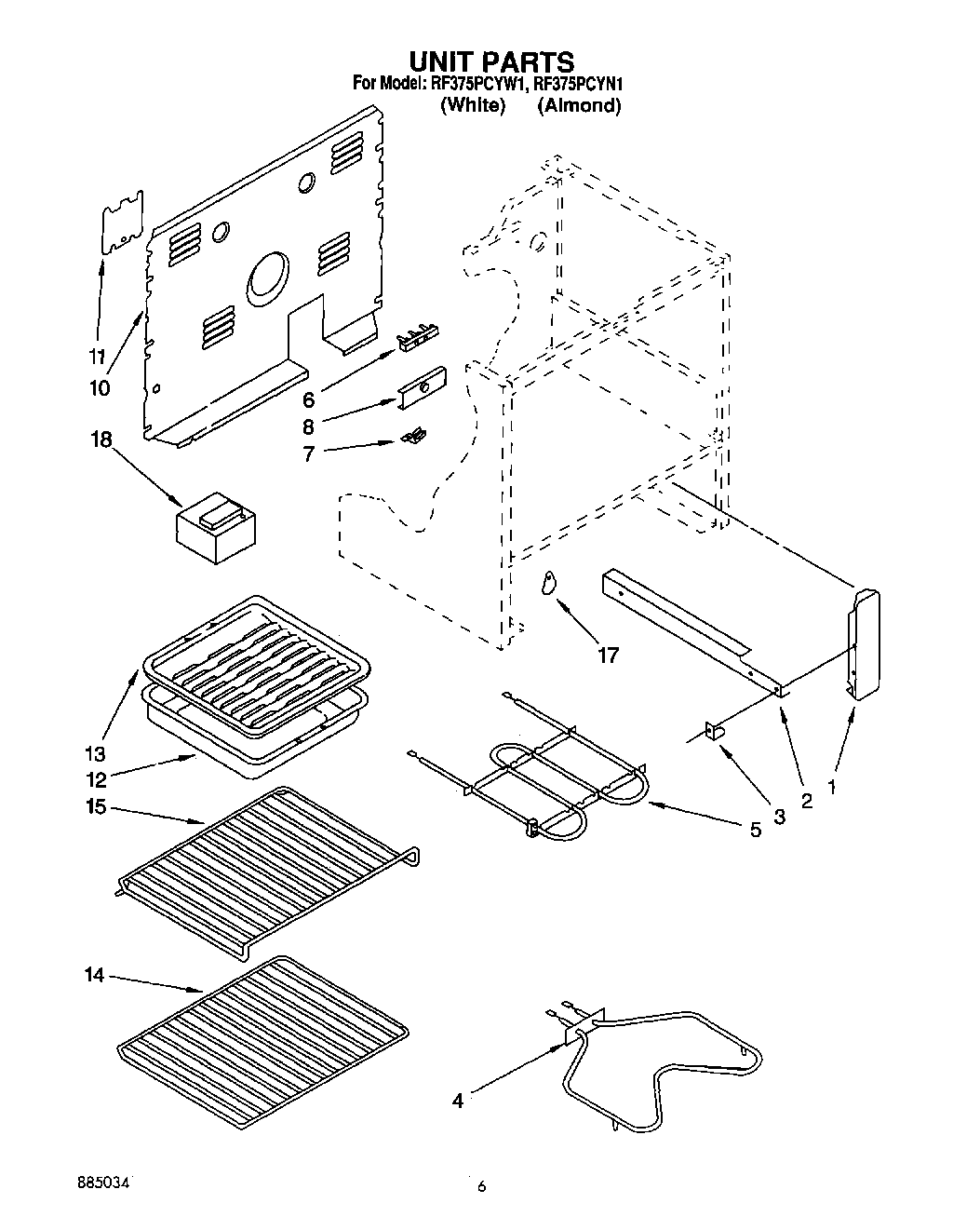

1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP112432 Whirlpool Nut Assembly
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Screw (2)
17	WPL 311982
18	Block, Balance
18	340184 Whirlpool Screw
