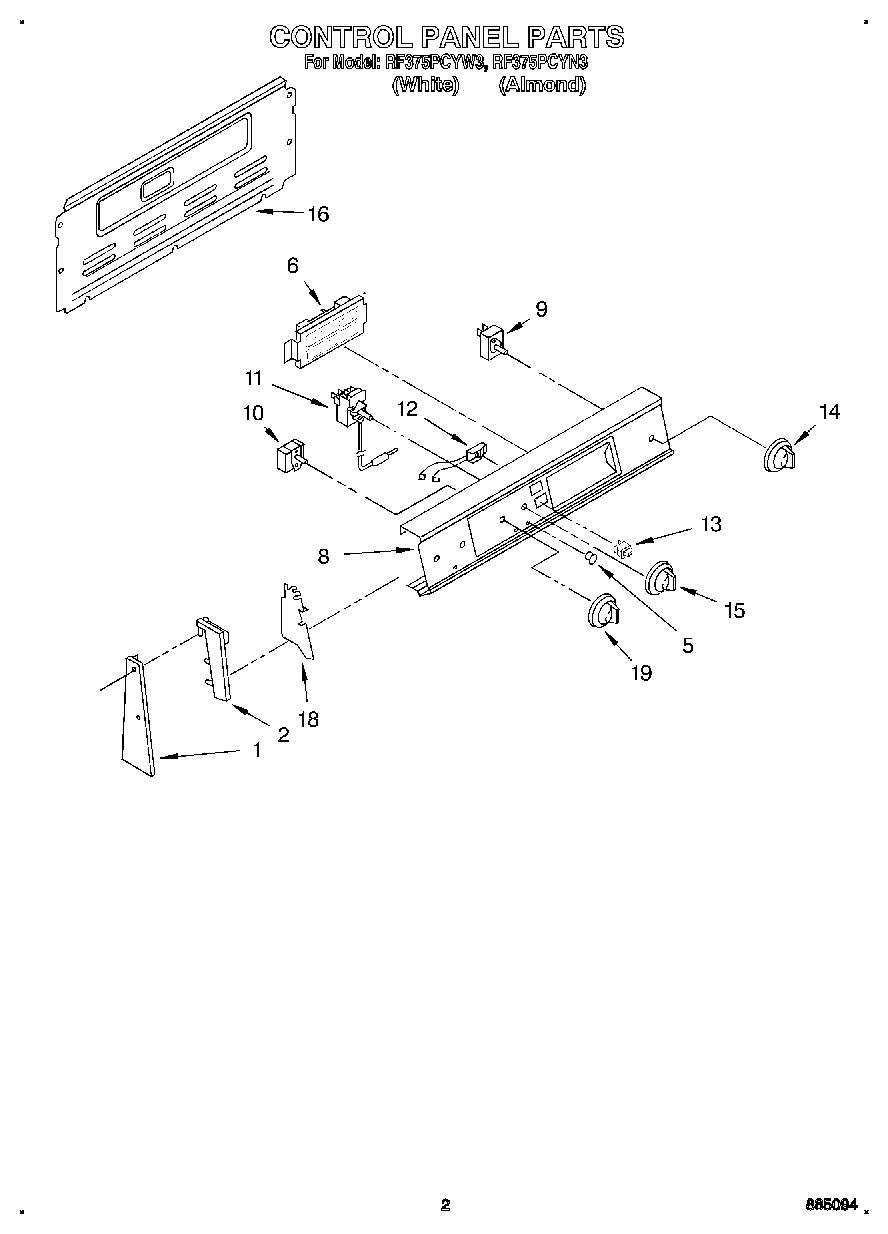

RF375PCYN3 02 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
5	Lens, Amber
6	Timer, Electronic
8	Panel, Control
9	WP3149400 Whirlpool Oven Infinite Switch
9	WP3149404 Whirlpool Oven Surface Element Switch
9	Screw, 8-32 x 3/16 (2)
10	Switch, Selector
11	WP313808 Whirlpool Screw
11	98005642 Whirlpool Clip
11	Thermostat, 0ven Pyro
12	Light, Indicator (250V)
12	Light, Indicator
13	Switch, Rocker
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob, Temp
16	Rear Cover Contr
16	SCREW
18	Shield (2)
18	WP965173 Whirlpool Dishwasher Screw
19	Knob (Selector)
