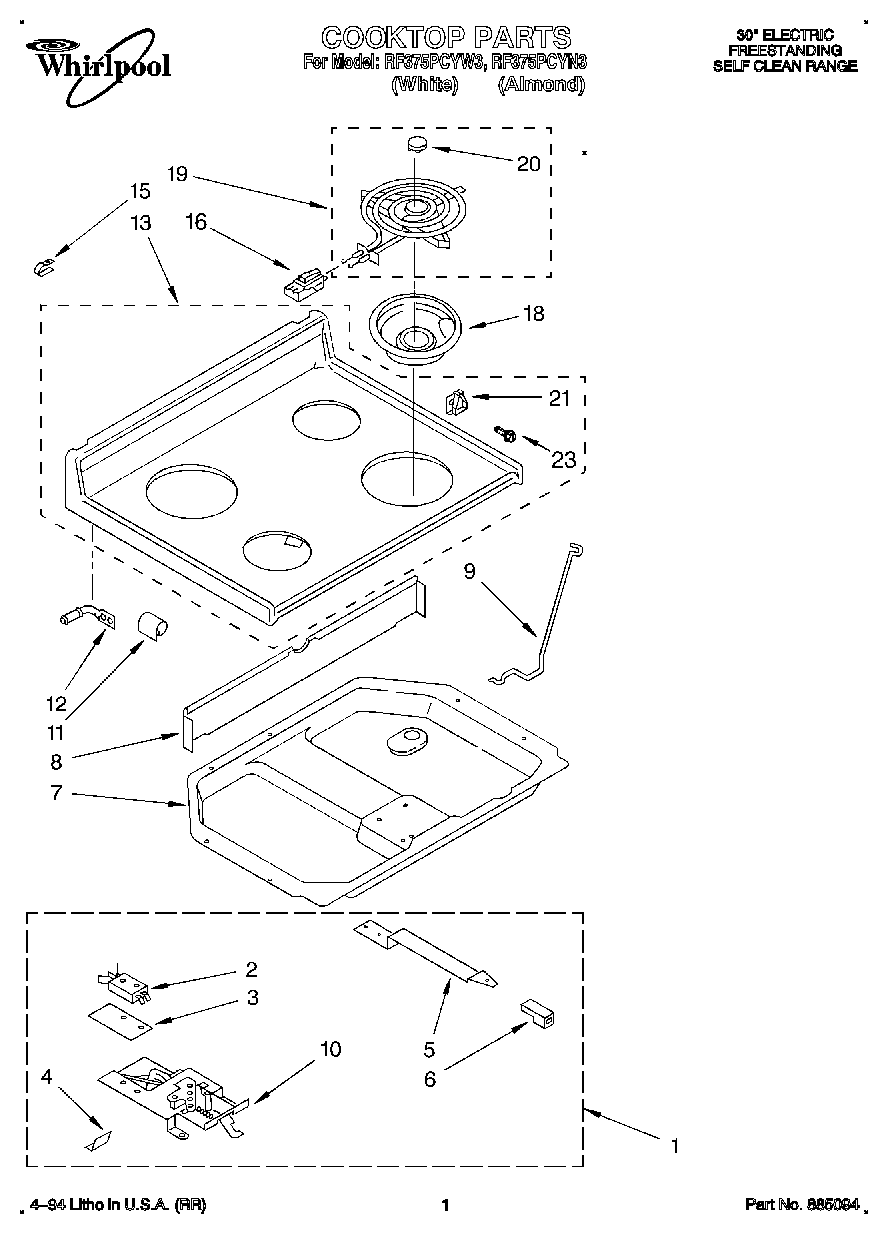

RF375PCYW3 01 – COOKTOP

Products

Position	Product
1	Latch Asm Complete W/Wiring Harness
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	WP3390631 Whirlpool Screw
7	Box, Burner
8	Shield, Wiring
9	Rod, Cooktop
10	Latch Mechanism
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
16	WP313808 Whirlpool Screw
16	WP4332752 Whirlpool Clip
18	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
18	WPW10290350 Whirlpool Stove Drip Bowl
19	WP660532 Whirlpool Oven Surface Element
19	WP660533 Whirlpool Oven 8" Surface Element
20	Medallion (4)
23	814103 Whirlpool Clip
