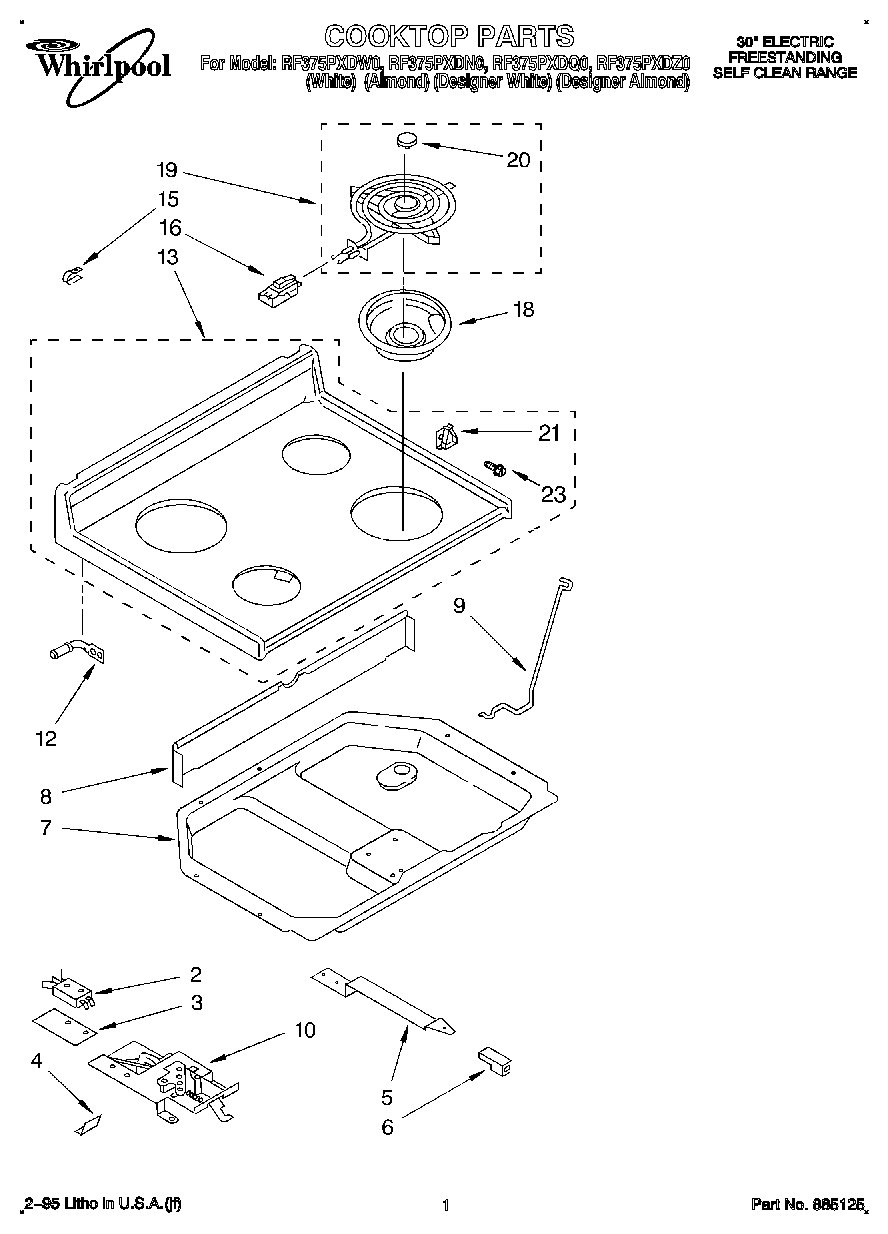

RF375PXDW0 01 – COOKTOP

RF375PXDW0 01 – COOKTOP

Written by

in

RF375PXDW0 01 – COOKTOP

Products

PositionProduct
2Safety Switch
2Screw
3Insulator, Switch
4Screw
4Shield, Latch
5Handle, Latch
5Handle, Latch
5Screw
6Knob, Latch
6Designer Almond
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
7WP3390631 Whirlpool Screw
7Box, Burner
8Shield, Wiring
9Rod, Cooktop
10Latch Mechanism
12Pin, Cooktop (2)
13Cooktop (White)
13Cooktop (Almond)
15SCREW
15WP308605 Whirlpool Refrigerator Clamp
16WP4332752 Whirlpool Clip
16WP313808 Whirlpool Screw
18DRIP BOWL 8" W/HOLE CHROME
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
18WPW10290350 Whirlpool Stove Drip Bowl
18WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
19WP660533 Whirlpool Oven 8" Surface Element
19WP660532 Whirlpool Oven Surface Element
20Medallion (4)
23814103 Whirlpool Clip
