RF375PXEQ0 05 – DOOR, LIT/OPTIONAL

RF375PXEQ0 05 – DOOR, LIT/OPTIONAL

Written by

in

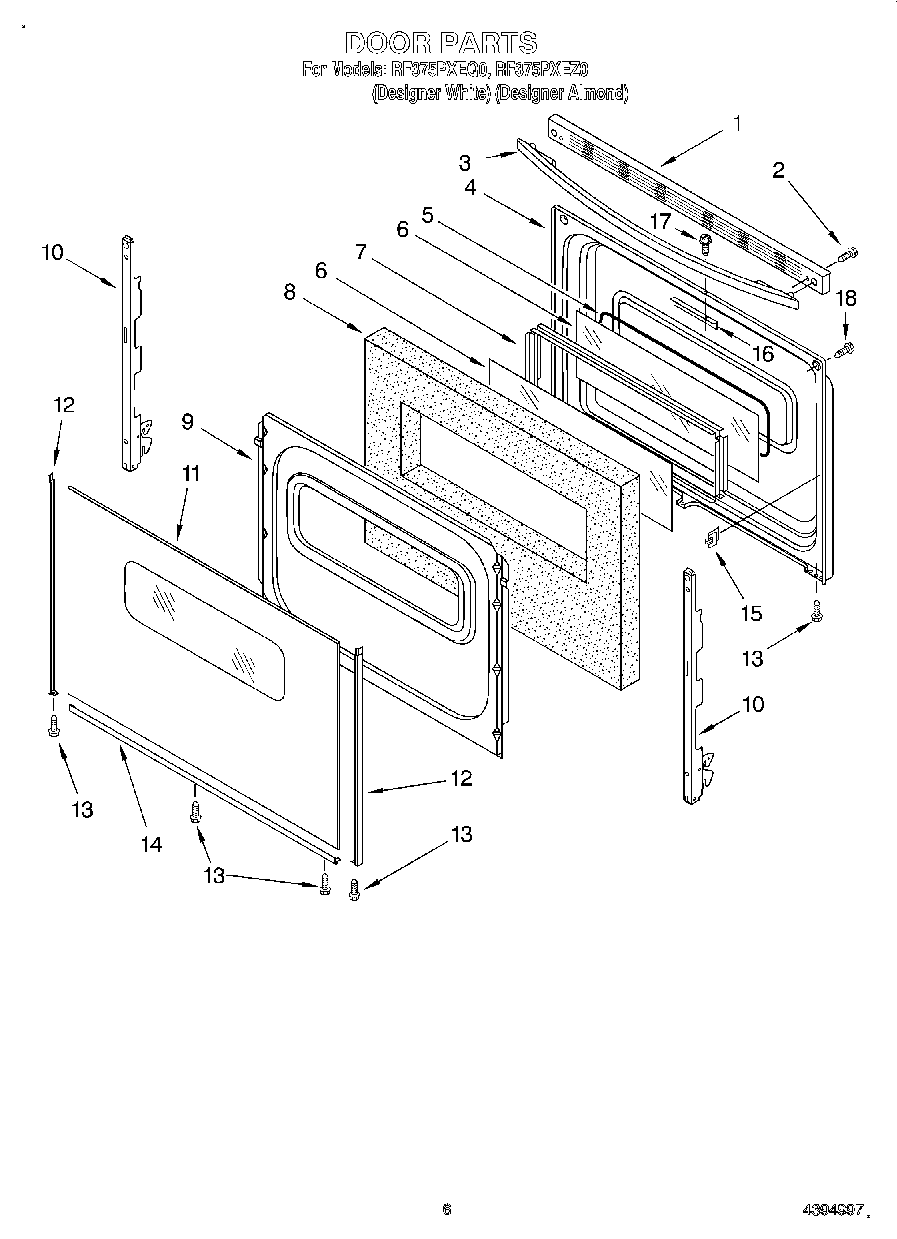

RF375PXEQ0 05 – DOOR, LIT/OPTIONAL

Products

PositionProduct
Literature (Installation, Instructions (Template))
WPL LIT3196277
WP3196154 Whirlpool Screw Assembly
3196696 Whirlpool Clip
Harness, Wire (Door Switch)
3184020 Whirlpool Oven Wire
3400964 Whirlpool Oven Clip
W11396691 Whirlpool Element Receptacle and Wire Kit
WPL 3196697
WPL LIT3196133
WPL LIT3195944
WPL 3196138
1238614 Whirlpool Bumper Hinge
1Trim, Top (Almond)
1WPW10016370 Whirlpool Door Trim
2WP3196164 Whirlpool Screw
3WPW10202216 Whirlpool Door Handle
3Handle, Door (Almond)
4Liner, Door
58522415 Whirlpool Oven Wind Gasket
6WP9758164 Whirlpool Door Glass
7Frame, Glass
8Insulation, Door
99761499 Whirlpool Oven Retainer
10WP8053807 Whirlpool Oven Door Hinge
11Glass, Outer (Almond)
11WP9762476 Whirlpool Door Glass
13W10491985 Whirlpool Screw
148184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
148184860 Whirlpool Oven Door Trim
15Clip, Glass (4)
16Bracket, Latch
17WP3400832 Whirlpool Screw
18Wire (14 Ga. 200 c Brown)
181
188212471 Whirlpool Oven Paint
188273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
18Paint, Spray 13 Oz. (Avocado)
18Grease
18Golden Harvest
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18511873 Whirlpool Refrigerator Paint
18350942 Whirlpool Spray Paint
18WPL 72112
18Platinum (Uncut)
18Enamal, Toast (1 Qt. Uncut)
18Paint, Spray (13 Oz.) (Platinum)
18Toast
18Golden Harvest (Uncut)
1872113 Whirlpool Touch-Up Paint
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
18Almond (Uncut)
18WP72107 Whirlpool Touchup
18799344 Whirlpool Refrigerator Paint
1872017 Whirlpool Appliance Touch-Up Paint White
18350956 Whirlpool Spray Assembly
18WPL 799832
18WPW10208653 Whirlpool Insulation
18FOIL, ALUMINUM OVEN (18“ X 25 )
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
18Wire (14 Ga. 150 c Blue)
18242831 Whirlpool Oven Wire
18WP179051 Whirlpool Screw
18W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18paint, spray 13 oz. (coffee)
18Paint, Touch-Up 1/2 Oz. (Coffee)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18285006 Whirlpool Spray
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18350930 Whirlpool White Spray Paint
