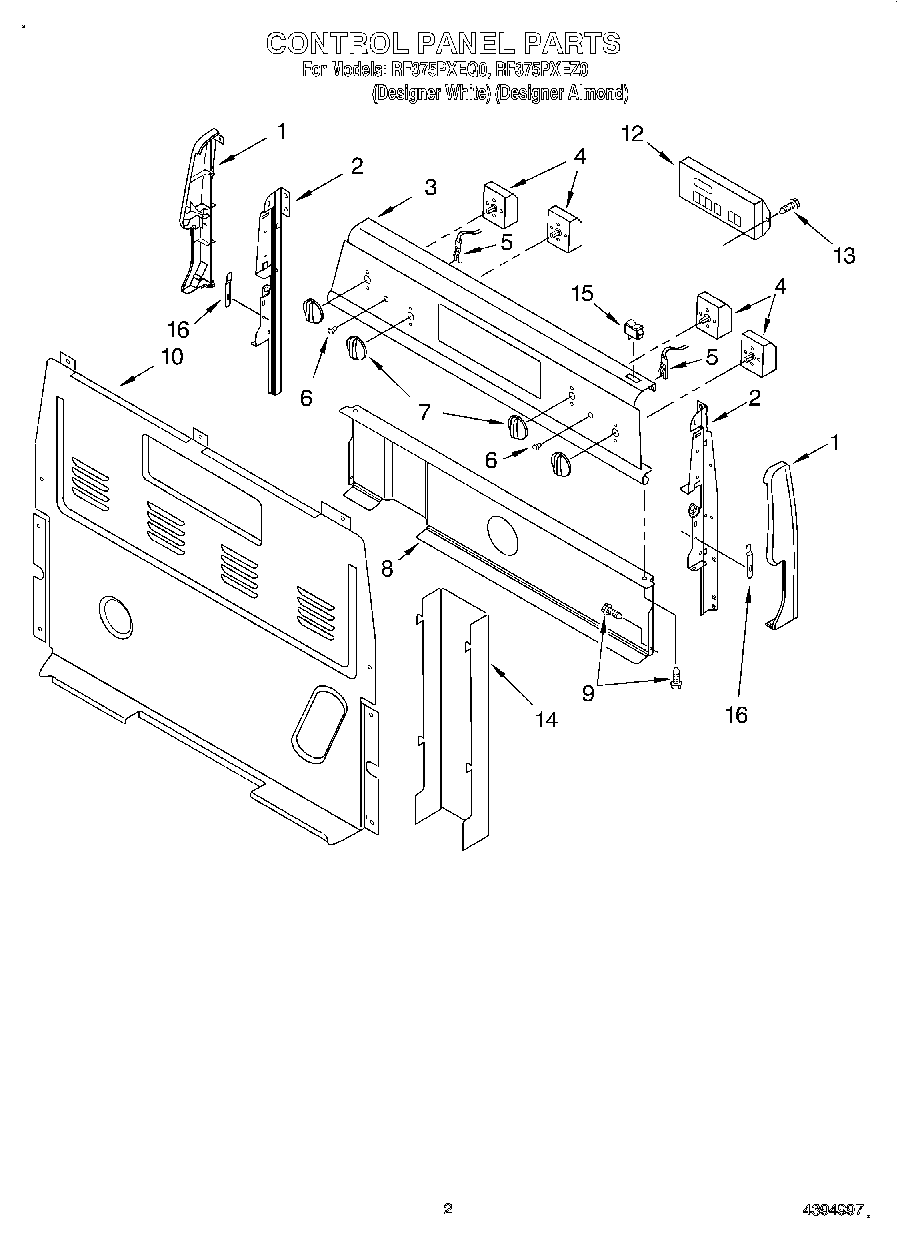

RF375PXEZ0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (White Left Hand)
1	Endcap (White Right Hand)
1	Endcap (Almond Left Hand)
1	Endcap (Almond Right Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (Almond)
3	Panel, Backguard (White)
4	WP3148952 Whirlpool Oven Infinite Switch
4	WP3149400 Whirlpool Oven Infinite Switch
4	Switch, Infinite (Screw (8))
5	Light, Indicator (Surface Unit (2))
6	WP3196068 Whirlpool Light Lens
7	Knob, Infinite (4) (Almond)
7	WP3196232 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
12	Control, Range (White)
12	Control, Range (Almond)
14	WPW10326122 Whirlpool Black Cover
14	SCREW
15	Switch, Rocker (Almond)
15	3149360 Whirlpool Light Switch
16	3196200 Whirlpool Clip
