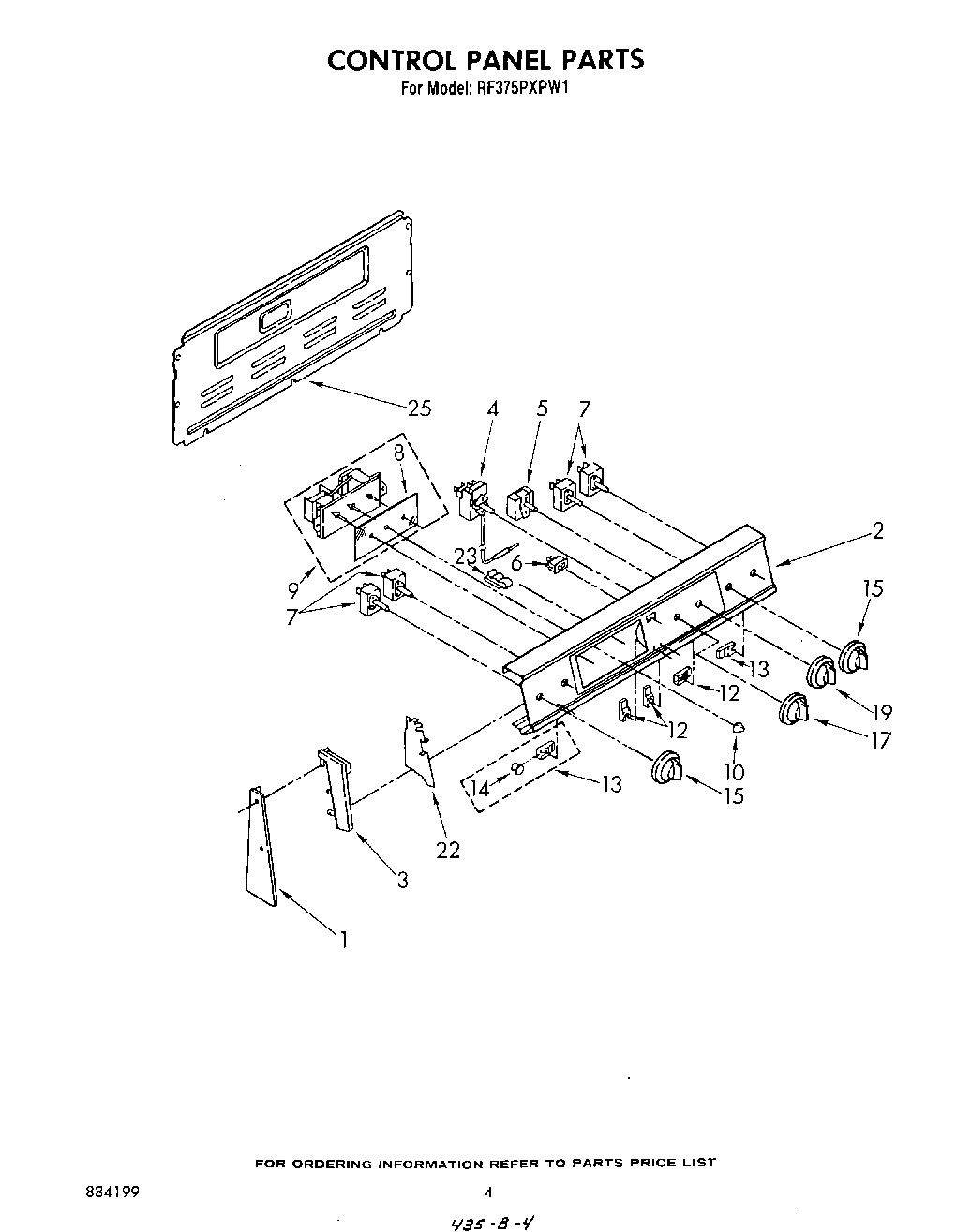

RF375PXPW1 03 – CONTROL PANELadmin2025-04-26T12:24:15+00:00RF375PXPW1 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Washer |
| 1 | WP3390631 Whirlpool Screw |
| 1 | End Trim L.H. |
| 2 | Panel, Control |
| 2 | Washer |
| 3 | End Cap R.H. |
| 3 | Screw, |
| 3 | End Cap L.H. |
| 4 | Thermostat, Oven Pyro |
| 4 | WP313808 Whirlpool Screw |
| 5 | Switch, Selector (5 Position) |
| 6 | WP4314961 Whirlpool Lite Switch |
| 7 | WP3149404 Whirlpool Oven Surface Element Switch |
| 7 | WP3149400 Whirlpool Oven Infinite Switch |
| 7 | WP486579 Whirlpool Air Conditioner Screw |
| 8 | Glass, Timer |
| 9 | Timer, Auto |
| 10 | Spring (3) |
| 10 | WP3169181 Whirlpool Knob |
| 12 | Light, Indicator (250V) |
| 13 | Light, Indicator (Surface Unit (2)) |
| 14 | Lens, Amber |
| 15 | Knob, Control (4) |
| 17 | Screw |
| 17 | Knob, Control (2) |
| 19 | KNOB, CONTROL |
| 19 | WP688805 Whirlpool Spring Clip |
| 22 | WP965173 Whirlpool Dishwasher Screw |
| 22 | Shield (2) |
| 23 | Clip, Tube |
| 25 | SCREW |
| 25 | Harness-Conduit Asm. |
