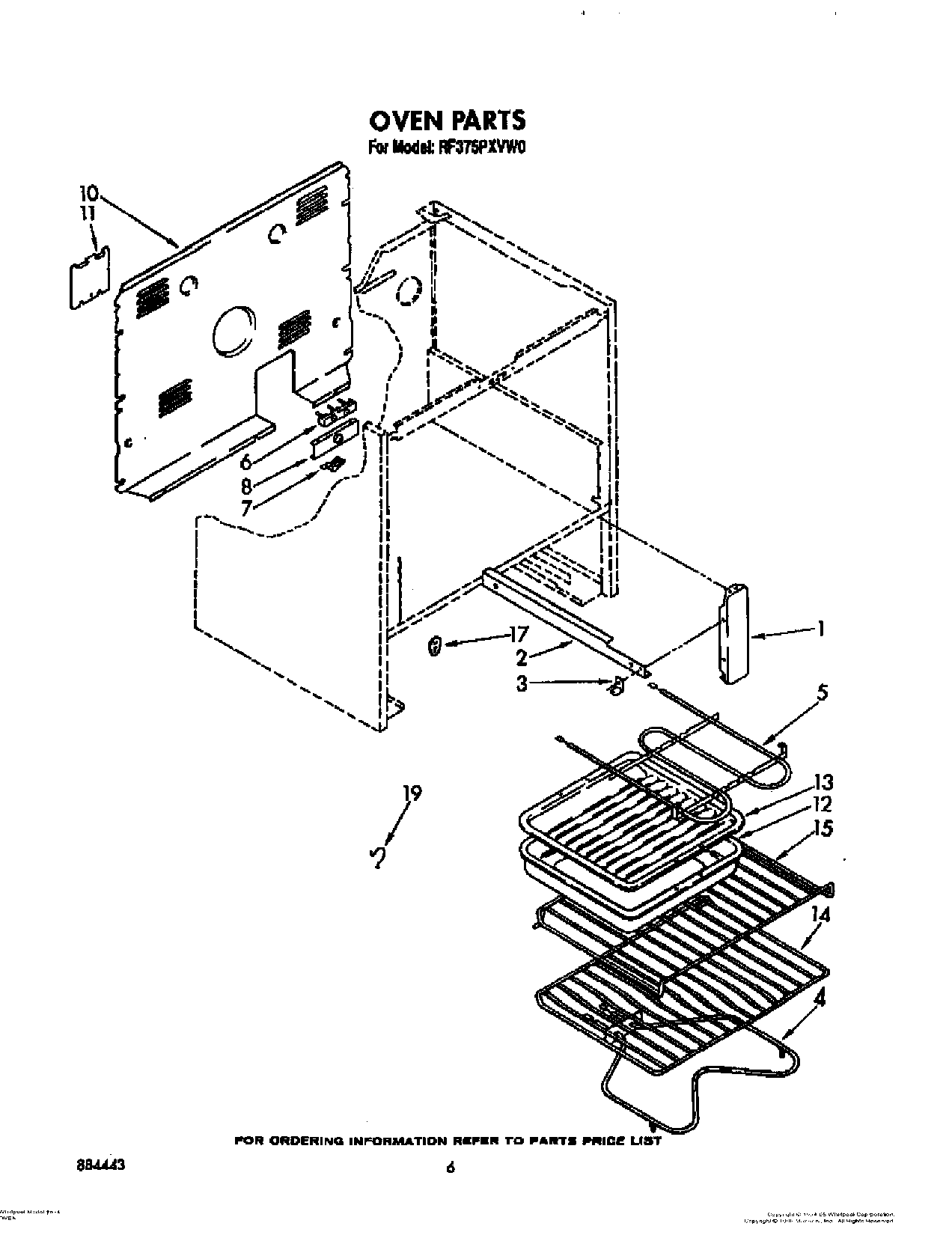

RF375PXVW0 05 – OVEN, LITERATURE AND OPTIONAL

RF375PXVW0 05 – OVEN, LITERATURE AND OPTIONAL

Written by

in

RF375PXVW0 05 – OVEN, LITERATURE AND OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
	WPL LIT3148614
	WPL LIT3148554
	WPL LIT3149683
	WPL LIT884443
	WPL LIT313358
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw, 10-32 x 5/8 (4)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Screw, 10A x 1/2 (2) (Black)
17	WPL 311982
19	Leveler (Thinner) (2oz.)
19	Wire (14 Ga. 150 c Yellow)
19	Wire (12 Ga. 150 c Black)
19	18 Ga. 80~c Rating (Red)
19	Wire (14 Ga. 200 c Brown)
19	WPL 282825
19	Primer (White)
19	Rotisserie Kit (RCK 81)
19	Grease
19	1
19	Enamel, New Avocado (1 Qt. Uncut)
19	8212471 Whirlpool Oven Paint
19	WPL 786020
19	Wire (14 Ga. 150 c Orange)
19	WPL 72112
19	Platinum (Uncut)
19	Enamal, Toast (1 Qt. Uncut)
19	Paint, Spray (13 Oz.) (Platinum)
19	Toast
19	Golden Harvest (Uncut)
19	Golden Harvest
19	72113 Whirlpool Touch-Up Paint
19	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
19	Almond (Uncut)
19	WP72107 Whirlpool Touchup
19	799344 Whirlpool Refrigerator Paint
19	72017 Whirlpool Appliance Touch-Up Paint White
19	350930 Whirlpool White Spray Paint
19	WPL 799832
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	242831 Whirlpool Oven Wire
19	16515 Whirlpool Clip
19	Paint, Spray 13 Oz. (Avocado)
19	Paint, Touch-Up 1/2 Oz. (Coffee)
19	72109 Whirlpool Dacor Avocado Touch-Up Paint
19	285006 Whirlpool Spray
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Black 14 Ga.)
19	FOIL, ALUMINUM OVEN (18“ X 25 )
19	WPW10208653 Whirlpool Insulation
19	350956 Whirlpool Spray Assembly
