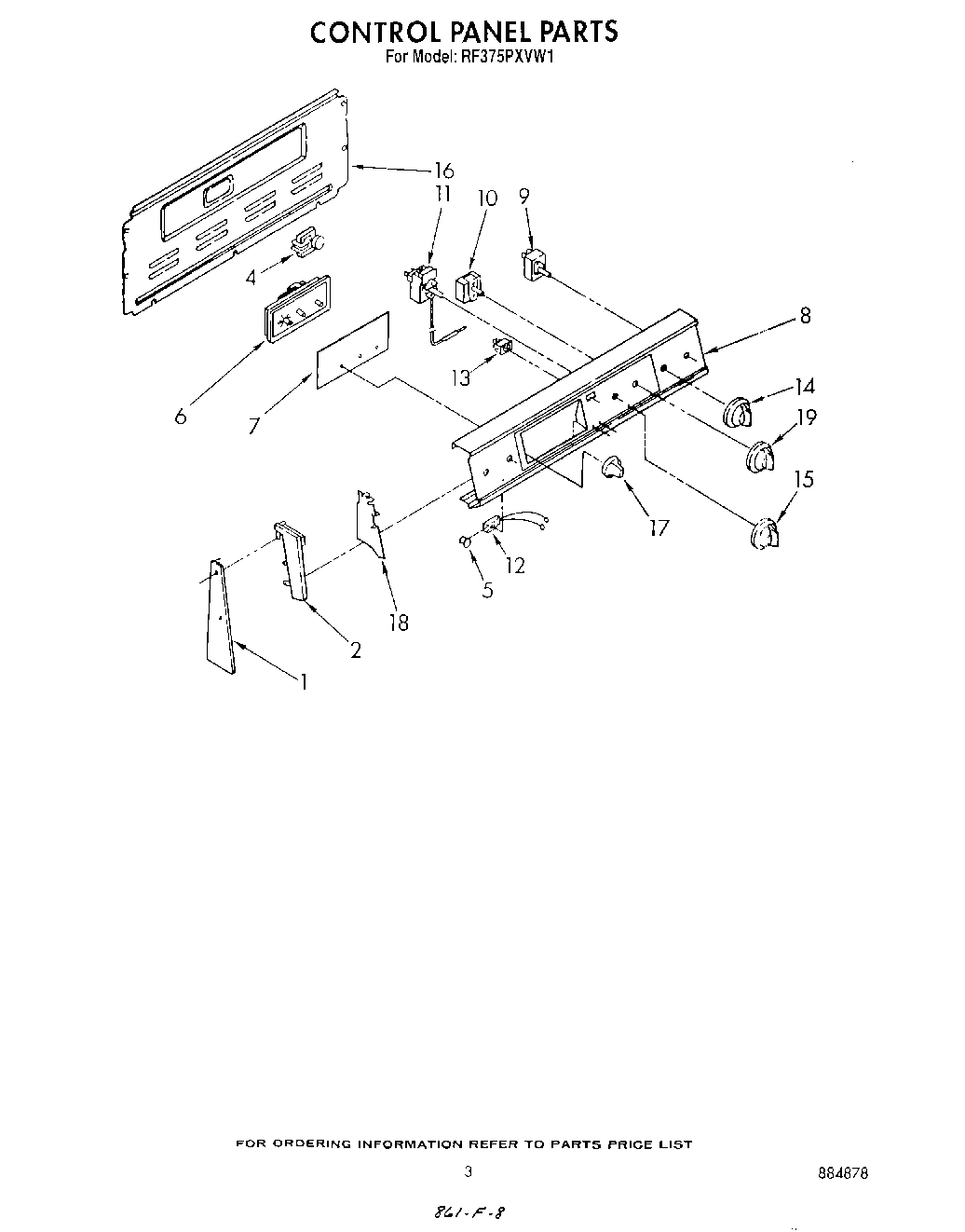

RF375PXVW1 03 – CONTROL PANELadmin2025-04-26T12:24:40+00:00RF375PXVW1 03 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | End Trim L.H. |
| 1 | Washer |
| 1 | Washer |
| 2 | Screw, |
| 2 | End Cap L.H. |
| 2 | End Cap R.H. |
| 4 | Motor, Timer |
| 5 | Lens, Amber |
| 6 | Timer, Clock (Includes No.6) |
| 7 | Glass, Timer |
| 8 | Control, Panel |
| 9 | WP3148952 Whirlpool Oven Infinite Switch |
| 9 | WP3149400 Whirlpool Oven Infinite Switch |
| 10 | 98005642 Whirlpool Clip |
| 10 | Switch, Selector (5 Position) |
| 10 | Adapter, Terminal |
| 10 | WP486579 Whirlpool Air Conditioner Screw |
| 11 | Thermostat, Oven |
| 11 | WP313808 Whirlpool Screw |
| 12 | Light, Indicator (250V) |
| 12 | Indicator Light (1) |
| 12 | Light, Indicator (Surface Unit (2)) |
| 13 | WP4314961 Whirlpool Lite Switch |
| 14 | Knob, Control (4) |
| 15 | Knob, Control (2) |
| 16 | Harness-Conduit Asm. |
| 16 | SCREW |
| 17 | Spring (3) |
| 17 | WP3169181 Whirlpool Knob |
| 18 | Shield (2) |
| 18 | WP965173 Whirlpool Dishwasher Screw |
| 19 | KNOB, CONTROL |
| 19 | WP688805 Whirlpool Spring Clip |
