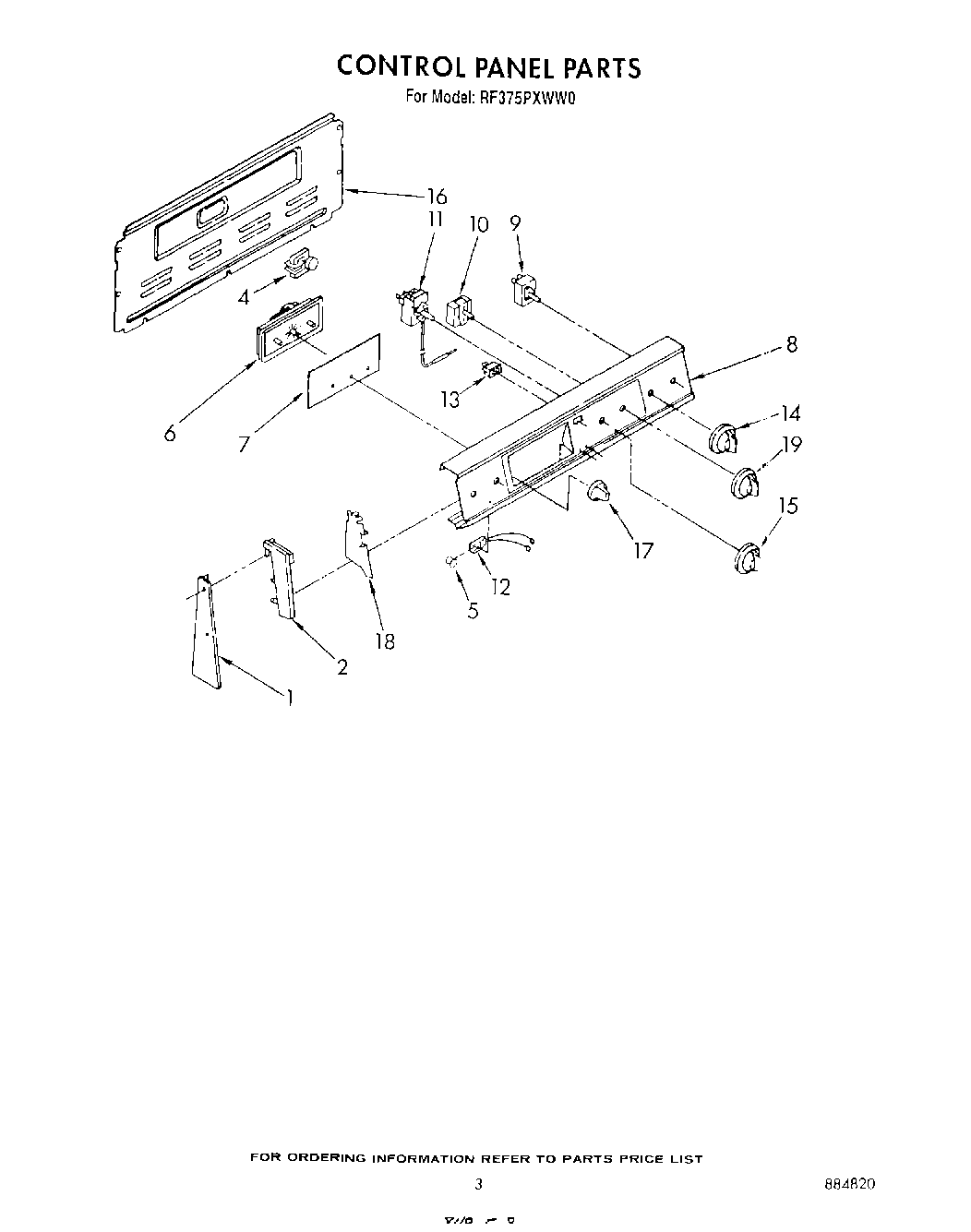

RF375PXWN0 03 – CONTROL PANEL

Products

Position	Product
1	Washer
1	End Trim L.H.
1	Washer
2	Screw,
2	End Cap L.H.
2	End Cap R.H.
4	Motor, Timer
5	Lens, Amber
6	Timer, Clock (Includes No.6)
7	Glass, Timer
8	Control, Panel
9	WP3149400 Whirlpool Oven Infinite Switch
9	WP3148952 Whirlpool Oven Infinite Switch
10	WP486579 Whirlpool Air Conditioner Screw
10	98005642 Whirlpool Clip
10	Switch, Selector (5 Position)
10	Adapter, Terminal
11	Thermostat, Oven
11	WP313808 Whirlpool Screw
12	Light, Indicator (250V)
12	Light, Indicator (Surface Unit (2))
12	Indicator Light (1)
13	WP4314961 Whirlpool Lite Switch
14	WP3149983 Whirlpool Knob
15	Knob, Oven Temp.
16	Harness-Conduit Asm.
16	SCREW
17	Spring (3)
17	WP3169181 Whirlpool Knob
18	Shield (2)
18	WP965173 Whirlpool Dishwasher Screw
19	Knob, Selector
19	WP688805 Whirlpool Spring Clip
