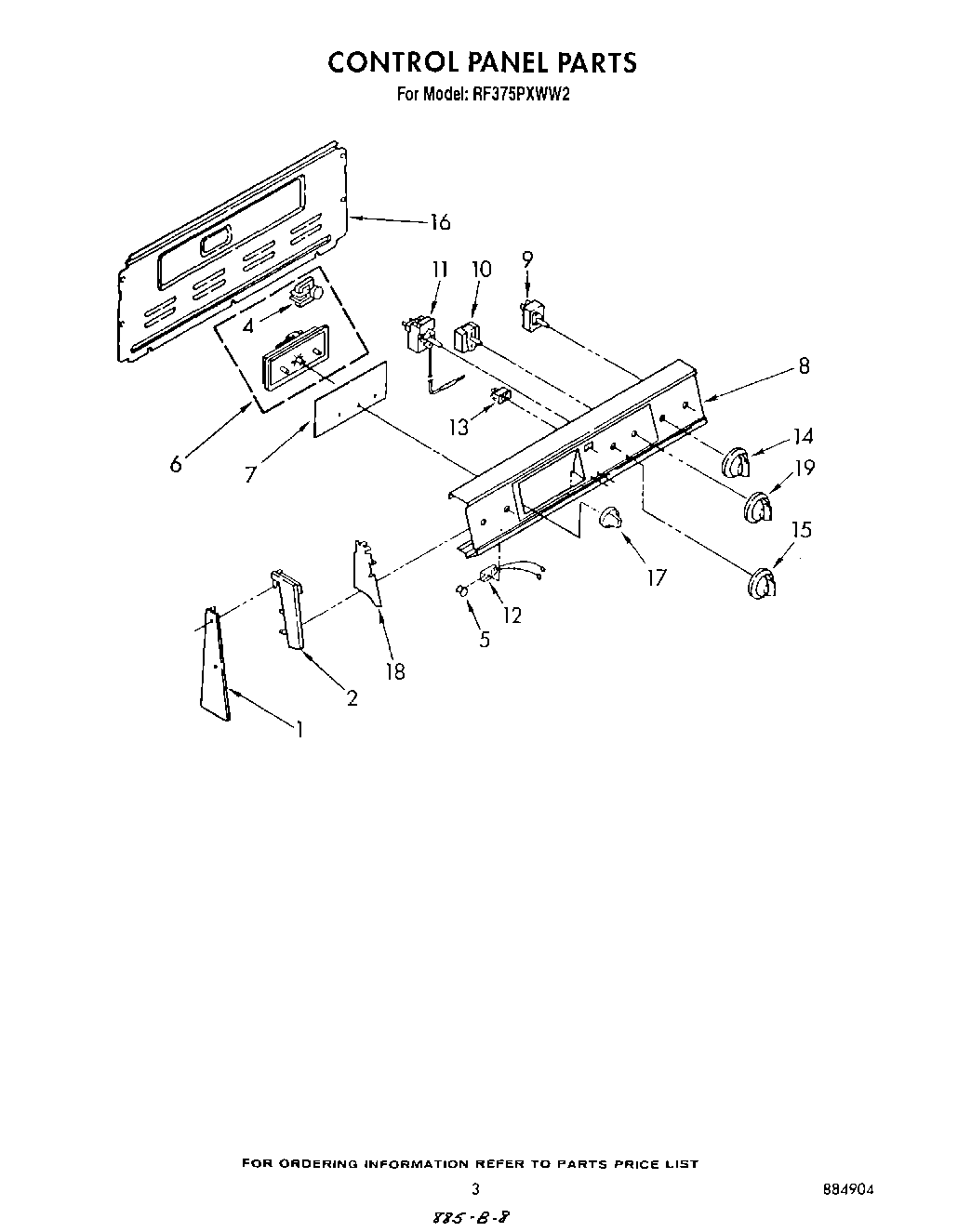

RF375PXWN2 03 – CONTROL PANEL

Products

PositionProduct
1Washer
1Washer
1End Trim L.H.
2Screw,
2End Cap R.H.
2End Cap L.H.
4Motor, Timer
5Lens, Amber
6Timer, Clock (Includes No.6)
7Glass, Timer
8Control, Panel
9WP3149400 Whirlpool Oven Infinite Switch
9WP3148952 Whirlpool Oven Infinite Switch
9WP486579 Whirlpool Air Conditioner Screw
10Switch, Selector
11WP313808 Whirlpool Screw
11Thermostat, Oven
12Light, Indicator (250V)
12Light, Indicator (Surface Unit (2))
12Indicator Light (1)
13WP4314961 Whirlpool Lite Switch
14WP3149983 Whirlpool Knob
15Knob, Oven Temp.
16SCREW
16Harness-Conduit Asm.
17WP3169181 Whirlpool Knob
17Spring (3)
18WP965173 Whirlpool Dishwasher Screw
18Shield (2)
19Knob, Selector
