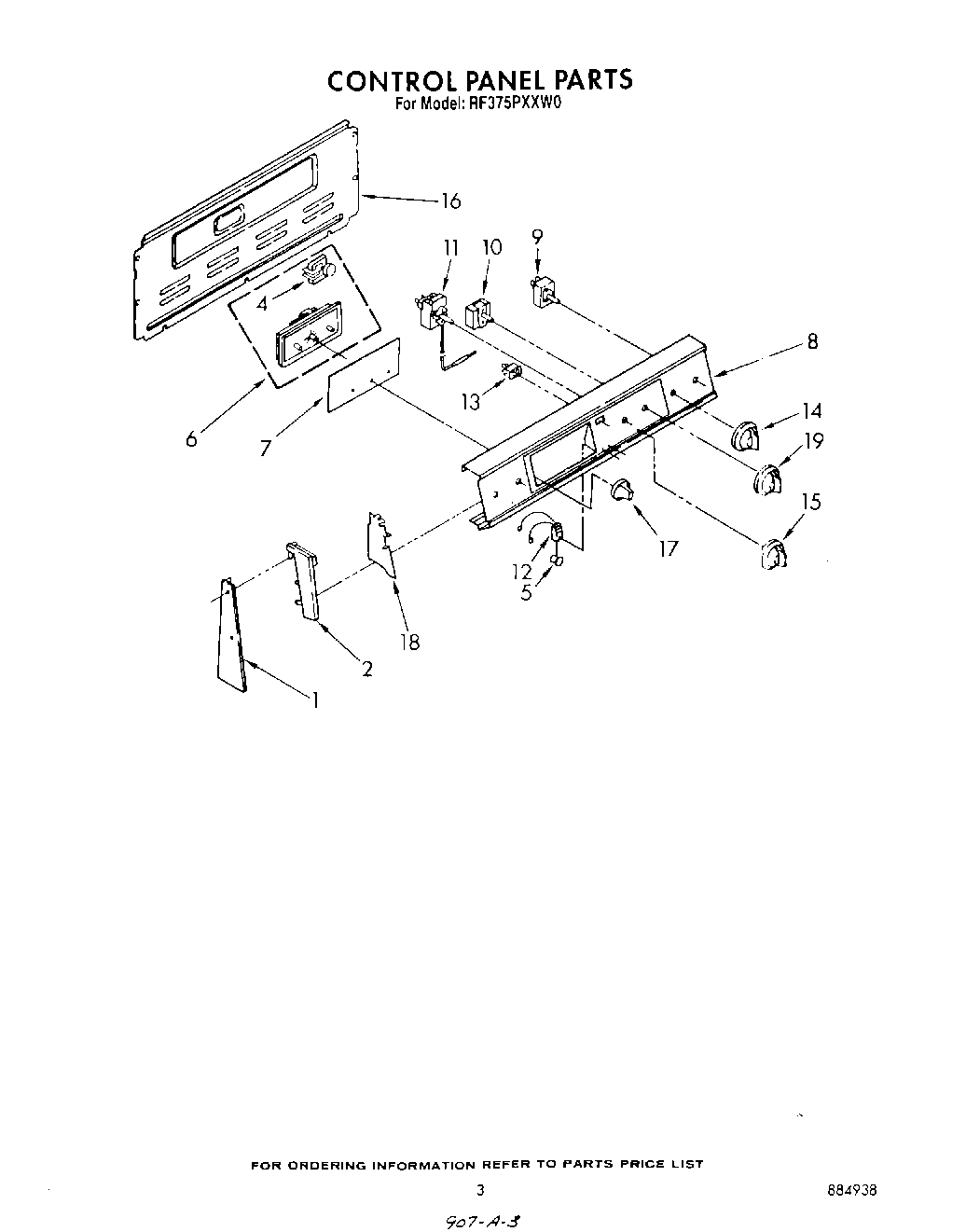

RF375PXXN0 03 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×1“
1Screw 10-32×7/16“
1Washer
2End Cap L.H.
2End Cap R.H.
2Screw,
4Motor, Timer
5Lens, Amber
6Timer, Clock (Includes No.6)
7Glass, Timer
8Panel, Control
9WP3149400 Whirlpool Oven Infinite Switch
9WP486579 Whirlpool Air Conditioner Screw
9WP3148952 Whirlpool Oven Infinite Switch
10Switch, Selector
1198005642 Whirlpool Clip
11WP313808 Whirlpool Screw
11Thermostat, Oven
12Light, Indicator (250V)
12Light, Indicator (Surface Unit On)
13WP4314961 Whirlpool Lite Switch
14WP3149983 Whirlpool Knob
15Knob, Thermostat
16Harness-Conduit Asm.
16SCREW
17WP3169181 Whirlpool Knob
17Spring (3)
18Shield (2)
18WP965173 Whirlpool Dishwasher Screw
19Knob, Selector
