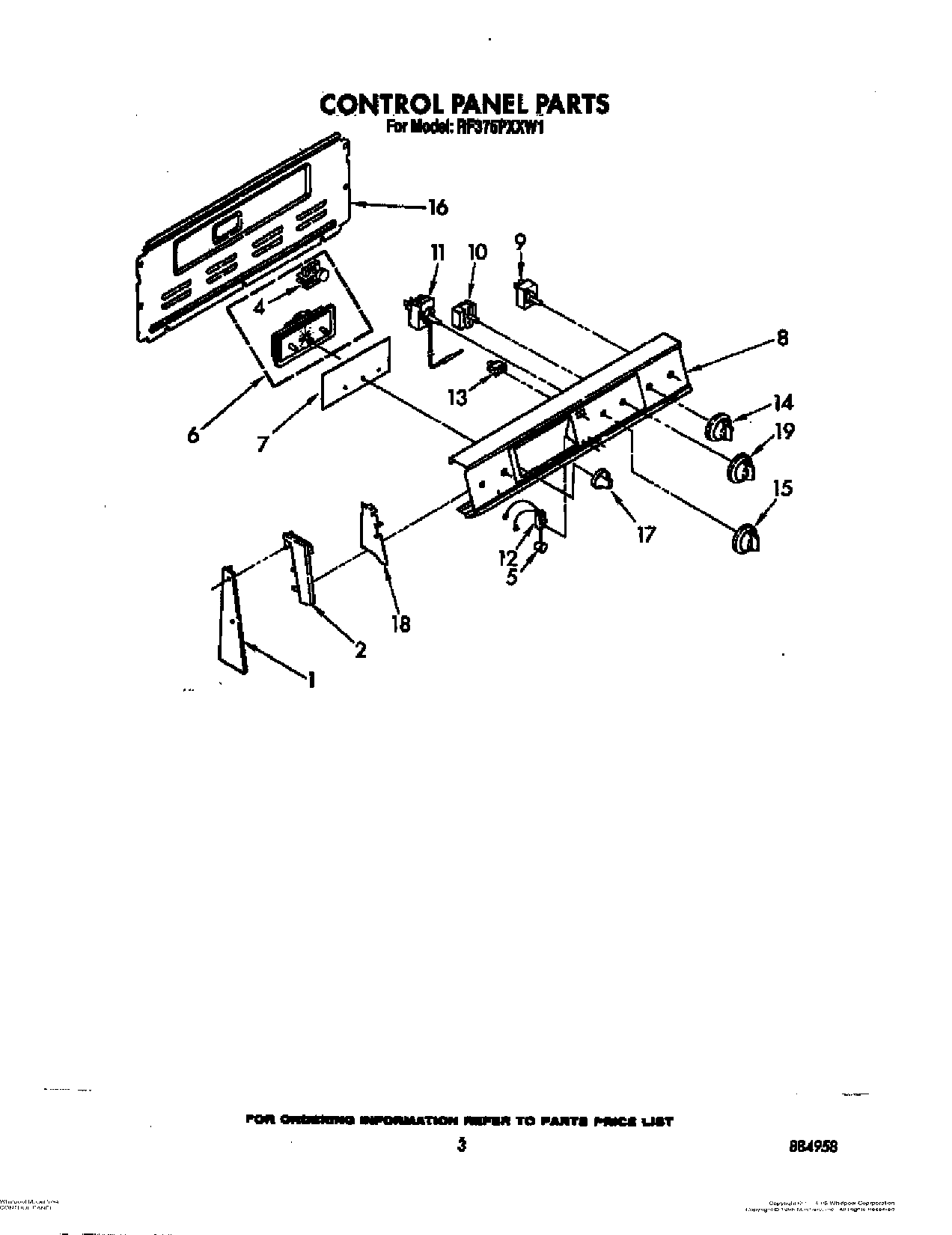

RF375PXXN1 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x1``
1	Screw 10-32x7/16``
1	Washer
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
4	Motor, Timer
5	Lens, Amber
6	Timer, Clock (Includes No.6)
7	Glass, Timer
8	Panel, Control
9	WP3149400 Whirlpool Oven Infinite Switch
9	WP486579 Whirlpool Air Conditioner Screw
9	WP3148952 Whirlpool Oven Infinite Switch
10	Switch, Selector
11	98005642 Whirlpool Clip
11	WP313808 Whirlpool Screw
11	Thermostat, Oven
12	Light, Indicator (250V)
12	Light, Indicator (Surface Unit On)
13	WP4314961 Whirlpool Lite Switch
14	WP3149983 Whirlpool Knob
15	Knob, Thermostat
16	Harness-Conduit Asm.
16	SCREW
17	WP3169181 Whirlpool Knob
17	Spring (3)
18	Shield (2)
18	WP965173 Whirlpool Dishwasher Screw
19	Knob, Selector
