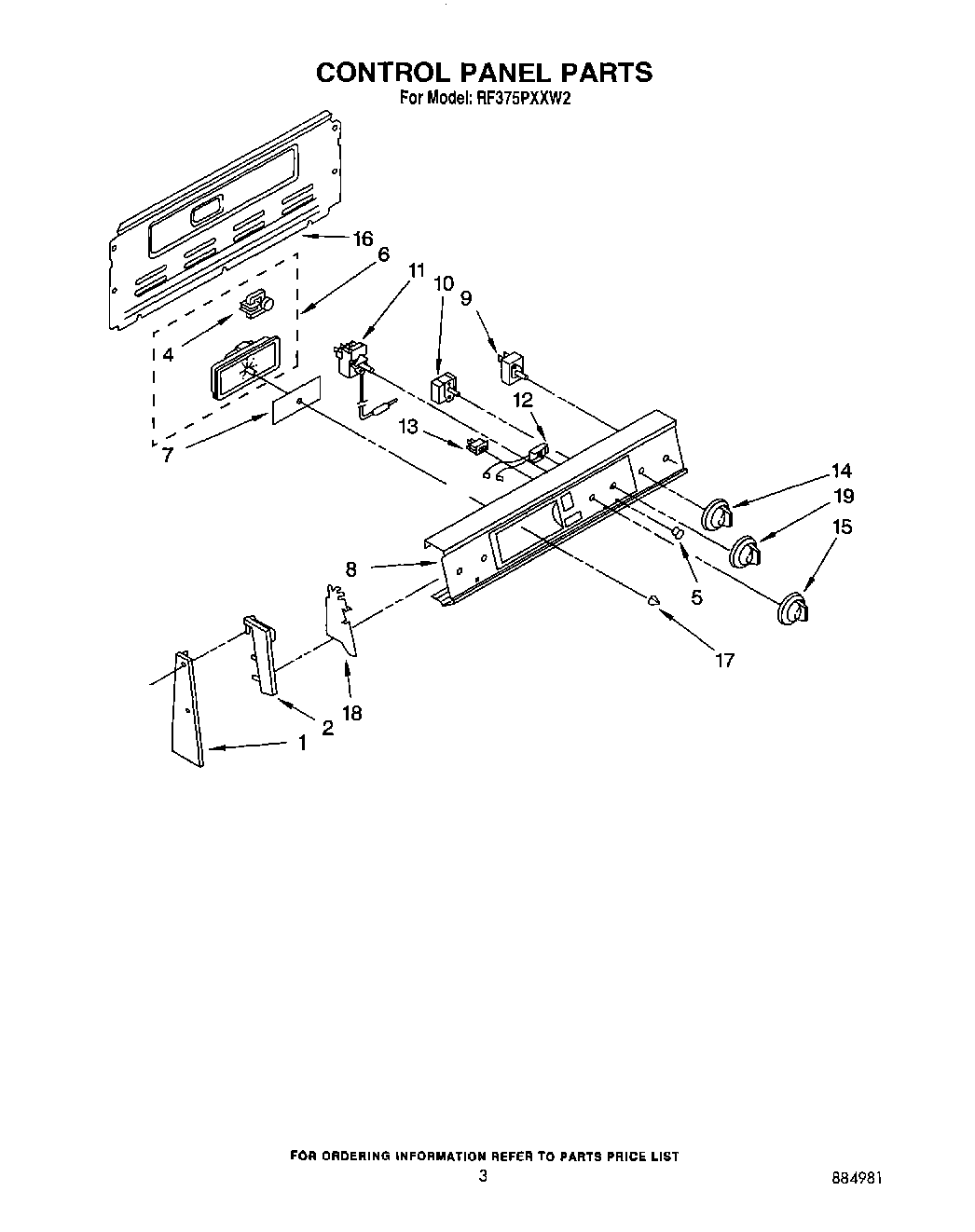

RF375PXXN2 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×1“
1	Screw 10-32×7/16“
1	Washer
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
4	Motor, Timer
5	Lens, Amber
6	Timer, Clock (Includes No.6)
7	Glass, Timer
8	Panel, Control
9	WP3149400 Whirlpool Oven Infinite Switch
9	WP486579 Whirlpool Air Conditioner Screw
9	WP3148952 Whirlpool Oven Infinite Switch
10	Switch, Selector
11	Thermostat, Oven
11	WP313808 Whirlpool Screw
11	98005642 Whirlpool Clip
12	Light, Indicator (250V)
12	Light, Indicator (Surface Unit On)
13	WP4314961 Whirlpool Lite Switch
14	WP3149983 Whirlpool Knob
15	Knob, Thermostat
16	SCREW
16	Harness-Conduit Asm.
17	WP3169181 Whirlpool Knob
18	WP965173 Whirlpool Dishwasher Screw
18	Shield (2)
19	Knob, Selector
