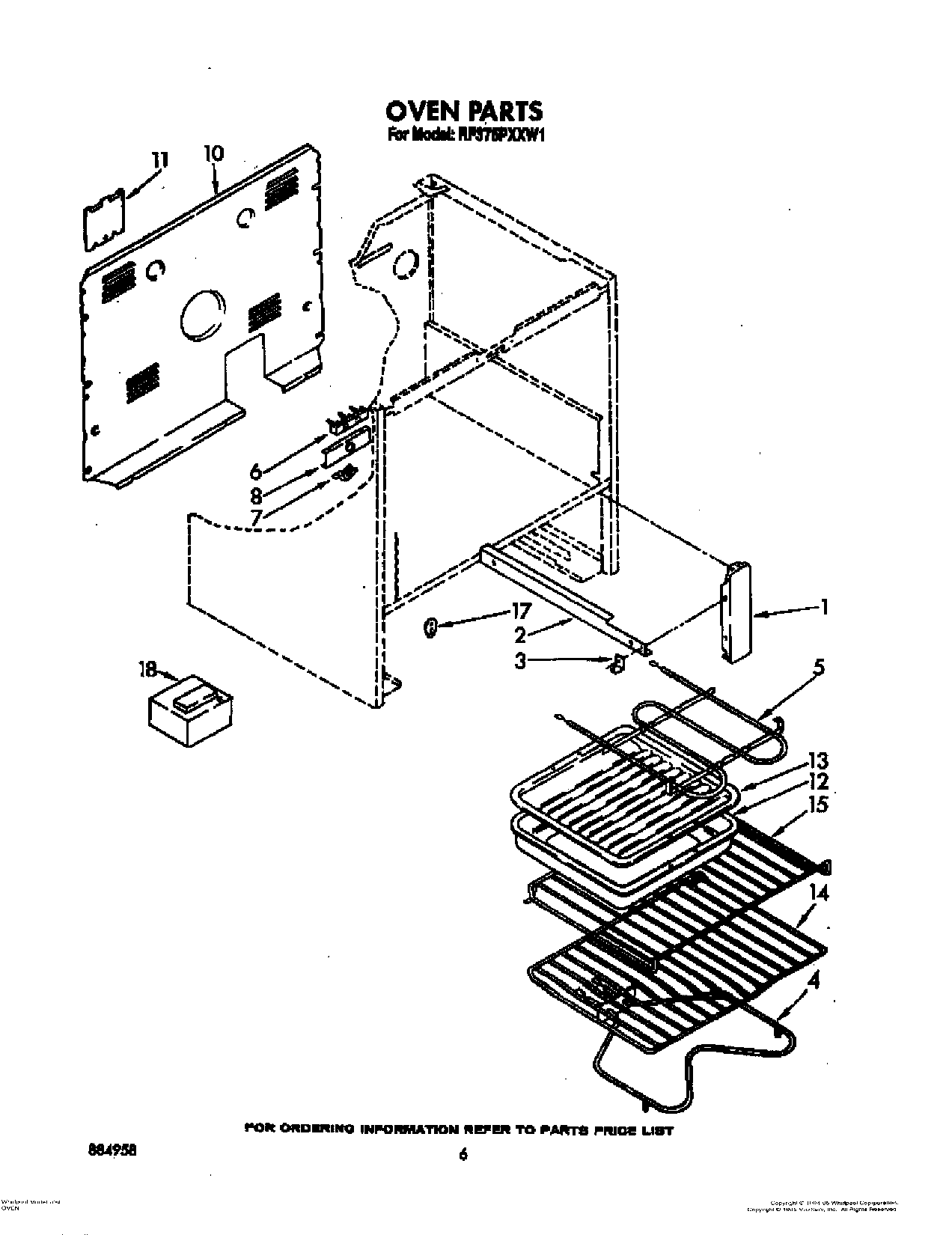

RF375PXXW1 05 – OVEN, LIT/OPTIONAL

RF375PXXW1 05 – OVEN, LIT/OPTIONAL

Written by

in

RF375PXXW1 05 – OVEN, LIT/OPTIONAL

Products

Position	Product
	Guide, Use & Care
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Paint, Spray 13 Oz. (Avocado)
	paint, spray 13 oz. (coffee)
	Paint, Touch-Up 1/2 Oz. (Coffee)
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	WPL LIT3169007
	WPL LIT3147395
	WPL LIT3149507
	WPL LIT884958
	Grease
	8212471 Whirlpool Oven Paint
	Leveler (Thinner) (2oz.)
	Enamel, Coffee (1 Qt. Uncut)
	1
	Wire (14 Ga. 200 c Brown)
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	350930 Whirlpool White Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	350942 Whirlpool Spray Paint
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	511873 Whirlpool Refrigerator Paint
	Wire, 25` Roll (Red 14 Ga.)
	WPL 72112
	Wire, 25` Roll (Black 14 Ga.)
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPL 799832
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Screw, 10A x 1/2 (2) (Black)
17	WPL 311982
18	Block, Balance
18	340184 Whirlpool Screw
