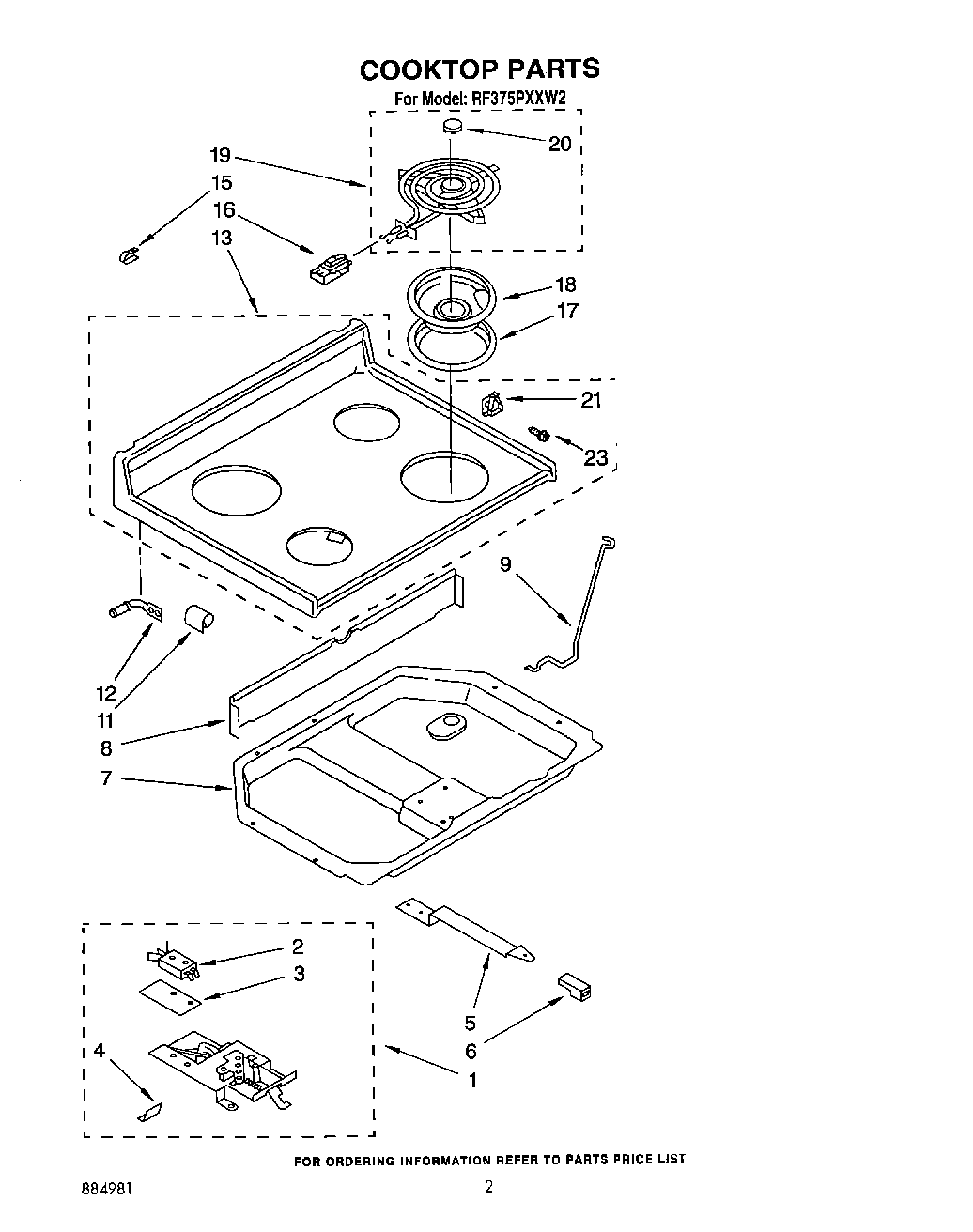

RF375PXXW2 02 – COOKTOP

Products

PositionProduct
1Latch & Switch Assembly
2Screw
2Safety Switch
3Insulator, Switch
4Screw
4Shield, Latch
5Handle, Latch
5Screw
6WP486579 Whirlpool Air Conditioner Screw
6Knob, Latch
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (Almond)
13Cooktop (White)
15WP308605 Whirlpool Refrigerator Clamp
15SCREW
16WP4332752 Whirlpool Clip
16WP313808 Whirlpool Screw
17W10858781 Whirlpool Trim Ring
17W10854470 Whirlpool Trim Ring
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18Reflector Pan (6“ (2))
19WP660532 Whirlpool Oven Surface Element
19WP660533 Whirlpool Oven 8" Surface Element
20Medallion (4)
23814103 Whirlpool Clip
