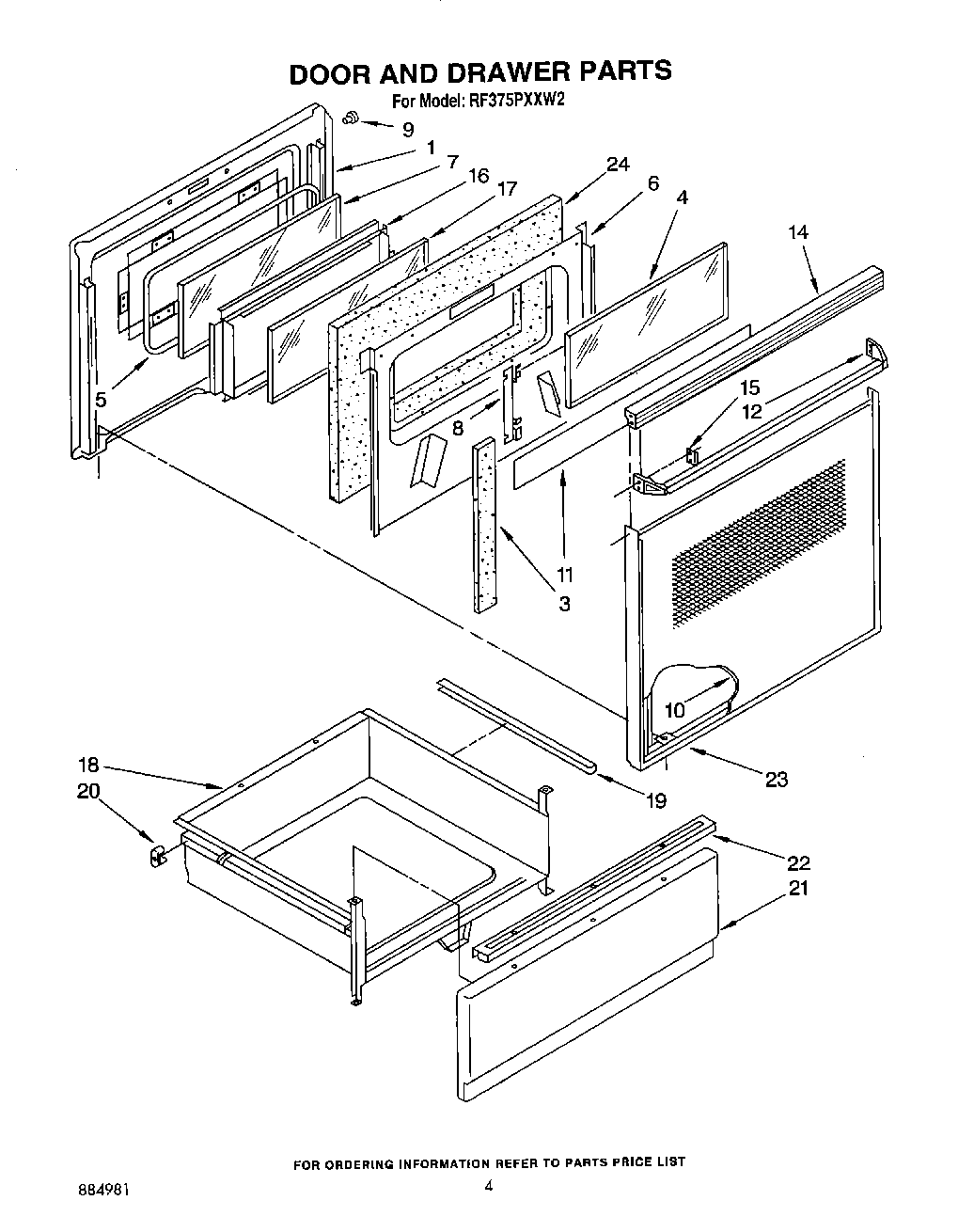

RF375PXXW2 04 – DOOR AND DRAWER

Products

Position	Product
1	Screw, 10A x 1/2 (2) (Black)
1	Screw
1	Liner, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Oven Door
12	WP355515 Whirlpool Screw
14	Screw, (2) 10-16 x 1/2
14	Top, Door (Black Model)
15	Clip, Mtg (2)
16	Screw
16	Frame, Inner
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	WP488787 Whirlpool Refrigerator Screw
21	Panel, Drawer (Almond)
21	Panel Drawer (White)
22	Handle, Drawer
22	WP488627 Whirlpool Refrigerator Screw
23	Frame, Door
24	Insulation, Door
