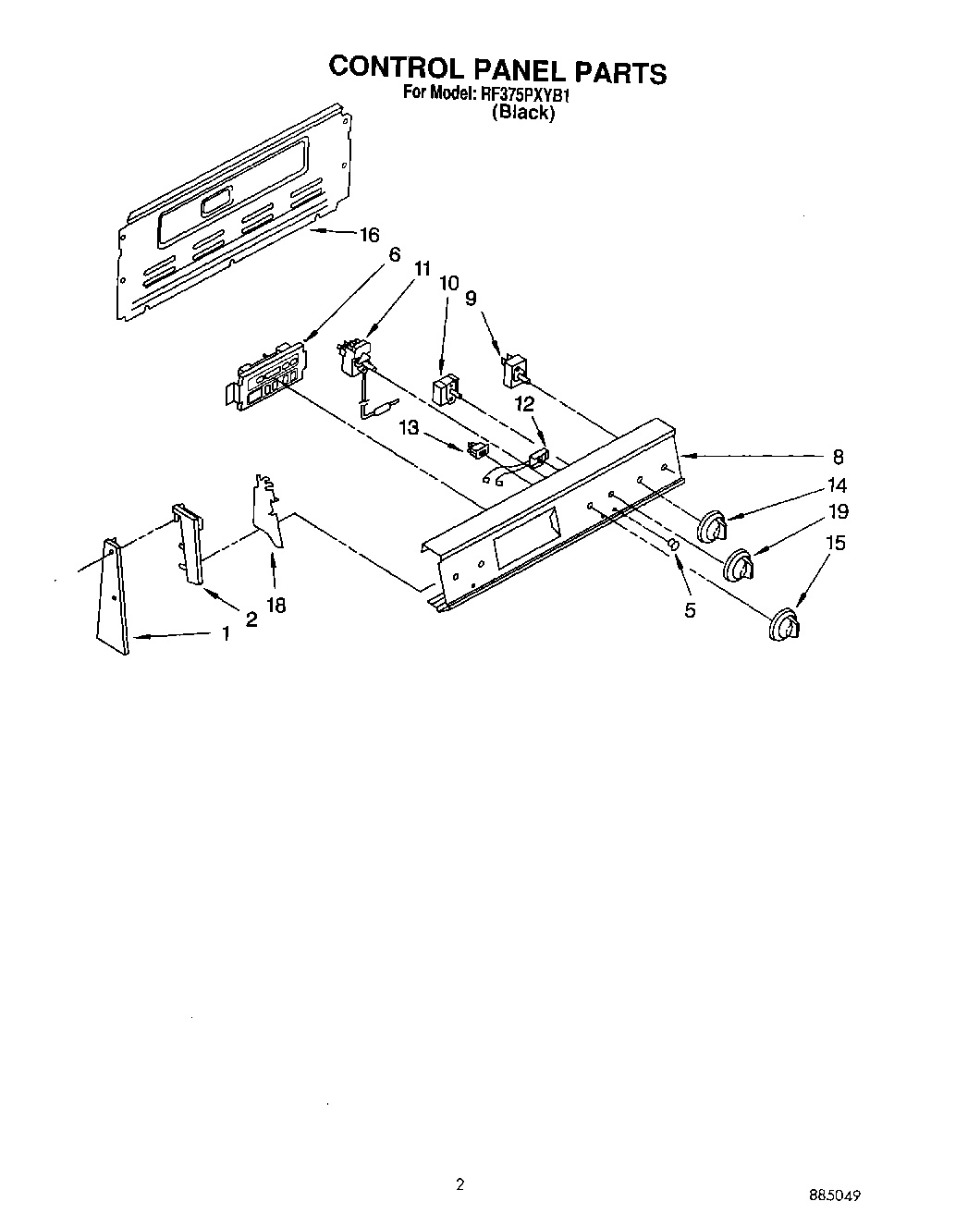

RF375PXYB1 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×7/16“
1	Washer
1	Screw 10-32×1“
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
5	Lens, Amber
6	Timer, Electronic
8	Panel, Control
9	Screw, 8-32 x 3/16 (2)
9	WP3149404 Whirlpool Oven Surface Element Switch
9	WP3149400 Whirlpool Oven Infinite Switch
10	Switch, Selector
11	98005642 Whirlpool Clip
11	WP313808 Whirlpool Screw
11	Thermostat, Oven
12	Light, Indicator
12	Light, Indicator (250V)
13	Switch, Rocker
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob (Temp) (White/Almond)
16	Harness-Conduit Asm.
16	SCREW
18	Shield (2)
18	WP965173 Whirlpool Dishwasher Screw
19	Knob (Selector)
