RF375PXYB2 03 – UNIT, LIT/OPTIONAL

Products

Position	Product
	Wiring Diagram
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	Paint, Spray 13 Oz. (Avocado)
	paint, spray 13 oz. (coffee)
	Paint, Touch-Up 1/2 Oz. (Coffee)
	72109 Whirlpool Dacor Avocado Touch-Up Paint
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Instructions, Installation
	WPL LIT677973
	WPL LIT3150400
	WPL LIT3187479
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
	Grease
	8212471 Whirlpool Oven Paint
	Leveler (Thinner) (2oz.)
	1
	Wire (14 Ga. 200 c Brown)
	285006 Whirlpool Spray
	Wire, 25“ Roll (White 14 GA.)
	350930 Whirlpool White Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest (Uncut)
	Golden Harvest
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350942 Whirlpool Spray Paint
	72113 Whirlpool Touch-Up Paint
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	511873 Whirlpool Refrigerator Paint
	FOIL, ALUMINUM OVEN (18“ X 25 )
	WPL 799832
	Wire, 25` Roll (Black 14 Ga.)
	WPL 72112
	Wire, 25` Roll (Red 14 Ga.)

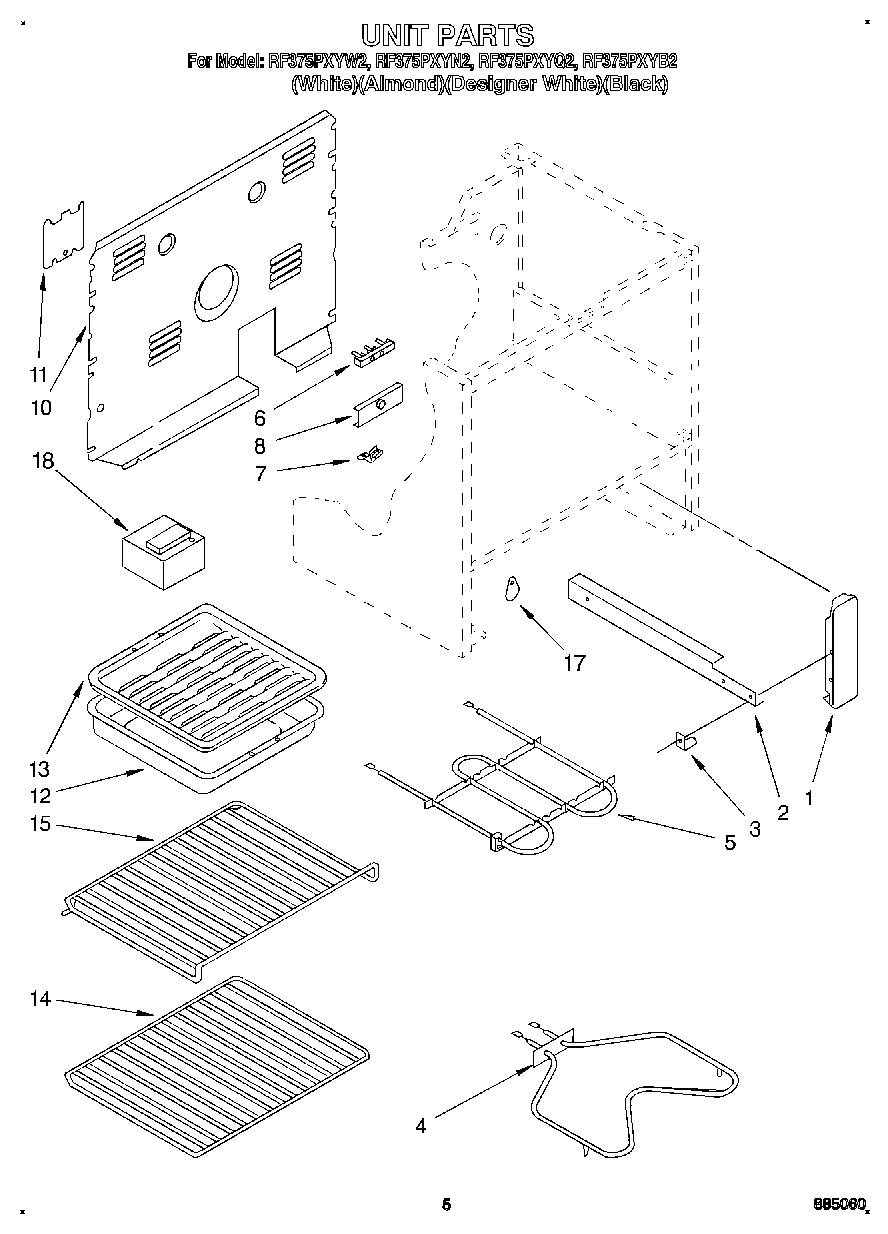

1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Glide, Front (2)
3	Screw, 10A x 1/2 (2) (Black)
4	ELMNT-BAKE
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
6	WP112432 Whirlpool Nut Assembly
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	Cover, Service
11	SCREW
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308173
15	WPL 308172
17	Screw (2)
17	WPL 311982
18	Block, Balance
18	340184 Whirlpool Screw
