RF375PXYN3 01 – COOKTOP

RF375PXYN3 01 – COOKTOP

Written by

in

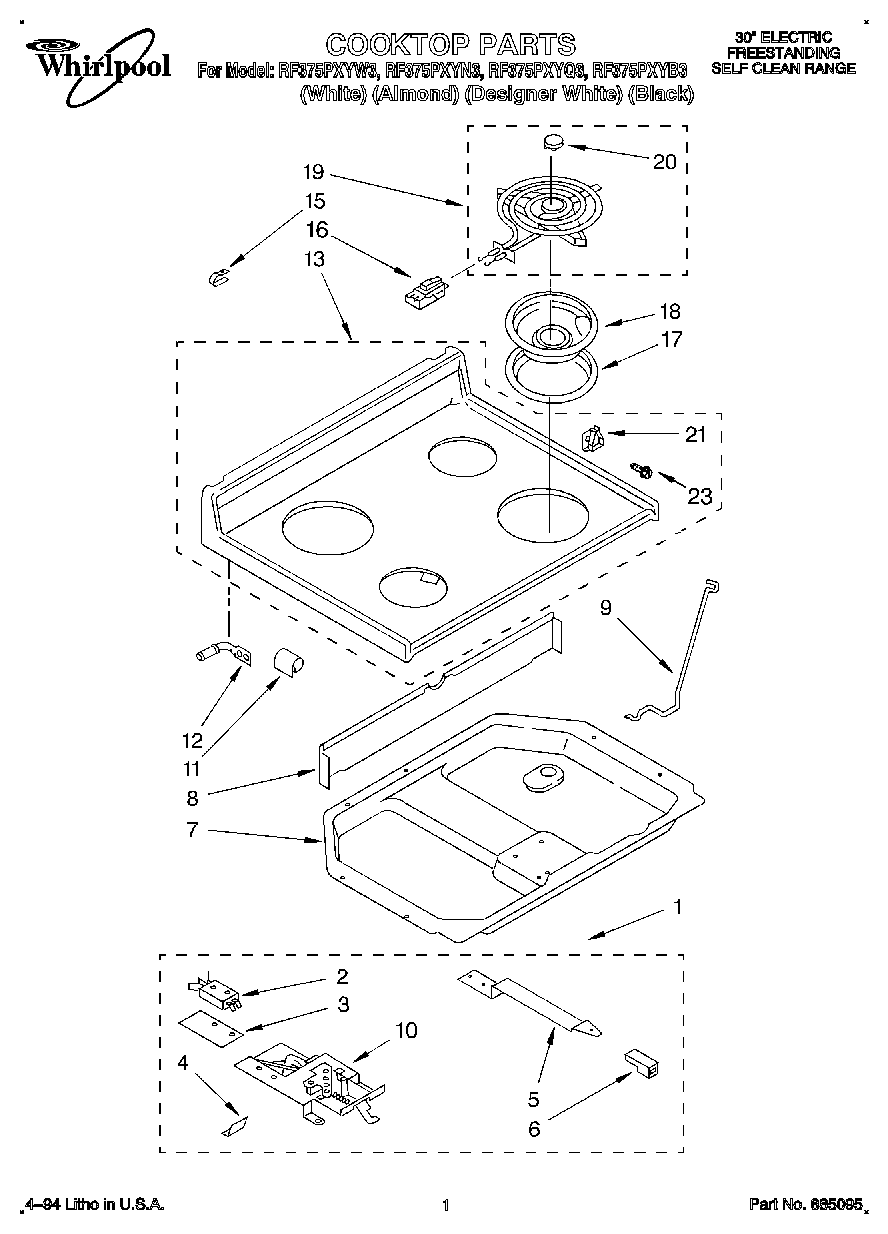

RF375PXYN3 01 – COOKTOP

Products

PositionProduct
1Designer White Mdl
1Latch Asm Complete W/Wiring Harness
2Safety Switch
2Screw
3Insulator, Switch
4Screw
4Shield, Latch
5Handle, Latch
5Handle, Latch
5Screw
6Knob, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
7Box, Burner
7WP3390631 Whirlpool Screw
8Shield, Wiring
9Rod, Cooktop
10Latch Mechanism
11Bracket, Cooktop (2)
12Pin, Cooktop (2)
13Cooktop (White)
13Cooktop (Black)
13Cooktop (Almond)
15SCREW
15WP308605 Whirlpool Refrigerator Clamp
16WP313808 Whirlpool Screw
16WP4332752 Whirlpool Clip
17W10854470 Whirlpool Trim Ring
17W10858781 Whirlpool Trim Ring
18WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
18WPW10290350 Whirlpool Stove Drip Bowl
18W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
18Reflector Pan (6“ (2))
19WP660533 Whirlpool Oven 8" Surface Element
19WP660532 Whirlpool Oven Surface Element
20Medallion (4)
23814103 Whirlpool Clip
