RF375PXYN3 03 – UNIT, LITERATURE

RF375PXYN3 03 – UNIT, LITERATURE

Written by

in

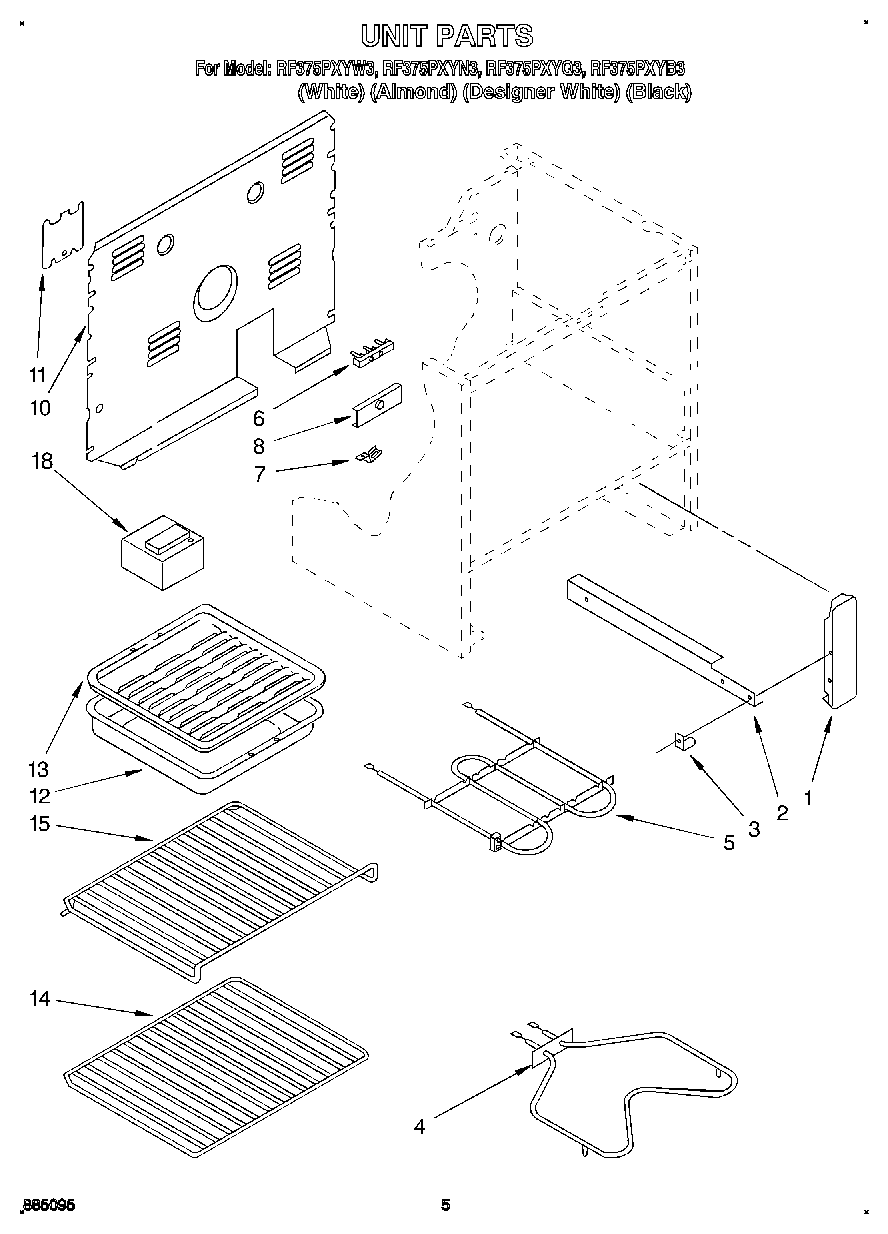

RF375PXYN3 03 – UNIT, LITERATURE

Products

PositionProduct
WPL LIT3187479
WPL LIT677973
Instructions, Installation
WPL LIT3150400
Wiring Diagram
1Bracket, Mounting (2)
2Rail L.H. (Includes Illus. 3)
2Rail R.H. (Includes Illus. 3)
3Glide, Front (2)
3Screw, 10A x 1/2 (2) (Black)
4ELMNT-BAKE
5Screw (2)
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7WPL 308498
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11Cover, Service
11SCREW
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
18Block, Balance
18340184 Whirlpool Screw
