RF375PXYN3 05 – OVEN
Written by
in

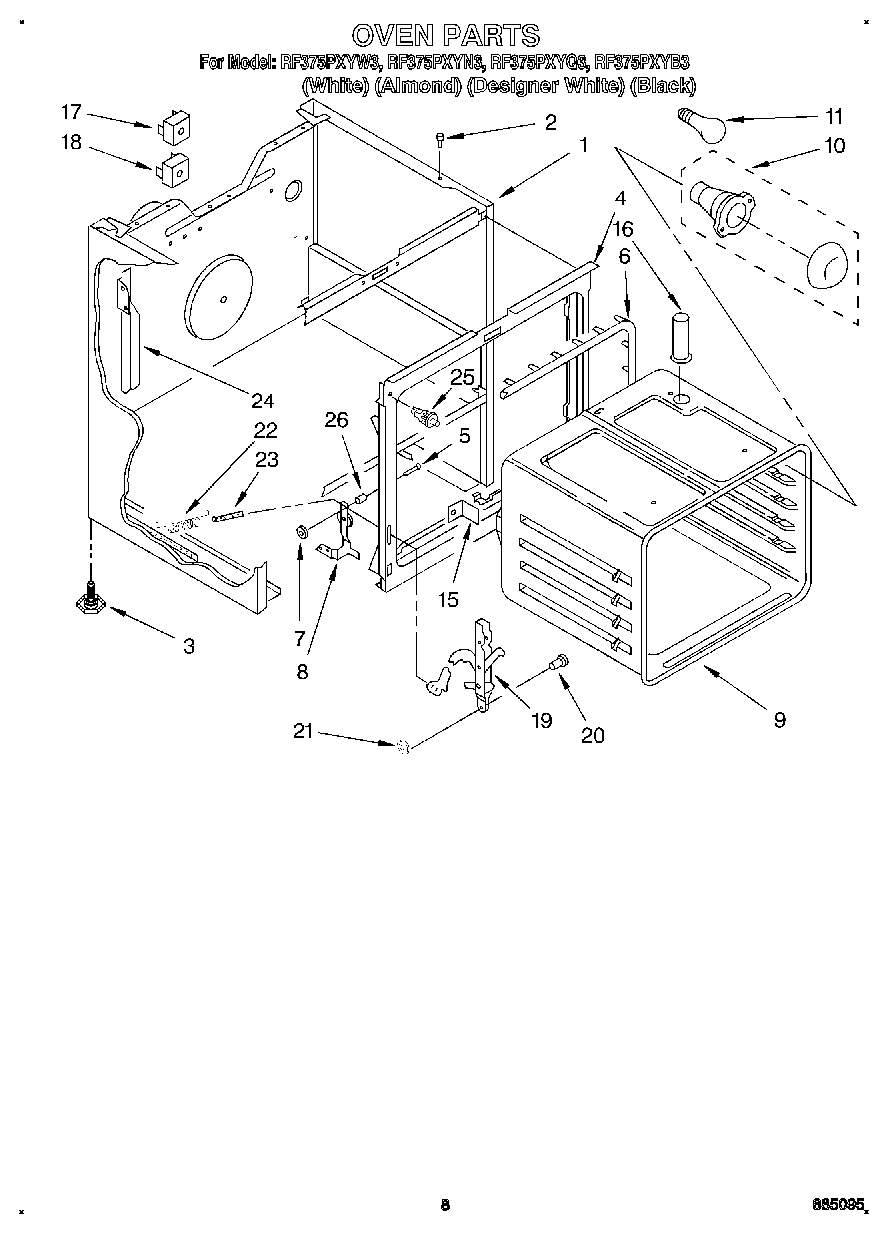

RF375PXYN3 05 – OVEN
Products
Position
Product
1
Main Chassis (Almond)
1
Main Chassis (White)
1
Main Chassis (Black)
2
238614 Whirlpool Bumper Hinge
3
WPW10058460 Whirlpool Appliance Levelling Leg
4
Screw (Top)
4
Front Frame
5
Pin, Hinge Ear (2)
6
Seal, Door
7
Pushnut (2)
8
Hinge, L.H.
8
Hinge, R.H.
9
Screw (3)
9
Oven (30“ Pyro)
10
W11594027 Whirlpool Range Oven Light Socket
11
RANGE ONLY 40W 120V APPL BULB
15
Bracket, Oven (Mounting)
16
9755804 Whirlpool Oven Vent Tube
16
Screw, 10A x 1/2 (2) (Black)
17
Sw
18
WPL 314215
18
Switch, Bake
19
Channel, Arm (2)
20
WP307986 Whirlpool Hinge Pin
21
Retainer Ring (2)
22
WP308126 Whirlpool Door Spring
23
WP308125 Whirlpool Microwave Range/Cooktop Anchor
24
SCREW
24
Wire Cover-Controls (Right)
24
Wire Cover
25
Switch, Door
26
WPL 3169094
26
WPL 3169093
26
Snubber, Door (2)
26
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
←
