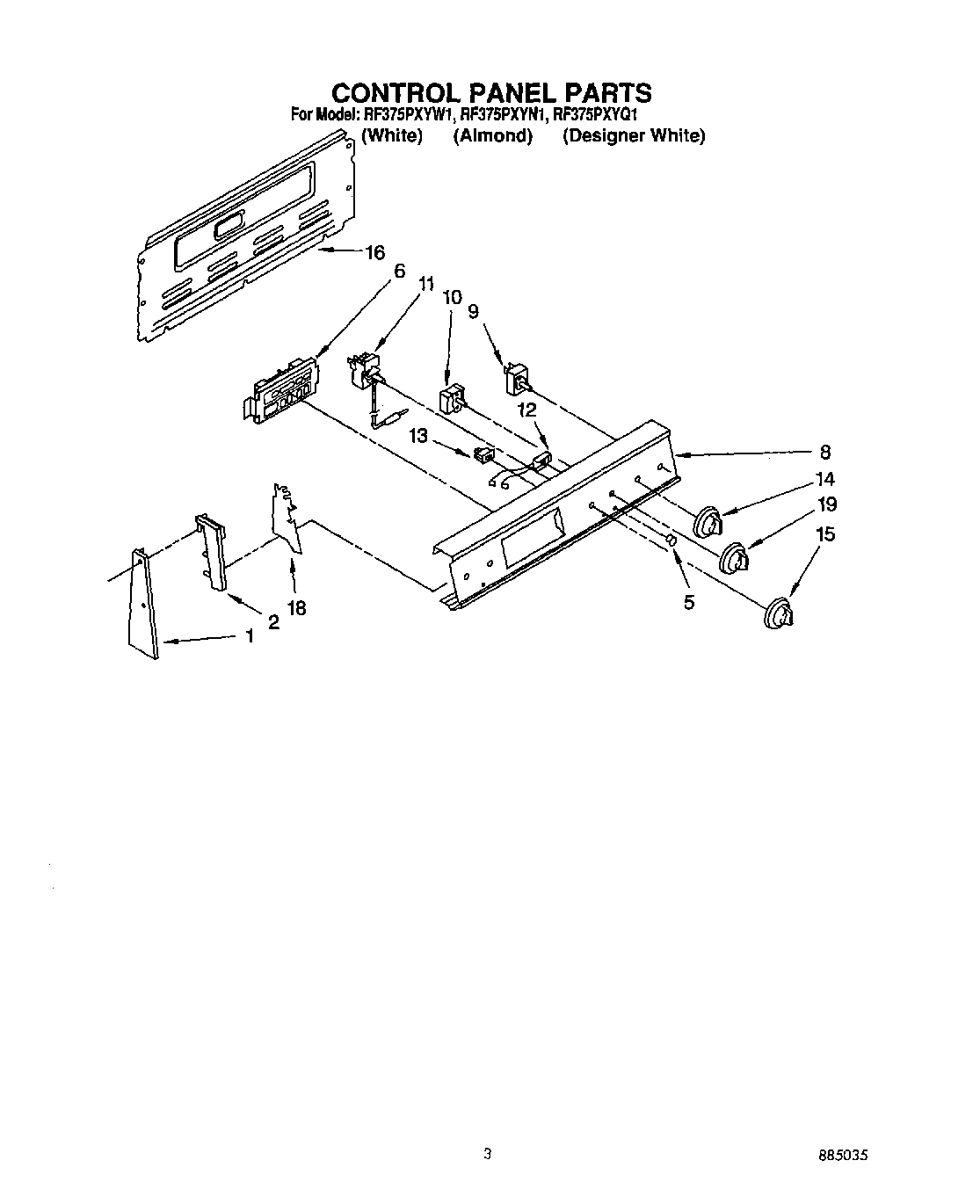

RF375PXYQ1 02 – CONTROL PANEL

Products

Position	Product
1	Washer
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap R.H.
2	Screw,
2	End Cap L.H.
5	Lens, Amber
6	Timer, Electronic
6	Designer White Mdl
8	Designer White Mdl
8	Panel, Control
9	WP486579 Whirlpool Air Conditioner Screw
9	WP3149404 Whirlpool Oven Surface Element Switch
9	WP3149400 Whirlpool Oven Infinite Switch
10	Switch, Selector
11	Thermostat, Oven
11	98005642 Whirlpool Clip
11	WP313808 Whirlpool Screw
12	Light, Indicator (250V)
12	Light, Indicator
13	Switch, Rocker (White)
13	Switch, Rocker
14	Knob, (4) Infinite Switch (Designer Mdl)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob (Temp) (White/Almond)
15	Designer White Mdl
16	Harness-Conduit Asm.
16	SCREW
18	Shield (2)
18	WP965173 Whirlpool Dishwasher Screw
19	Knob (Selector)
19	WPL 3183116
