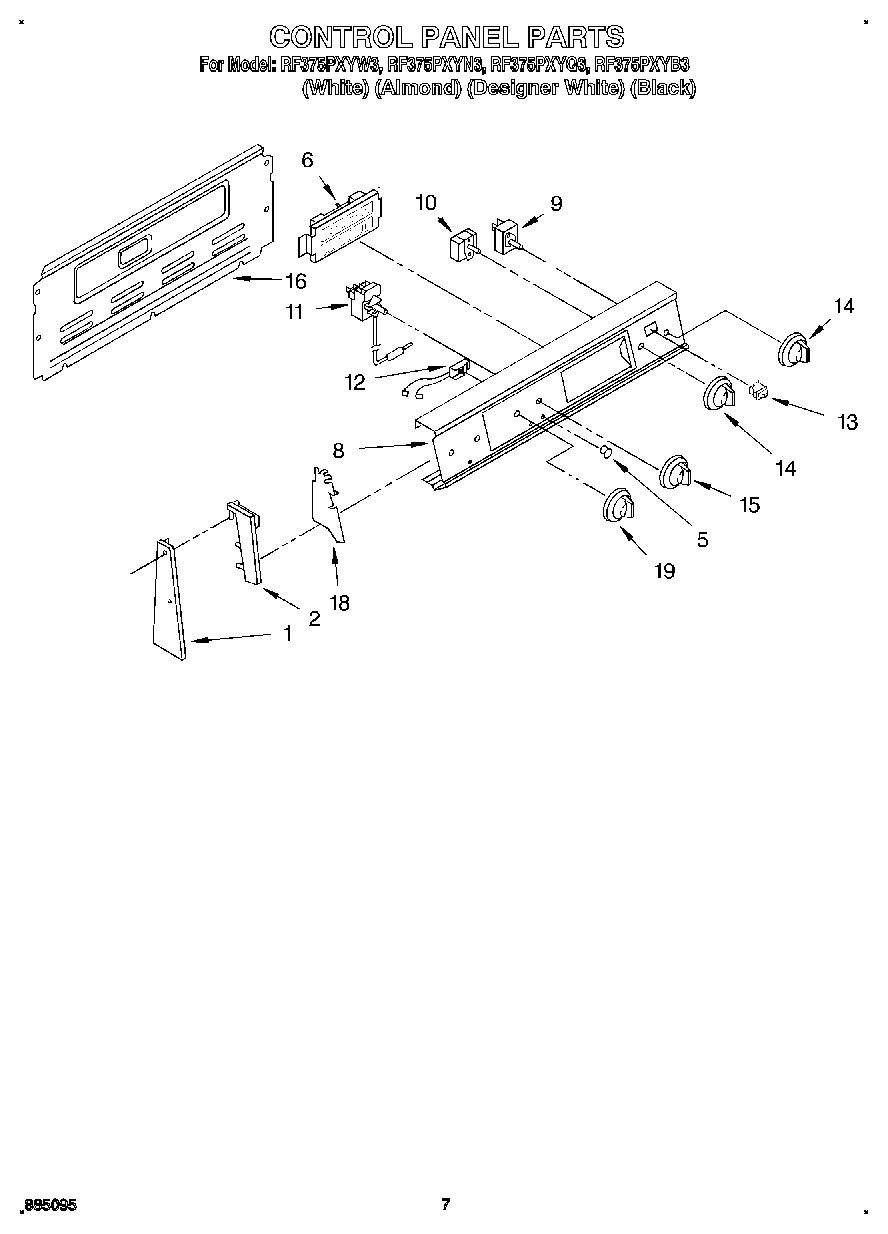

RF375PXYQ3 04 – CONTROL PANEL

RF375PXYQ3 04 – CONTROL PANEL

Written by

in

RF375PXYQ3 04 – CONTROL PANEL

Products

PositionProduct
1Washer
1Screw 10-32×7/16“
1Screw 10-32×1“
2End Cap R.H.
2End Cap L.H.
2Screw,
5Lens, Amber
6Timer, Electronic
6Designer White Mdl
8Designer White Mdl
8Panel, Control
9WP3149404 Whirlpool Oven Surface Element Switch
9WP3149400 Whirlpool Oven Infinite Switch
9Screw, 8-32 x 3/16 (2)
10Switch, Selector
1198005642 Whirlpool Clip
11WP313808 Whirlpool Screw
11Thermostat, 0ven Pyro
12Light, Indicator (250V)
12Light, Indicator
13Switch, Rocker (White)
13Switch, Rocker
14Knob, (4) Infinite Switch (Designer Mdl)
14Knob, (4) Infinite Switch (White/Almond/Gold)
15Knob, Temp
15Designer White Mdl
16Rear Cover Contr
16SCREW
18Shield (2)
18WP965173 Whirlpool Dishwasher Screw
19Knob (Selector)
19WPL 3183116
