RF375PXYW3 05 – OVEN

RF375PXYW3 05 – OVEN

Written by

in

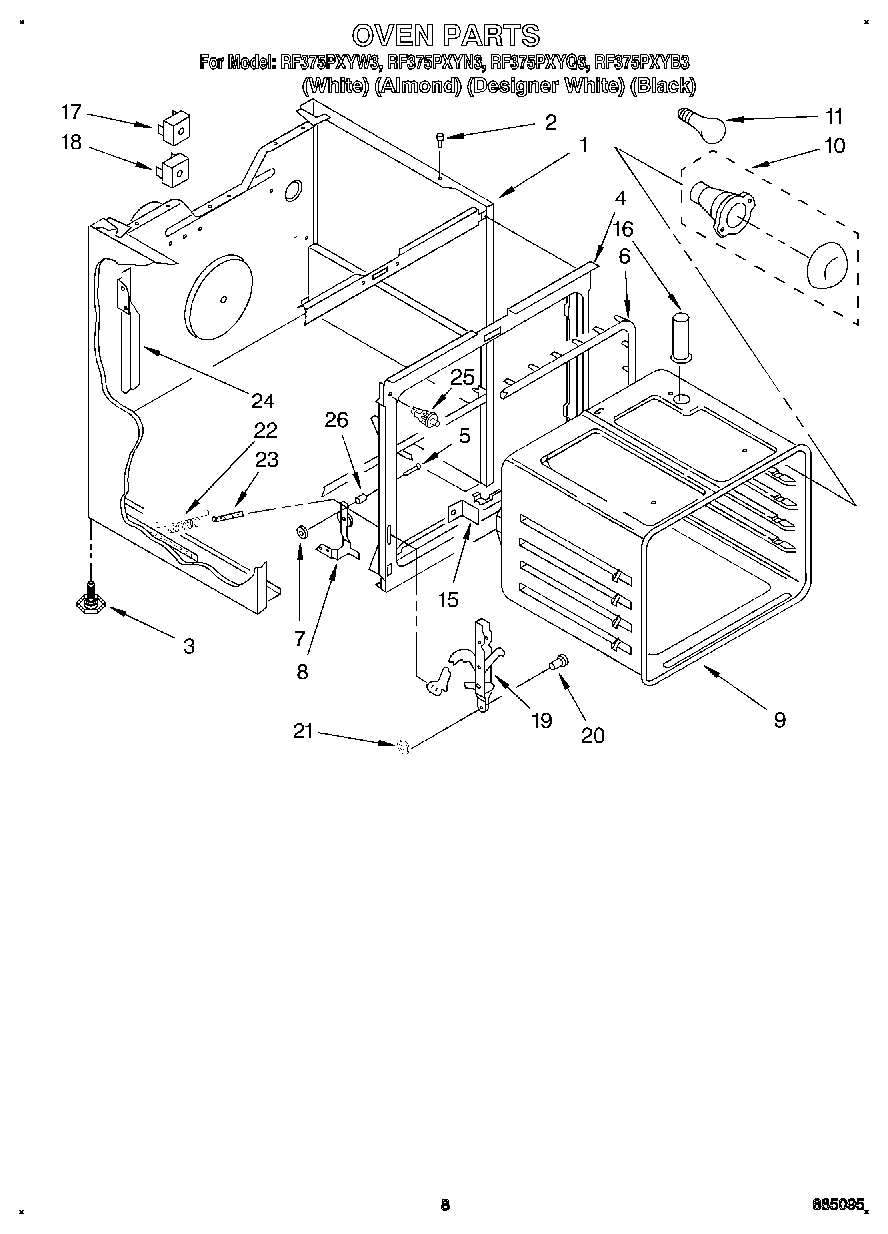

RF375PXYW3 05 – OVEN

Products

PositionProduct
1Main Chassis (Almond)
1Main Chassis (White)
1Main Chassis (Black)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Screw (Top)
4Front Frame
5Pin, Hinge Ear (2)
6Seal, Door
7Pushnut (2)
8Hinge, L.H.
8Hinge, R.H.
9Screw (3)
9Oven (30“ Pyro)
10W11594027 Whirlpool Range Oven Light Socket
11RANGE ONLY 40W 120V APPL BULB
15Bracket, Oven (Mounting)
169755804 Whirlpool Oven Vent Tube
16Screw, 10A x 1/2 (2) (Black)
17Sw
18WPL 314215
18Switch, Bake
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22WP308126 Whirlpool Door Spring
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24SCREW
24Wire Cover-Controls (Right)
24Wire Cover
25Switch, Door
26WPL 3169094
26WPL 3169093
26Snubber, Door (2)
268273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
