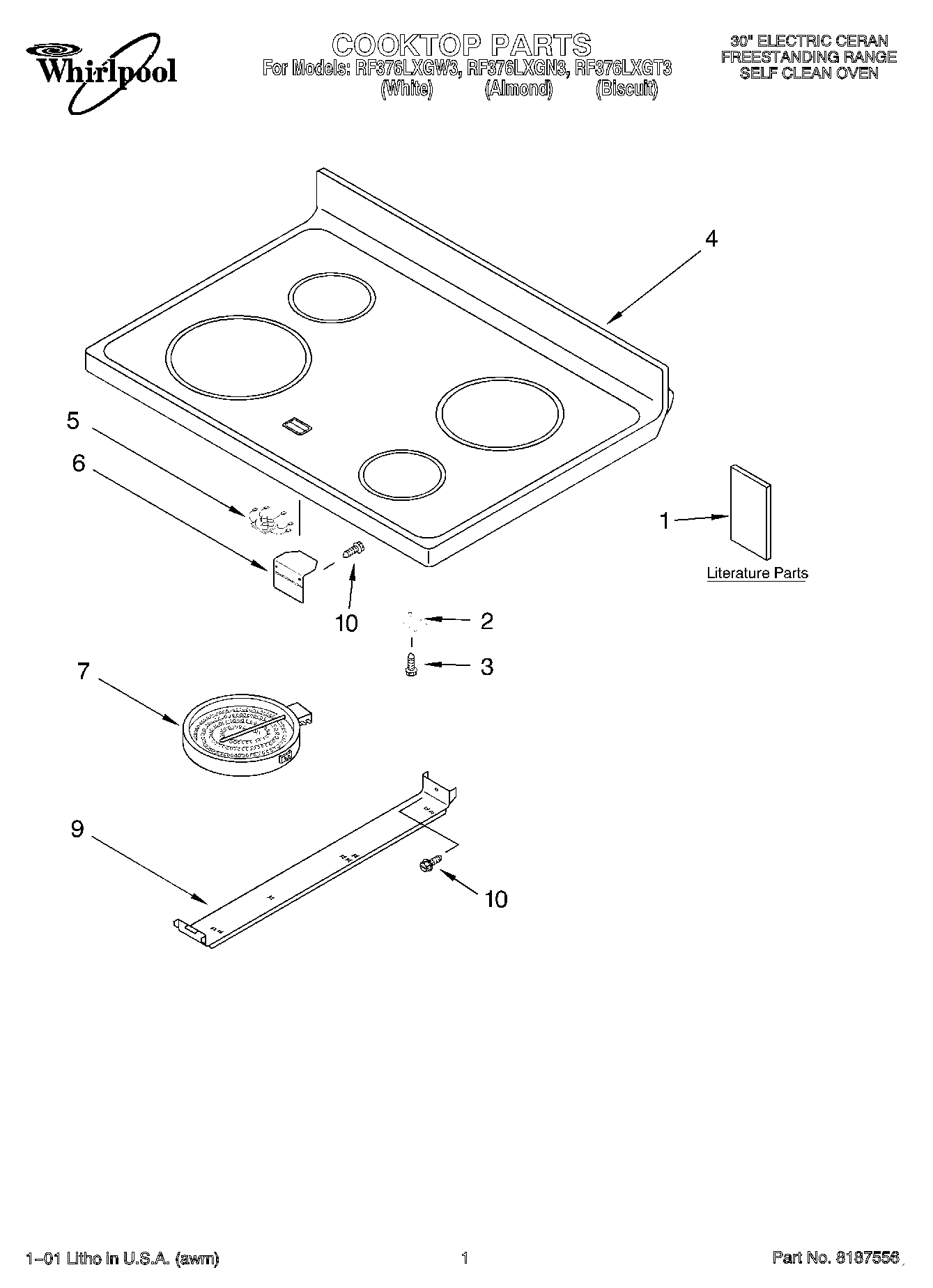

RF376LXGN3 01 – COOKTOP, LITERATURE

RF376LXGN3 01 – COOKTOP, LITERATURE

Written by

in

RF376LXGN3 01 – COOKTOP, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature (Instruction, Installation)
1Literature (Tech Sheet)
1Literature (Installation, Instructions (Template))
1Guide, Use & Care
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (Almond/Black Glass)
4Cooktop (White/Black Glass)
4Cooktop (Biscuit)
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823696 Whirlpool Radiant Surface Element
7W10823698 Whirlpool Surface Element Right Rear
7W10823711 Whirlpool Surface Element Left Front and Right Rear
9Bracket, Element
10WP3196557 Whirlpool Screw
