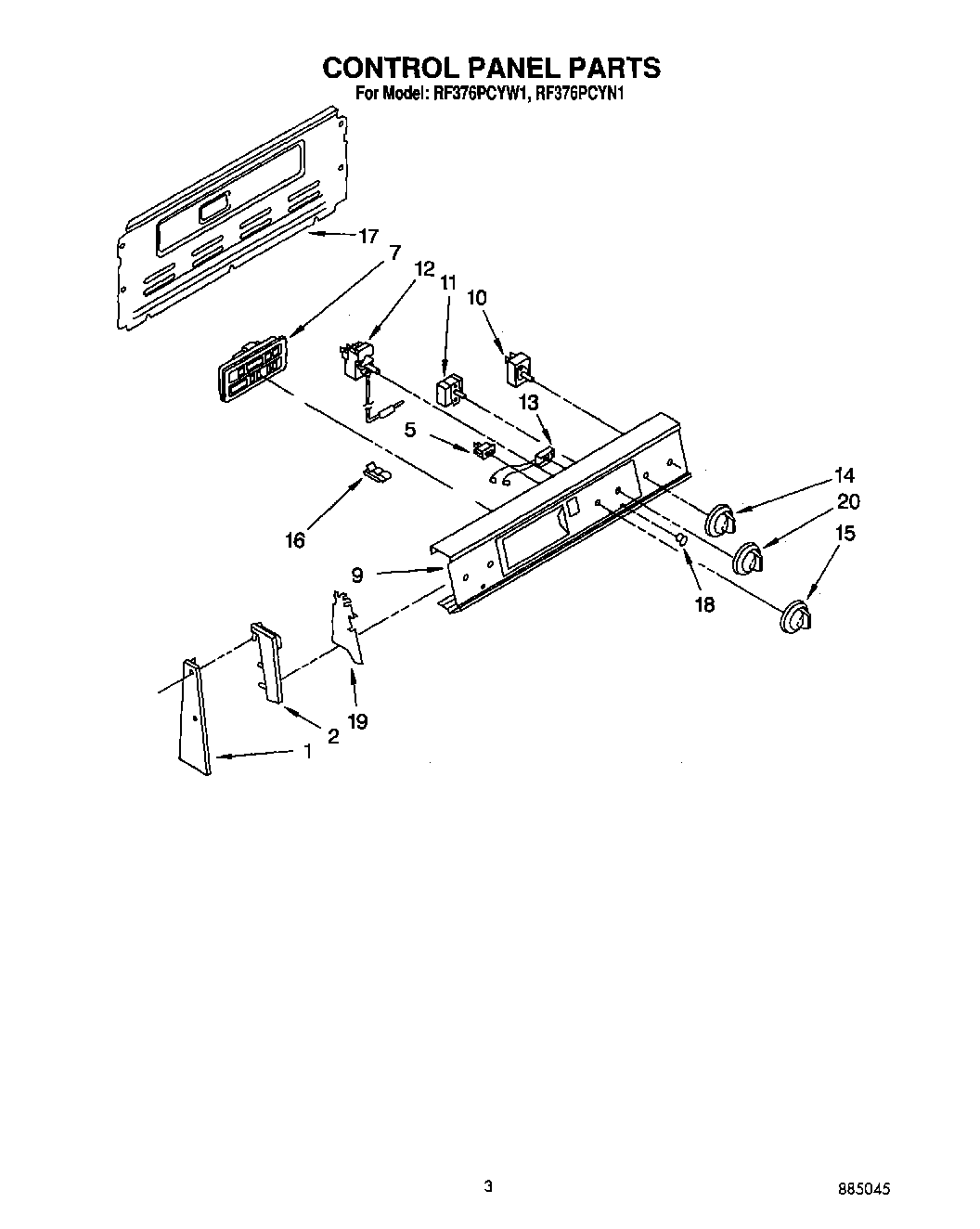

RF376PCYN1 02 – CONTROL PANEL

RF376PCYN1 02 – CONTROL PANEL

Written by

in

RF376PCYN1 02 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×1“
1Screw 10-32×7/16“
2End Cap R.H.
2End Cap L.H.
2Screw,
5Switch, Rocker
7Timer, Electronic
9Washer
9Panel, Control (White/Almond/Black)
10WP3148952 Whirlpool Oven Infinite Switch
10WP3148955 Whirlpool Infinite Switch
10WP486579 Whirlpool Air Conditioner Screw
11Switch, Selector
12Thermostat, Oven
12Thermostat, Oven (Alt.)
12Thermostat, Oven (Alt.)
12WP313808 Whirlpool Screw
13Light, Indicator
13Light, Indicator (250V)
14Knob, (4) Infinite Switch (White/Almond/Gold)
15Knob (Temp) (White/Almond)
16Clip, Tube
17SCREW
17Harness-Conduit Asm.
18Lens, Amber
19Shield (2)
19WP965173 Whirlpool Dishwasher Screw
20Knob (Selector)
