RF376PCYN4 05 – OVEN

RF376PCYN4 05 – OVEN

Written by

in

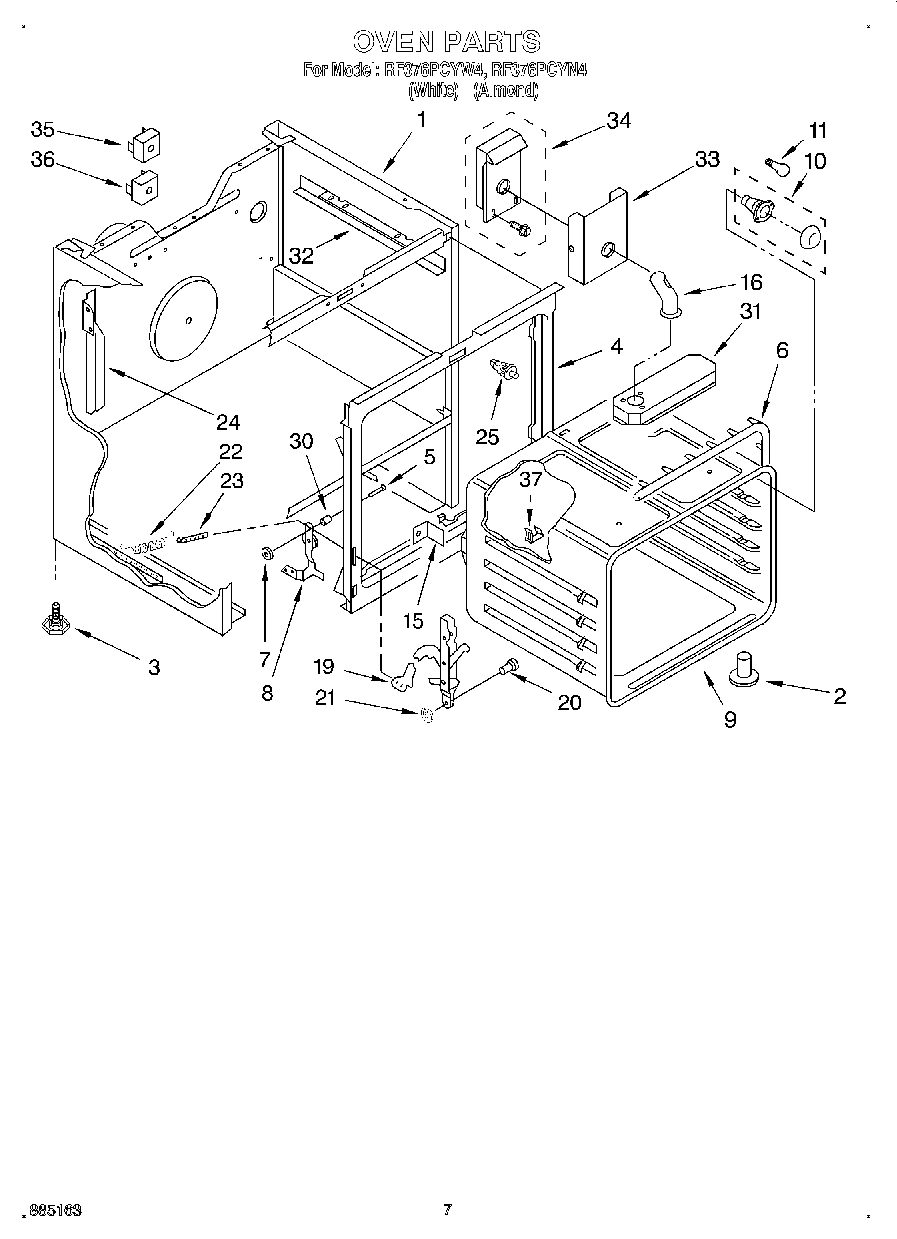

RF376PCYN4 05 – OVEN

Products

PositionProduct
1Main Chassis (White)
1Main Chassis (Almond)
2Screw, 10A x 1/2 (2) (Black)
2Tube, Vent
3WPW10058460 Whirlpool Appliance Levelling Leg
4Front Frame
4Screw (Top)
5Pin, Hinge Ear (2)
6Seal, Door
7Pushnut (2)
8Hinge, R.H.
8Hinge, L.H.
9Oven (30“ Pyro)
9Screw (3)
10W11594027 Whirlpool Range Oven Light Socket
11RANGE ONLY 40W 120V APPL BULB
15Bracket, Oven (Mounting)
16Vent, Oven
16WP965173 Whirlpool Dishwasher Screw
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22WP308126 Whirlpool Door Spring
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24Wire Cover
24Wire Cover-Controls (Right)
25Switch, Door
30Snubber, Door (2)
31Box Vent
31SCREW
32Support, Chassis
32WP3390631 Whirlpool Screw
33Screw (2)
33Shield, Vent
34WP488627 Whirlpool Refrigerator Screw
34Vent, Box
35Sw
36WPL 314215
36Switch, Bake
37WPL 3169093
37WPL 3169094
3798005642 Whirlpool Clip
