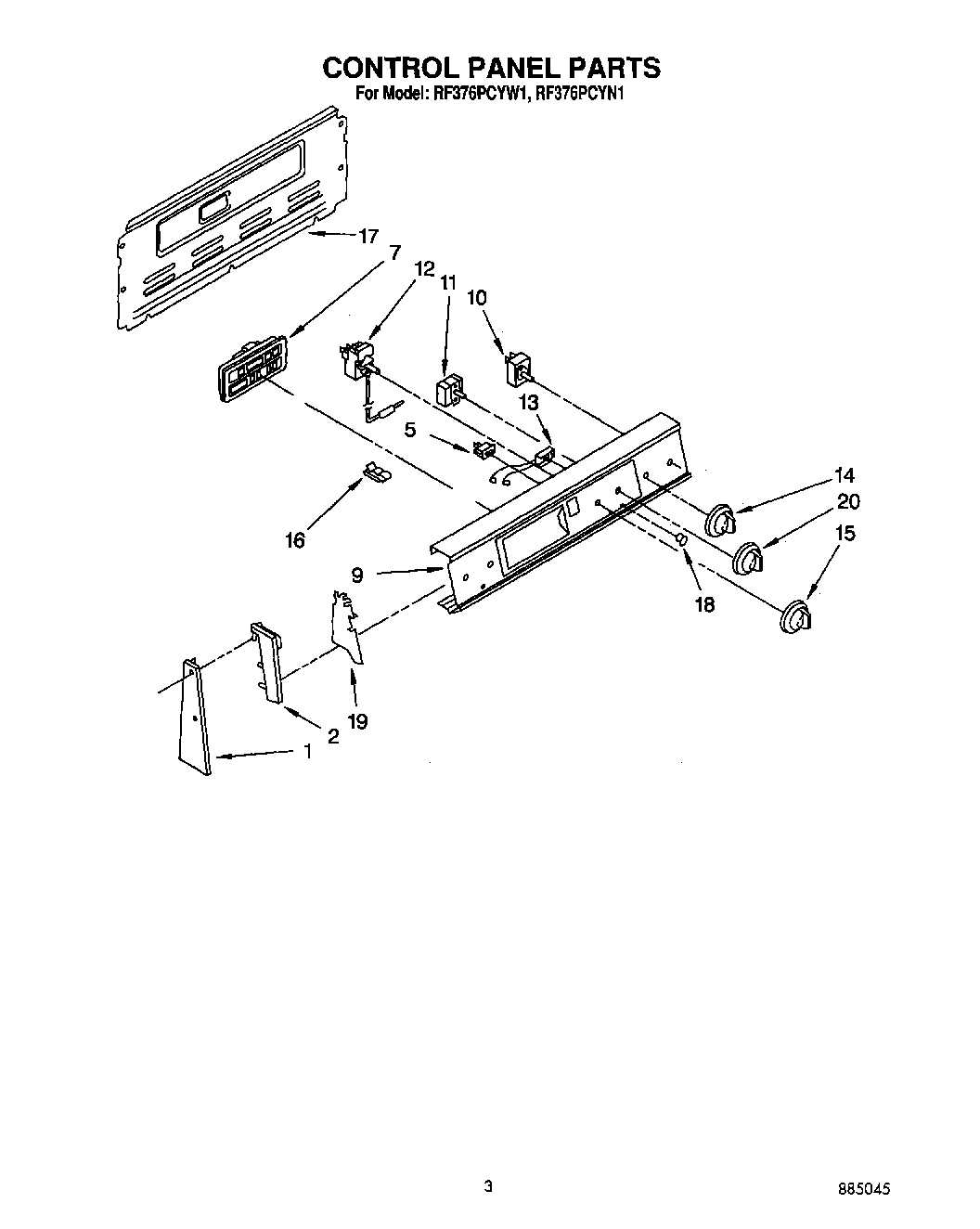

RF376PCYW1 02 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
5	Switch, Rocker
7	Timer, Electronic
9	Washer
9	Panel, Control (White/Almond/Black)
10	WP3148952 Whirlpool Oven Infinite Switch
10	WP3148955 Whirlpool Infinite Switch
10	WP486579 Whirlpool Air Conditioner Screw
11	Switch, Selector
12	Thermostat, Oven
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven (Alt.)
12	WP313808 Whirlpool Screw
13	Light, Indicator
13	Light, Indicator (250V)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob (Temp) (White/Almond)
16	Clip, Tube
17	SCREW
17	Harness-Conduit Asm.
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob (Selector)
