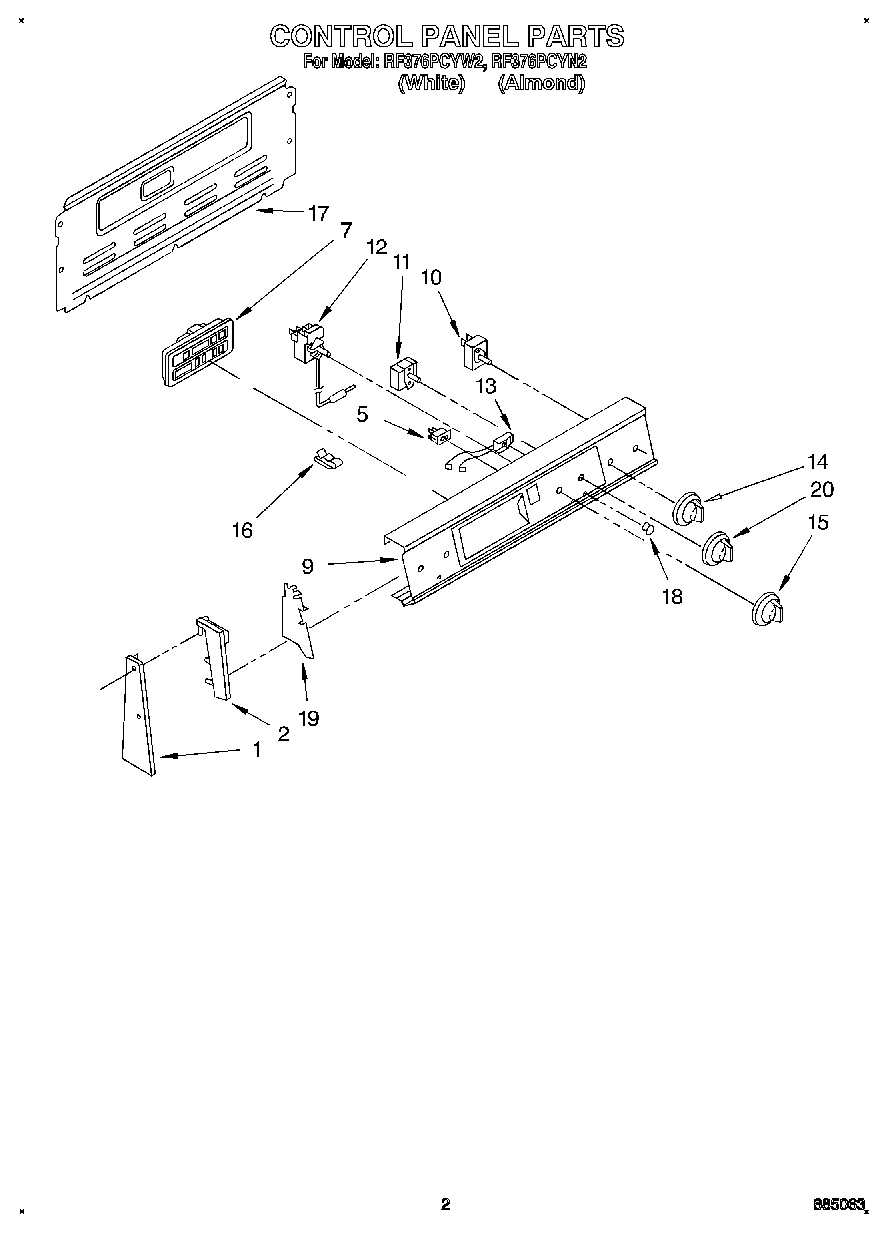

RF376PCYW2 02 – CONTROL PANEL

Products

PositionProduct
1Screw 10-32×1“
1Screw 10-32×7/16“
2End Cap L.H.
2End Cap R.H.
2Screw,
5Switch, Rocker
7Timer, Electronic
9Washer
9Panel, Control (White/Almond/Black)
10WP3148952 Whirlpool Oven Infinite Switch
10Screw, 8-32 x 3/16 (2)
10WP3148955 Whirlpool Infinite Switch
11Switch, Selector
12Thermostat, Oven
12Thermostat, Oven (Alt.)
12Thermostat, Oven (Alt.)
12WP313808 Whirlpool Screw
13Light, Indicator
13Light, Indicator (250V)
14Knob, (4) Infinite Switch (White/Almond/Gold)
15Knob (Temp) (White/Almond)
16Clip, Tube
17SCREW
17Rear Cover Contr
18Lens, Amber
19WP965173 Whirlpool Dishwasher Screw
19Shield (2)
20Knob (Selector)
