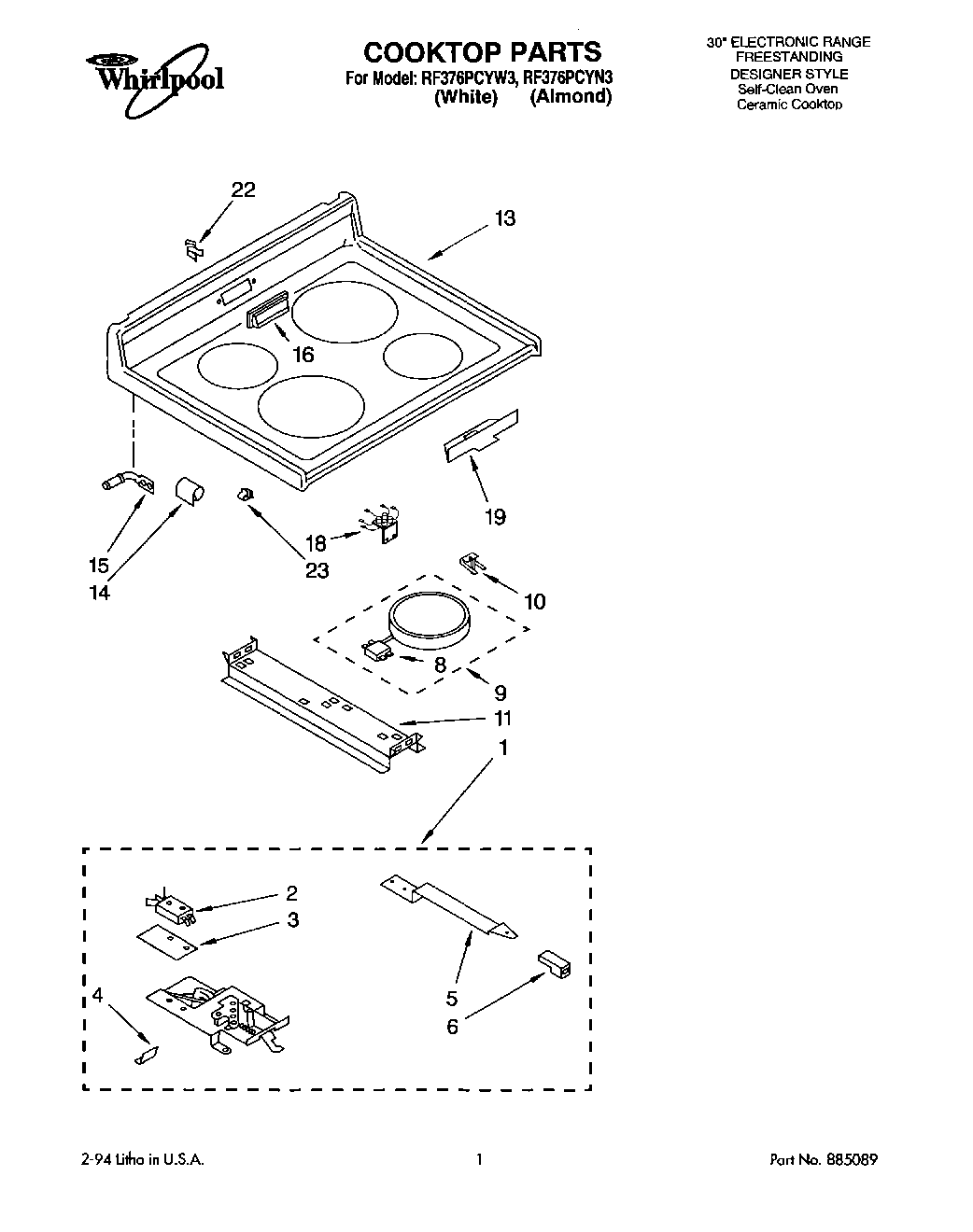

RF376PCYW3 01 – COOKTOP, LITERATURE

Products

Position	Product
	WPL LIT3169368
	WPL LIT3150400
	WPL LIT3187480
	Instructions, Installation
1	Latch Asm Complete W/Wiring Harness
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
8	Limiter, Temperature (Use W/3183648 Element)
8	Limiter, Temperature (Use W/3183649 Element)
8	Limiter Temp. (7“ – RF)
8	Limiter, Temp. (6“ L.R.)
9	Element, Surface (2100W Right Rear)
9	Element, Surface (1700W Right Front)
9	Element, Surface (1400W Left Rear)
9	WP8185663 Whirlpool Surface Element
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
13	Cooktop (White)
13	Cooktop (Almond)
14	Bracket, Cooktop (2)
15	SCREW
15	Pin, Cooktop (2)
16	cover, vent (almond)
16	Cover, Vent (White)
16	Screw (2)
18	Hot Light Assembly
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
