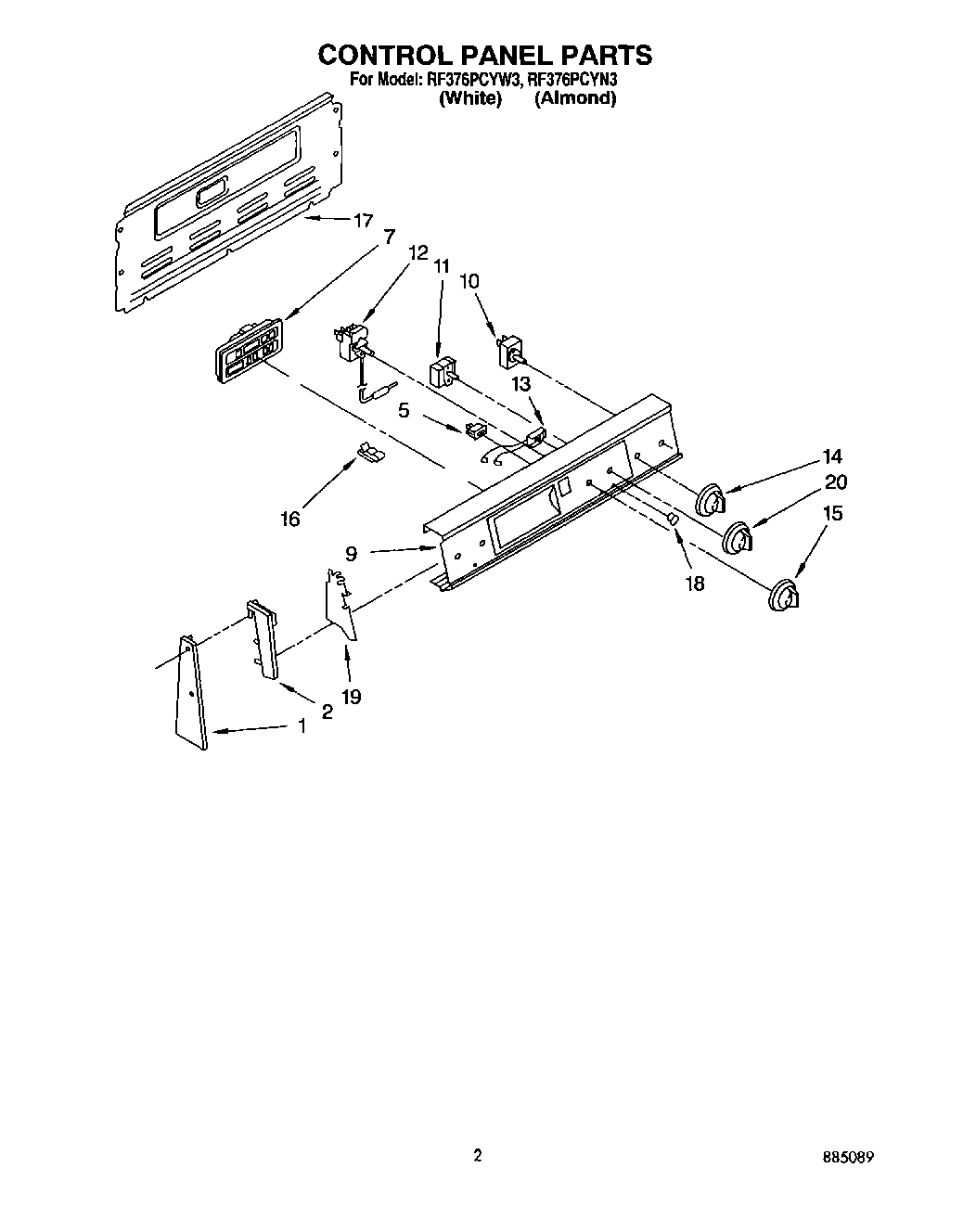

RF376PCYW3 02 – CONTROL PANEL

Products

Position	Product
	WP313808 Whirlpool Screw
1	Screw 10-32×1“
1	Screw 10-32×7/16“
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
5	Switch, Rocker
7	Timer, Electronic
9	Washer
9	Panel, Control (White/Almond/Black)
10	Screw, 8-32 x 3/16 (2)
10	WP3148952 Whirlpool Oven Infinite Switch
10	WP3148955 Whirlpool Infinite Switch
11	Switch, Selector
12	Thermostat, Oven
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven (Alt.)
13	Light, Indicator
13	Light, Indicator (250V)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob (Temp) (White/Almond)
16	Clip, Tube
17	SCREW
17	Rear Cover Contr
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob (Selector)
