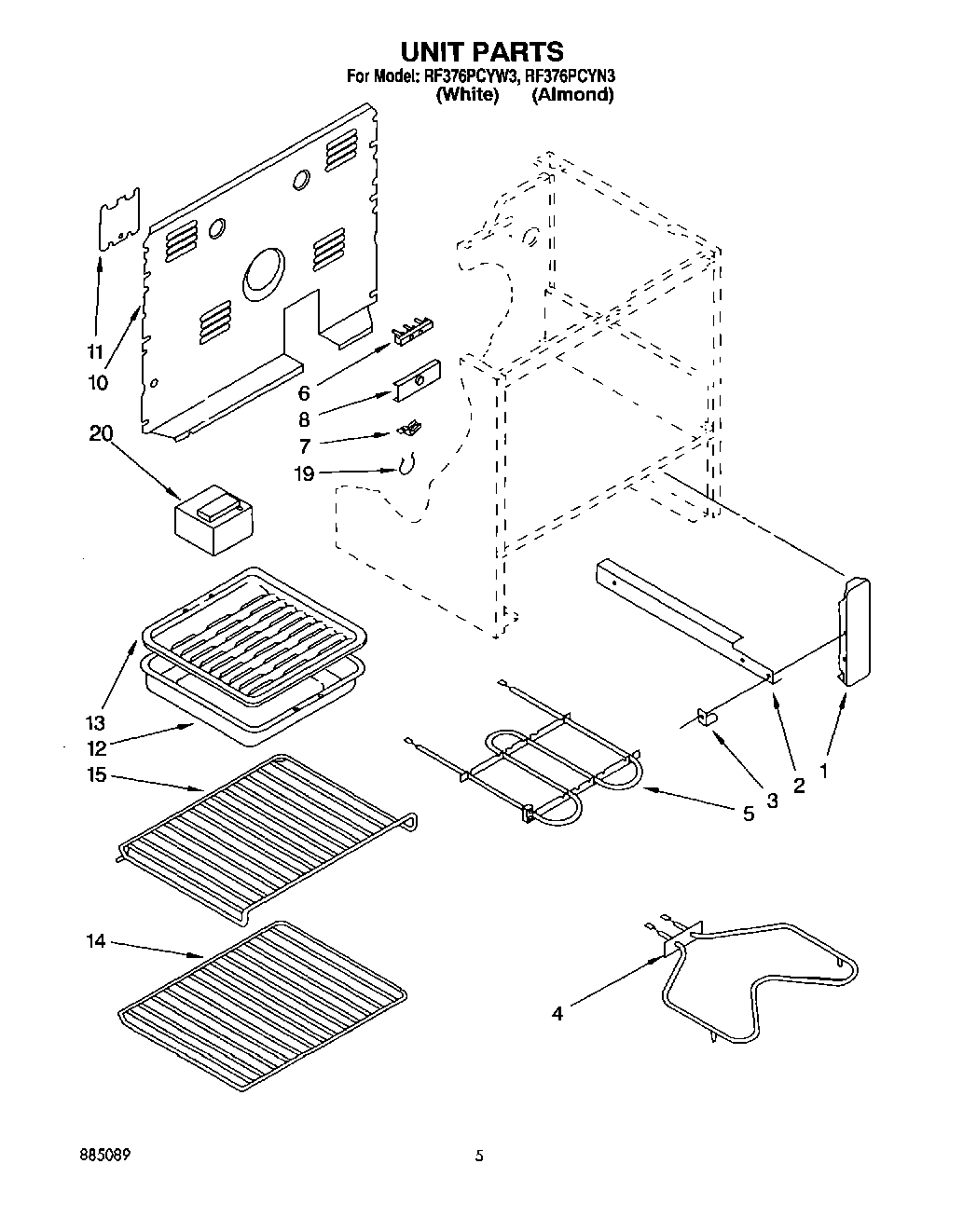

RF376PCYW3 04 – UNIT

Products

PositionProduct
Screw (2)
1Bracket, Mounting (2)
2Rail R.H. (Includes Illus. 3)
2Screw, 10A x 1/2 (2) (Black)
2Rail L.H. (Includes Illus. 3)
3Glide, Front (2)
4ELMNT-BAKE
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6WP112432 Whirlpool Nut Assembly
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
7Clip, Ground Wire
7WPL 308498
8Bracket, Service
10Cover, Rear
11Cover, Service
11SCREW
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WPL 308172
1916515 Whirlpool Clip
20340184 Whirlpool Screw
208273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20WA906B Whirlpool Cooktop Glass Scraper
20Block, Balance
