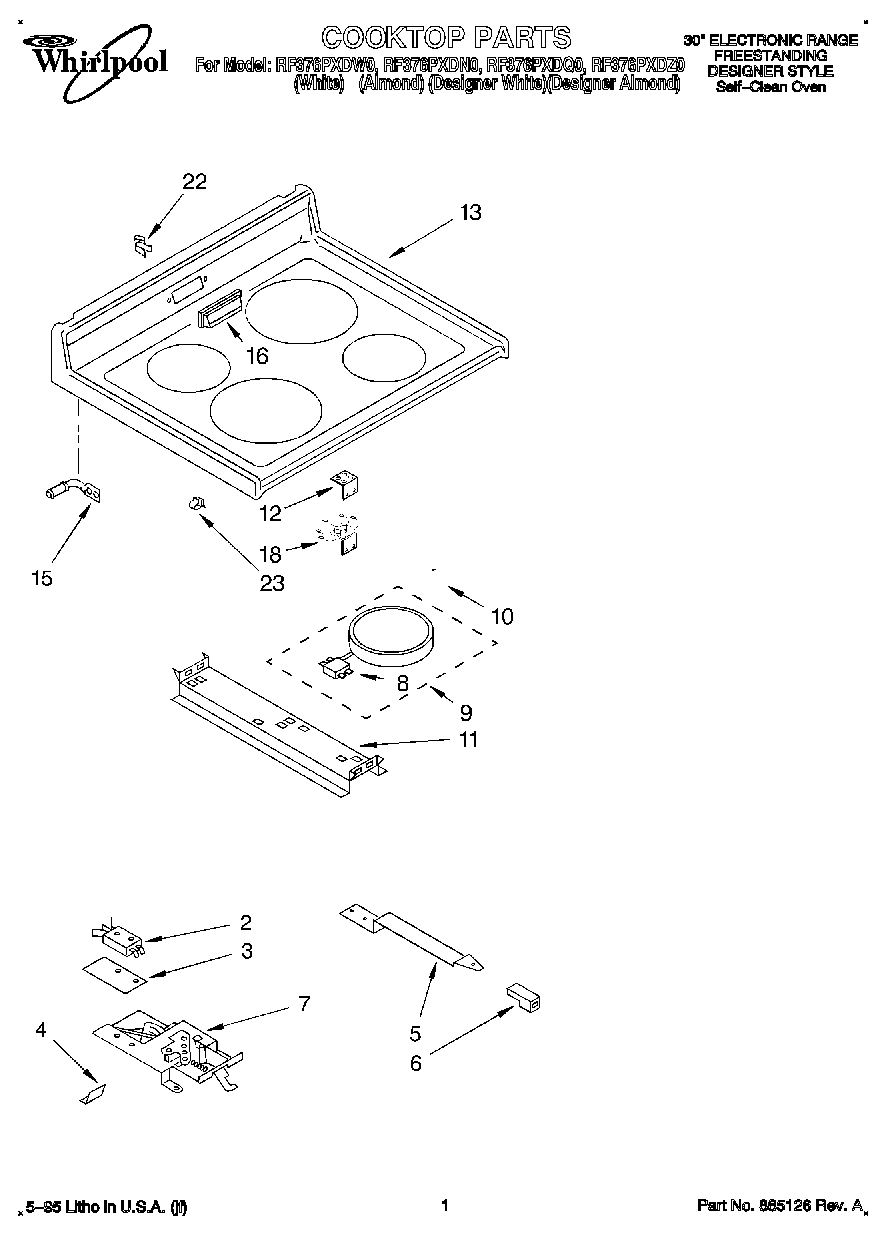

RF376PXDZ0 01 – COOKTOP

Products

Position	Product
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	Designer Almond
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
7	Latch Mechanism
8	Switch, Limit (Use W/3183200 Element)
8	Limiter, Temp. (2100W, LF-RR)
8	Limiter, Temp. (2400W – LF)
8	Switch, Limit (Use W/3183584 Element)
9	WP8185663 Whirlpool Surface Element
9	Element, Surface (1400W Left Rear)
9	Element, Surface (1700W Right Front)
9	Element, Surface (2100W Right Rear)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
12	Bracket, Light
13	Cooktop (Almond)
13	Cooktop (Designer White)
15	SCREW
15	Pin, Cooktop (2)
16	Cover, Vent (White)
16	cover, vent (almond)
18	Screw (2)
18	WPL 3169395
22	Clip, Vent Cover
23	WA906B Whirlpool Cooktop Glass Scraper
23	Clip
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
