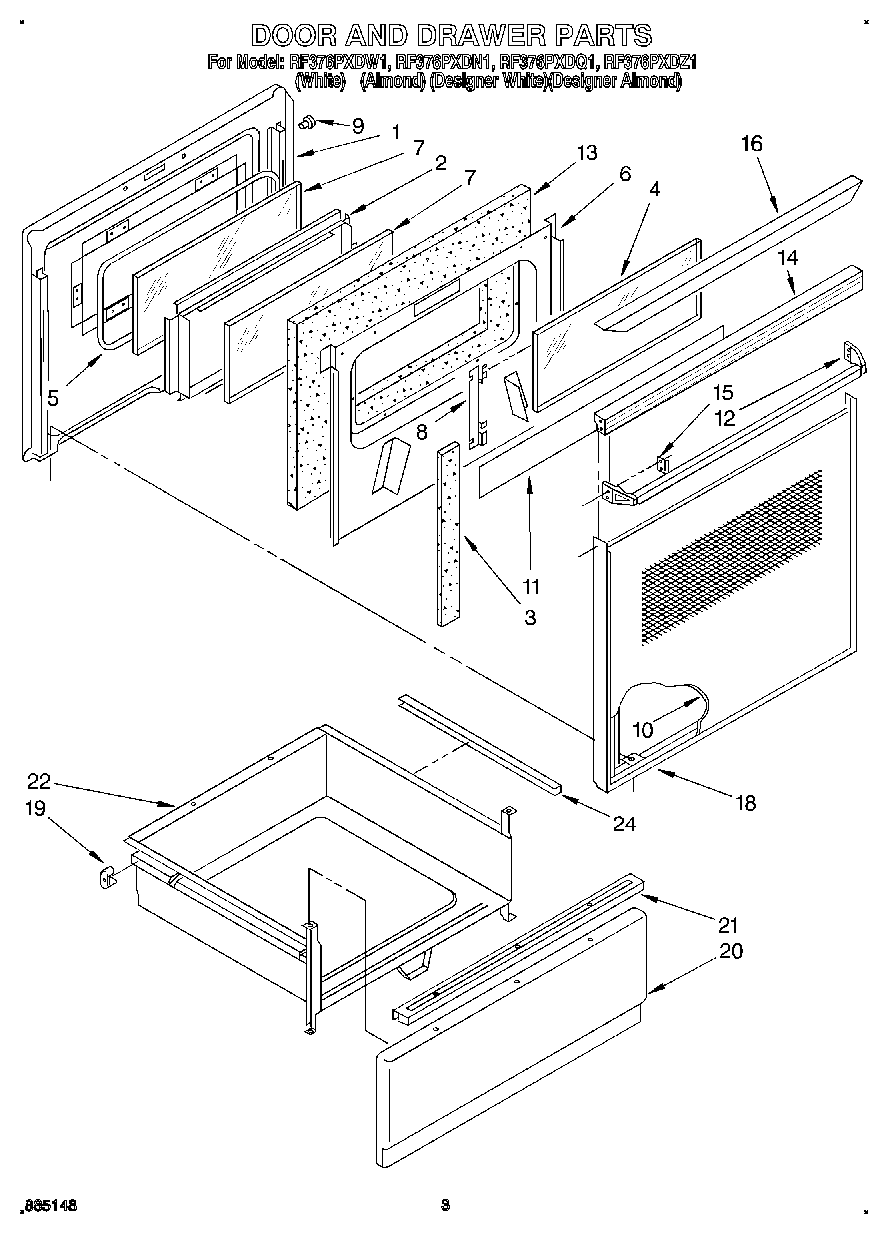

RF376PXDZ1 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Screw
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass Panel, Outer (Black)
10	Glass Panel, Outer (White)
10	Glass Panel, Outer (Almond)
11	Foil, Door
12	Handle, Door (Almond)
12	Handle, Door (Black)
12	WP999367 Whirlpool Refrigerator Screw
12	Handle, Door (White)
13	Insulation, Door
14	Top, Door Frame (Designer Almond)
14	Top, Door Frame (Designer White)
14	Top, Door Frame (Black)
15	Clip, Mtg (2)
16	Cap, Top (Designer White)
16	Cap, Top (Designer Almond)
16	Top, Door Frame (Screw (2))
16	Top, Door Frame (Screw (2))
18	Frame, Door (Almond)
18	Handle, Door (Screw (4))
18	Handle, Door (Screw)
18	Screw
18	Frame, Door (Screw (4))
18	Back Splash (Screw (4) 10AB x 1/2“)
18	Frame, Door (White)
18	Frame, Door (Black)
19	Glide, Rear (2)
20	WP488627 Whirlpool Refrigerator Screw
20	Panel Drawer (White)
20	Panel Drawer (Almond)
21	Handle, Drawer (Almond)
21	Handle, Drawer (White)
22	Drawer, Utility
24	Protector, Drawer (2)
