RF376PXEW0 01 – COOKTOP, LITERATURE

RF376PXEW0 01 – COOKTOP, LITERATURE

Written by

in

RF376PXEW0 01 – COOKTOP, LITERATURE

Products

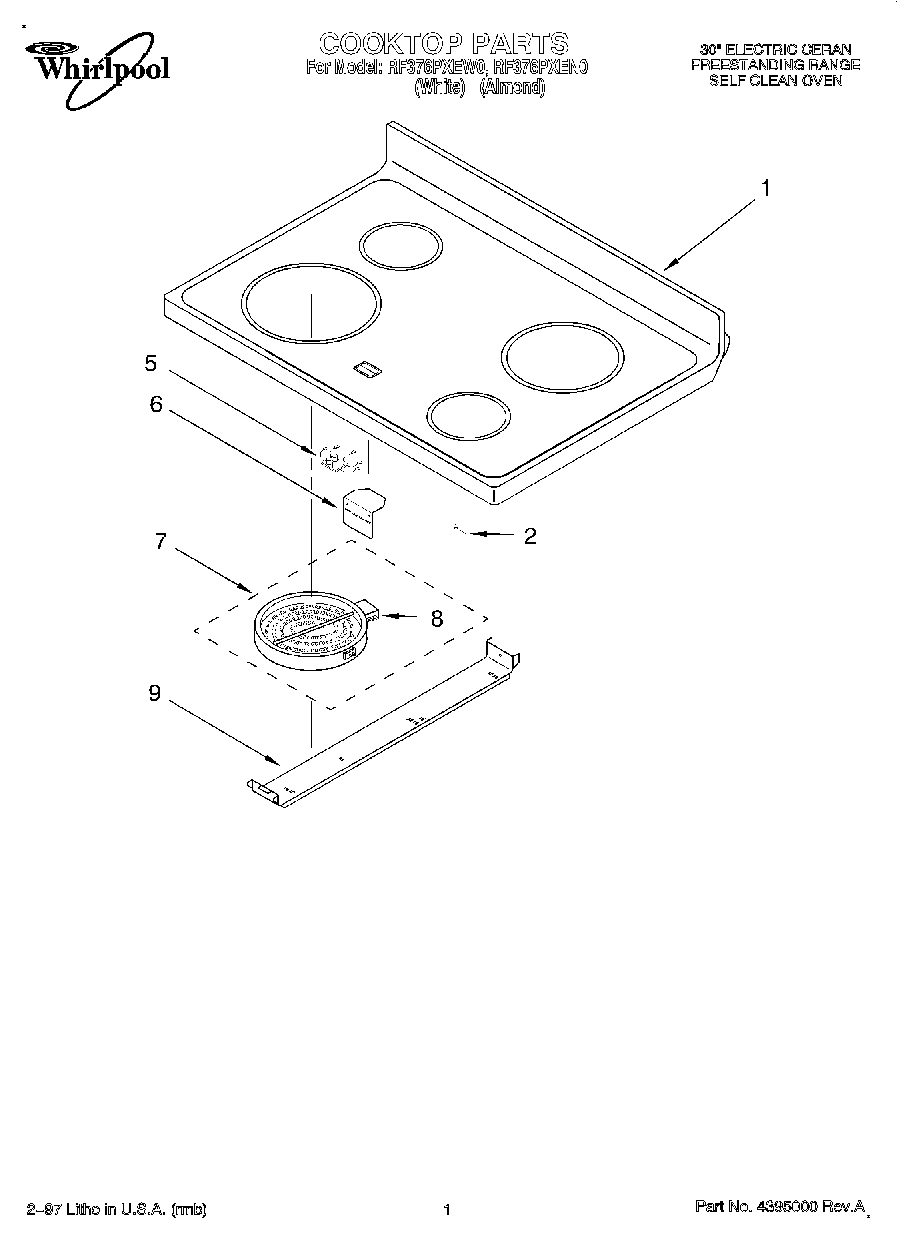

PositionProduct
WPL LIT3196134
WPL LIT3195944
WPL LIT3196277
Literature (Installation, Instructions (Template))
1Cooktop (White)
1Cooktop (Almond)
2WP3196170 Whirlpool Screw
2Spring, Locator
5Light, Indicator (Hot Surface)
6Bracket, Ind Light
7W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
7Element, Surface (7“ R.F. 1700W)
7Element, Surface (9“ L.F. 2400W)
8Switch, Limiter (Use W/3189893 Element)
8Limiter, Temp (1700W – RF)
8Limiter, Temp. (2400 W – LF)
9Bracket, Element
9WP3196175 Whirlpool Screw
