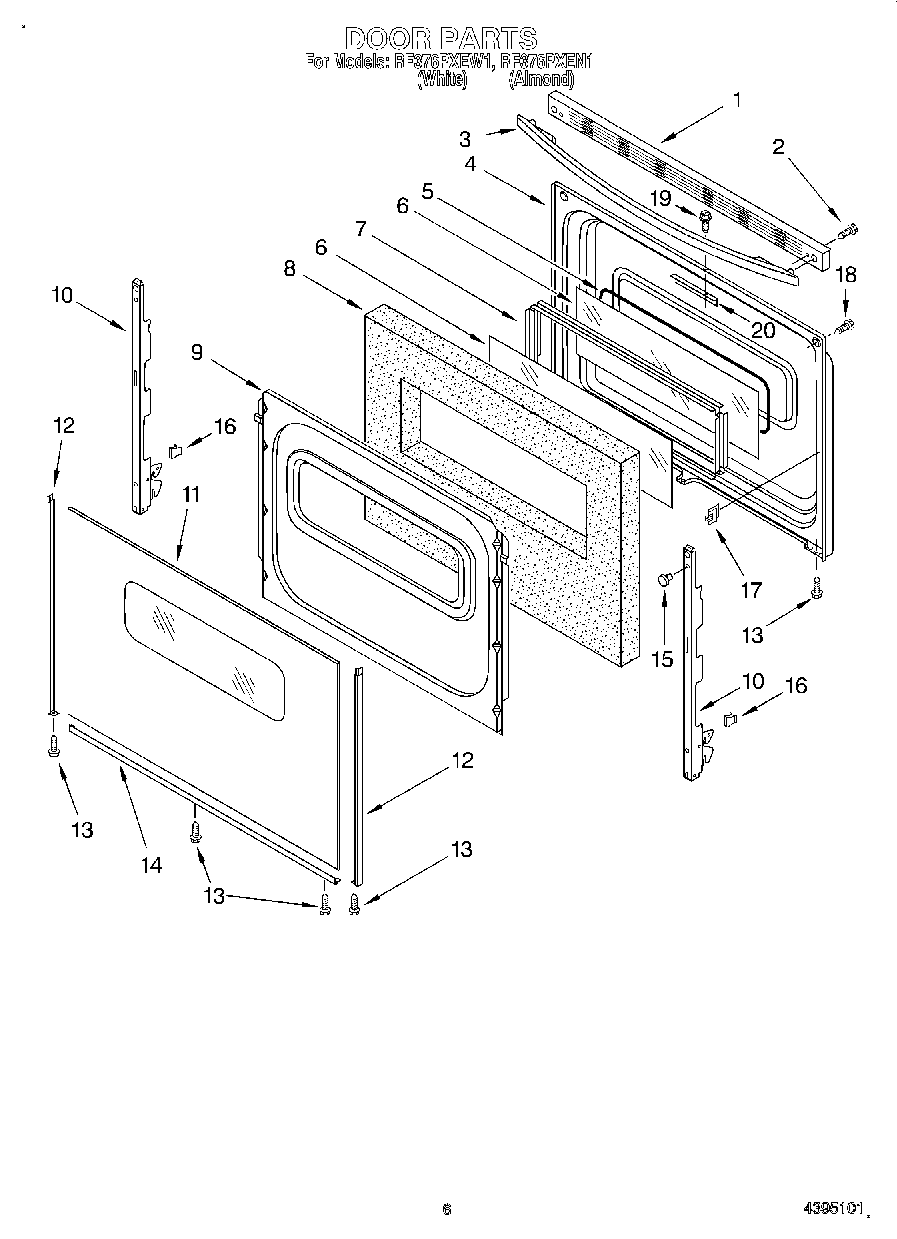

RF376PXEW1 05 – DOOR, LIT/OPTIONAL

RF376PXEW1 05 – DOOR, LIT/OPTIONAL

Written by

in

RF376PXEW1 05 – DOOR, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3196277
	Harness, Wire (Door Switch)
	Harness, Wire (Oven Light)
	WP3196154 Whirlpool Screw Assembly
	3196696 Whirlpool Clip
	WPL 8053721
	3184020 Whirlpool Oven Wire
	Literature (Installation, Instructions (Template))
	Safer Cooking Tips
	3400964 Whirlpool Oven Clip
	814381 Whirlpool Pin
	WPL LIT3195944
	WPL 3196139
	WPL LIT3196134
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	8522415 Whirlpool Oven Wind Gasket
6	WP9758164 Whirlpool Door Glass
7	Frame, Glass
8	Insulation, Door
9	9761499 Whirlpool Oven Retainer
10	WP8053807 Whirlpool Oven Door Hinge
11	WP9762477 Whirlpool Glass Door
13	W10491985 Whirlpool Screw
14	8184858 Whirlpool Door Trim
15	238614 Whirlpool Bumper Hinge
16	WP3196925 Whirlpool Clip Assembly
17	Clip, Glass (4)
18	WP179051 Whirlpool Screw
20	Wire (14 Ga. 200 c Brown)
20	1
20	18 Ga. 80~c Rating (Red)
20	Wire (12 Ga. 150 c Black)
20	WP3400832 Whirlpool Screw
20	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
20	8212471 Whirlpool Oven Paint
20	Bracket, Latch
20	72113 Whirlpool Touch-Up Paint
20	Grease
20	Wire (14 Ga. 150 c Yellow)
20	Wire (14 Ga. 150 c Orange)
20	350942 Whirlpool Spray Paint
20	WPL 72112
20	Platinum (Uncut)
20	Enamal, Toast (1 Qt. Uncut)
20	Paint, Spray (13 Oz.) (Platinum)
20	Toast
20	Golden Harvest (Uncut)
20	Golden Harvest
20	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
20	Almond (Uncut)
20	WP72107 Whirlpool Touchup
20	799344 Whirlpool Refrigerator Paint
20	72017 Whirlpool Appliance Touch-Up Paint White
20	350956 Whirlpool Spray Assembly
20	511873 Whirlpool Refrigerator Paint
20	WPL 799832
20	WPW10208653 Whirlpool Insulation
20	Wire (14 Ga. 150 c Green)
20	Wire (14 Ga. 150 c Brown)
20	Wire (14 Ga. 150 c Blue)
20	242831 Whirlpool Oven Wire
20	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
20	Paint, Spray 13 Oz. (Avocado)
20	paint, spray 13 oz. (coffee)
20	Paint, Touch-Up 1/2 Oz. (Coffee)
20	72109 Whirlpool Dacor Avocado Touch-Up Paint
20	285006 Whirlpool Spray
20	Wire, 25“ Roll (White 14 GA.)
20	Wire, 25` Roll (Red 14 Ga.)
20	Wire, 25` Roll (Black 14 Ga.)
20	FOIL, ALUMINUM OVEN (18“ X 25 )
20	350930 Whirlpool White Spray Paint
