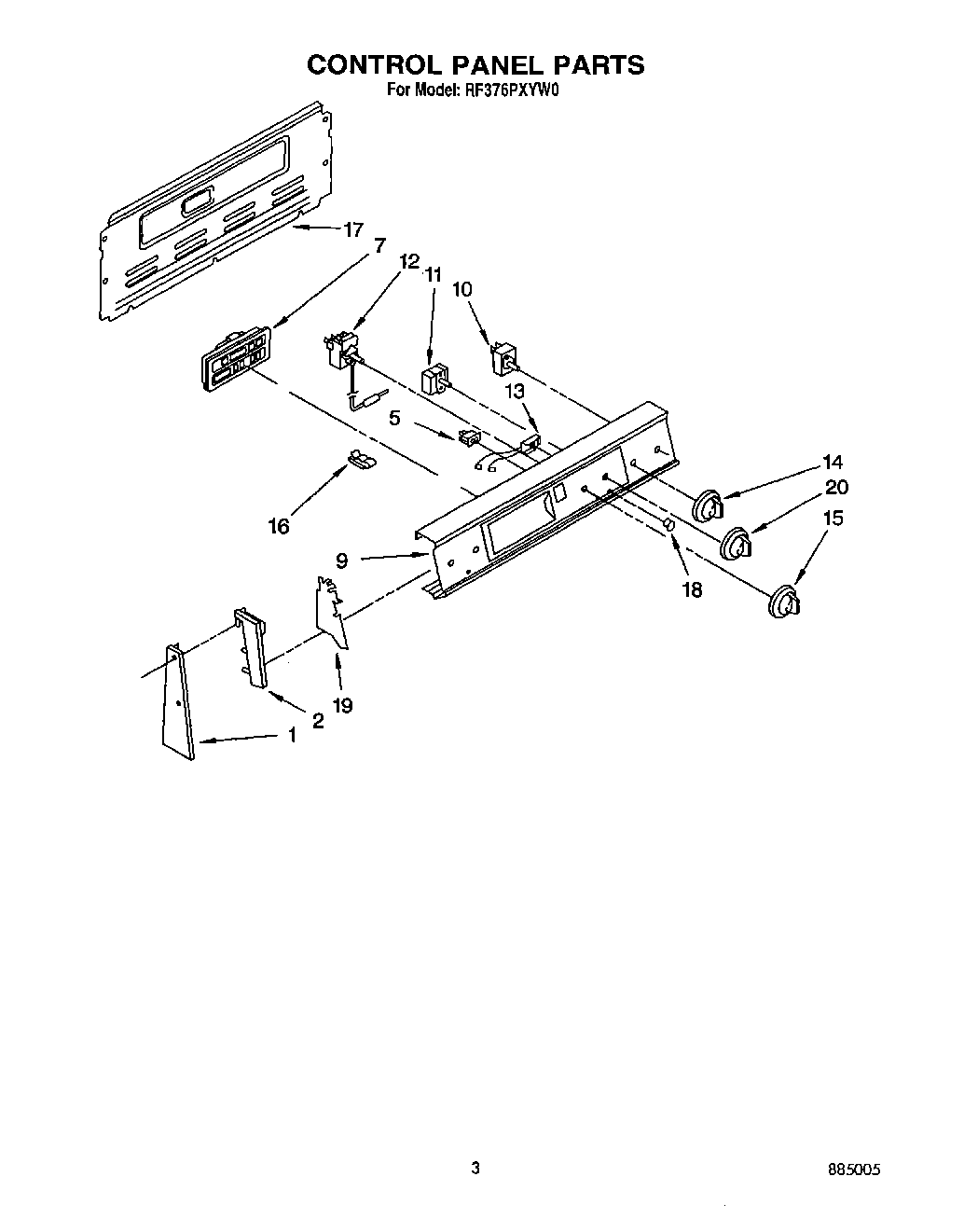

RF376PXYB0 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap R.H.
2	End Cap L.H.
2	Screw,
5	Switch, Rocker (White)
5	Switch, Rocker
7	Timer, Electronic
7	Designer White Mdl
9	Panel, Control (White/Almond/Black)
9	Panel, Control (Designer White)
9	Washer
10	WP3148955 Whirlpool Infinite Switch
10	WP3148952 Whirlpool Oven Infinite Switch
10	WP486579 Whirlpool Air Conditioner Screw
11	Switch, Selector
12	Thermostat, Oven (Alt.)
12	WP313808 Whirlpool Screw
12	Thermostat, Oven (Alt.)
12	Thermostat, Oven
13	Light, Indicator (250V)
13	Light, Indicator
14	Knob, (4) Infinite Switch (Designer Mdl)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Knob (Temp) (White/Almond)
15	Designer White Mdl
16	Clip, Tube
17	SCREW
17	Harness-Conduit Asm.
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob (Selector)
20	WPL 3183116
