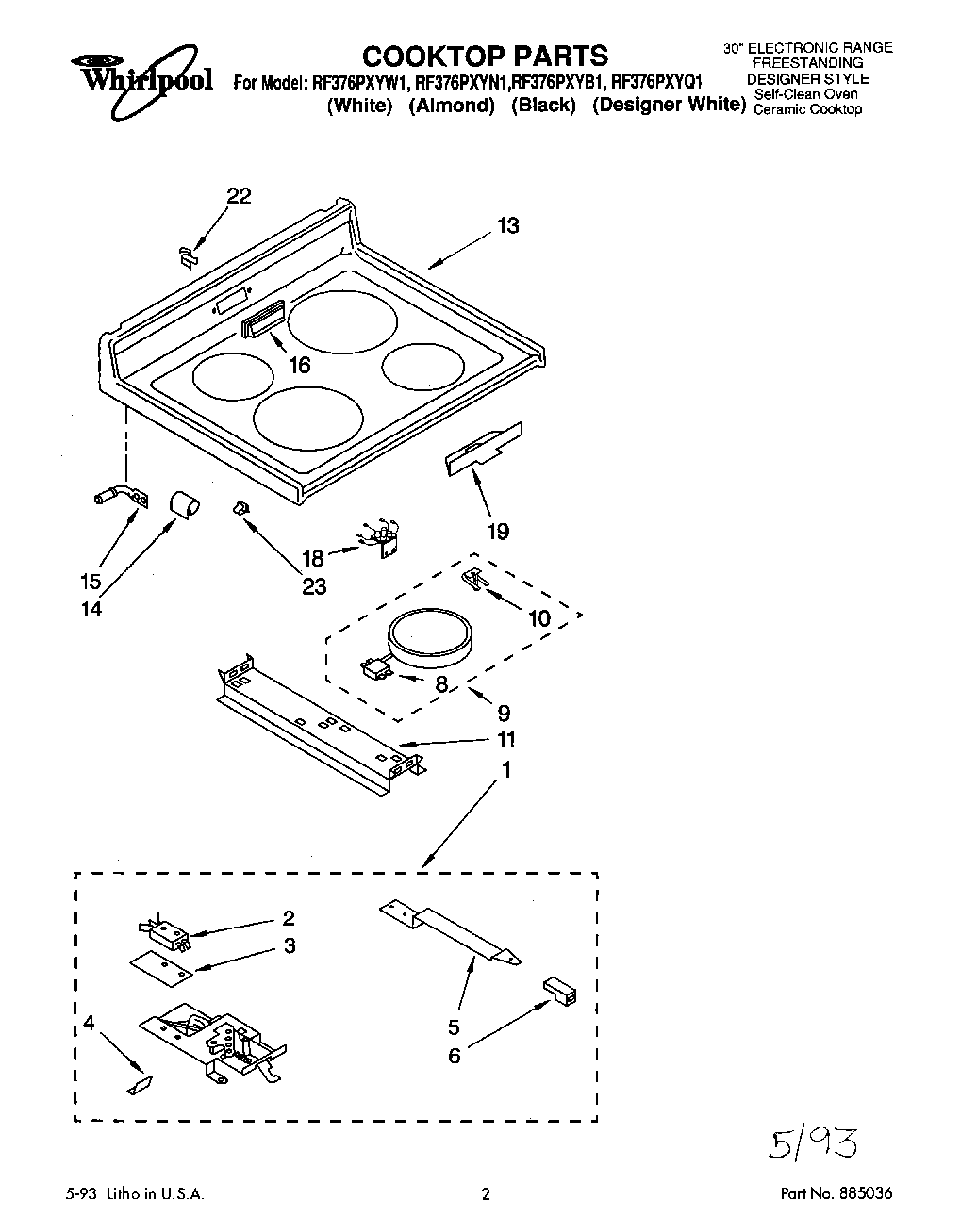

RF376PXYB1 01 – COOKTOP

Products

Position	Product
1	Latch Asm Complete W/Wiring Harness
1	Designer White Mdl
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Handle, Latch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
8	Limiter, Temperature (Use W/3183649 Element)
8	Limiter Temp. (7“ – RF)
8	Limiter, Temp. (6“ L.R.)
8	Limiter, Temperature (Use W/3183648 Element)
9	Element, Surface (Includes No.1) (230 MM – (2))
9	Element, Surface (Includes No.1) (200 MM – (2))
9	Element, Surface (Includes No.8) (180 MM – LR)
9	WP8185663 Whirlpool Surface Element
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Bracket, (2) Element Support
13	Cooktop (Black)
13	Cooktop (Designer White)
13	Cooktop (Almond)
13	Cooktop (White)
14	Bracket, Cooktop (2)
15	Pin, Cooktop (2)
15	SCREW
16	cover, vent (almond)
16	Cover, Vent (Black)
16	Cover, Vent (White)
18	Screw (2)
18	Hot Light Assembly
19	Shield, Probe
22	Clip, Vent Cover
23	Clip
